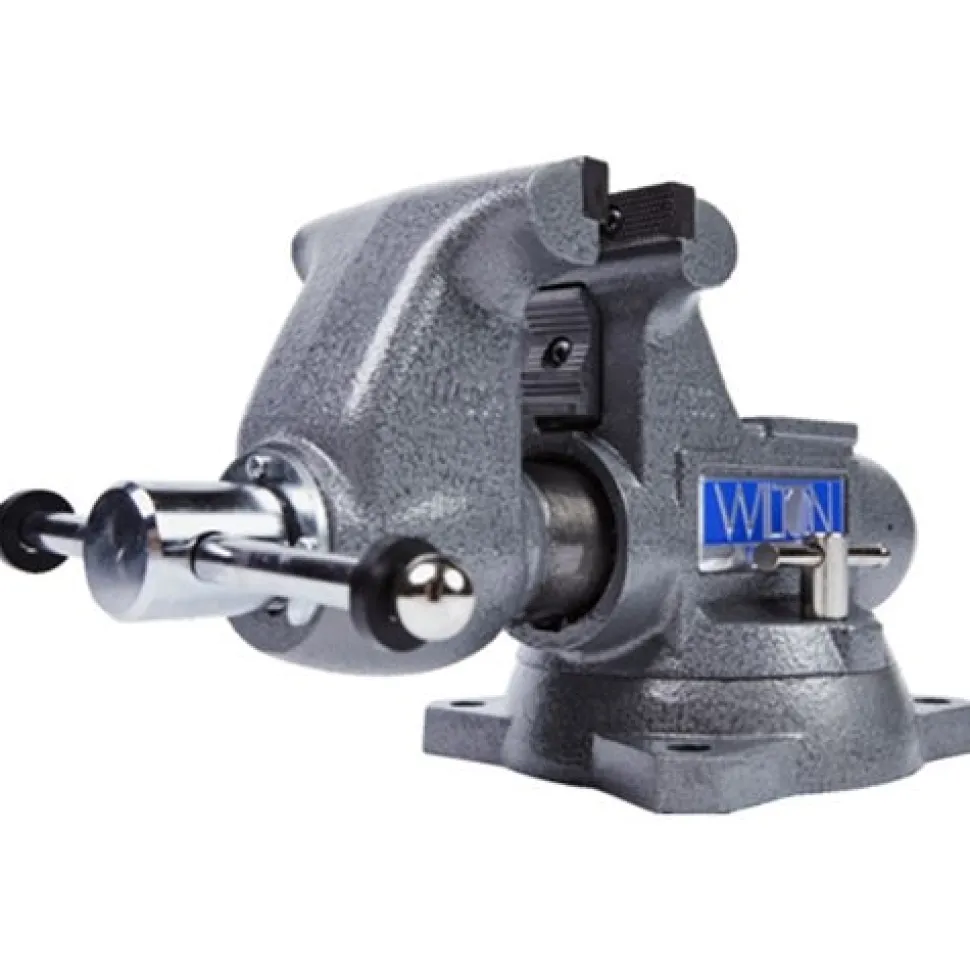

Wilton Tradesman 1745 Vise; 4-1/2″ Jaw Width; 3-1/2″ Jaw Opening; 3-1/4″ Throat Depth 28805

Wilton

Tradesman 1745 Vise; 4-1/2 Jaw Width; 3-1/2″ Jaw Opening; 3-1/4″ Throat Depth 28805

The Tradesman round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Tradesman round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility; the Tradesman vise is equipped with main jaws; pipe jaws and a machined anvil work surface.

FEATURES:

• Enclosed design keeps lubrication in and contaminants out for a lifetime of smooth operation
• Redesigned spindle assembly improves overall product life and durability
• Precision slide bar eliminates movement in the front jaw regardless of opened distance
• Machined steel serrated jaws with phosphate coating provide increased durability and an extended life of use
• Reversible jaw inserts are serrated on one side for extra grip and smooth on the other to prevent marring on softer surfaces
• 60;000 PSI ductile iron body; jaw and base is virtually indestructible with 2X the strength of grey cast iron
• Longer spindle nut ensures smooth movement and a stronger straight-line pull
• Large anvil designed to take a beating while forming and shaping materials

SPECIFICATIONS:

Type	Tradesman
Jaw Width (In.)	4-1/2
Opening Capacity Max (In.)	3-1/2
Throat Depth (In.)	3-1/2
Pipe Jaw Capacity (In.)	1/4 — 3-1/2
Type of Base	360 Degree Swivel
Number of Mounting Points	4
Jaw Depth (In.)	1/2
Jaw Height (In.)	3/4

“
