Werner

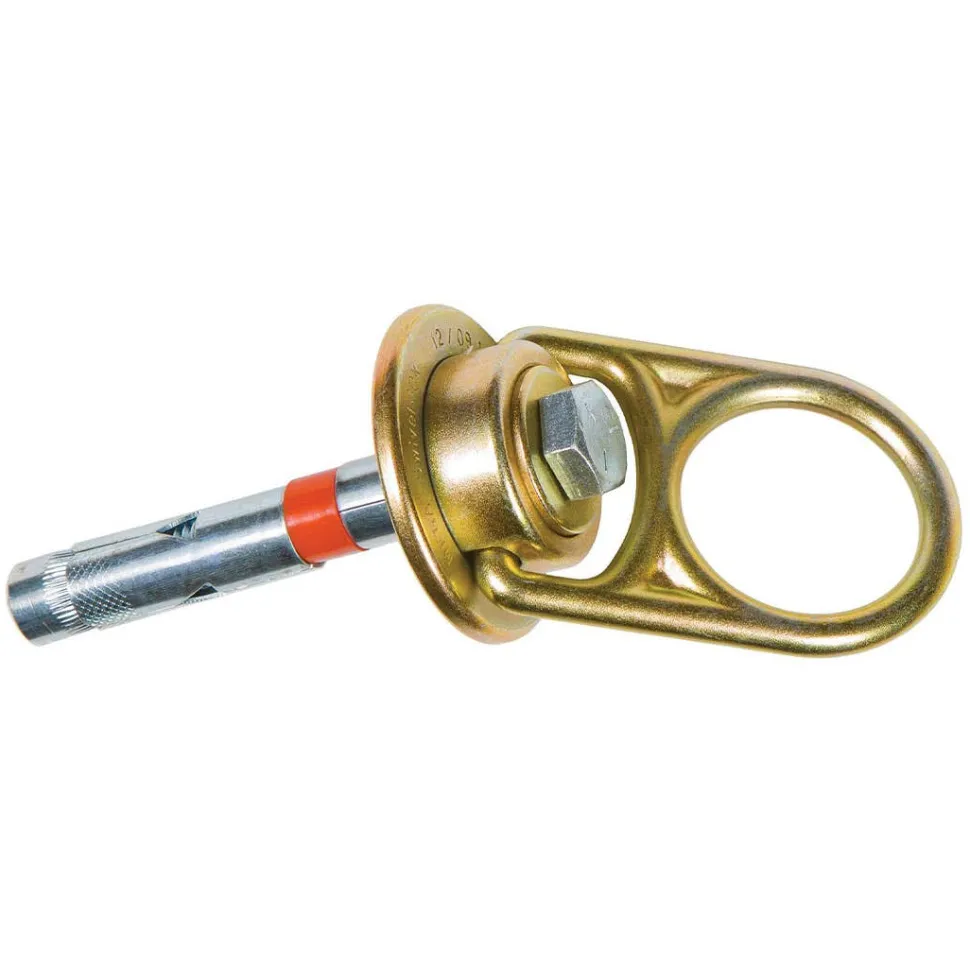

10K Mega-Swivel Concrete Anchorage Connector A510001
The WERNER A510001 10K Mega-Swivel Steel Anchor is a robust anchorage bolt for use in concrete applications. The bolt requires a pre-drilled hole of 3/4 inch and 5 inches depth in 3000 psi concrete with minimum concrete thickness of 7 inches. The D-ring swivel provides a full range of motion at the anchorage.
FEATURES:
- Robust steel design with 360 degree swivel of the forged D-ring.
- Drill hole of 3/4 inch with 5 inch depth.
- Minimum 3000 psi concrete and 7 inch thickness.
- Minimum Breaking Strength (MBS): 10,000 pounds.
- Zinc plated steel, forged D-ring.
- Meets ANSI and OSHA Standards.
SPECIFICATIONS:
| Anchor Application | Concrete |
|---|---|
| Style | D-Bolt |
| Color | Gold |
| Permanent/Temporary | Temporary |
| Material | Steel |
| Family | Mega-Swivel |
| Certifications | ANSI Z359.18-2017, OSHA 1910 & 1926 |
| Style | Concrete Bolt |
|---|---|
| Application (General (all purpose), Steel, Concrete, Roof) | Concrete |
| Material | Steel |
| Permanent/Temporary | Temporary |
| OPT SKU | WERN-A510001 |
|---|---|
| MPN | A510001 |
| UPC/GTIN | 051751114690 |
| Product Type | Anchor Points & Connectors |
| Google Category | Business & Industrial > Work Safety Protective Gear > Work Safety Tethers |
| Shipping Weight | 2.20 |
