Tempo Communications Tracker 2 Cable Locator 501

Tempo Communications

Tracker 2 Cable Locator 501

With its inductive signal detection; the TEMPO Communications Tracker II can be used on active or dead systems. Now you can trace the path and determine the depth of buried wires; cables; and metallic pipes or conduit and find the ends of a cut cable without having to deactivate the systems.

FEATURES:

• Trace the path and determine the depth of buried conductors.
• Use on active or dead systems.
• Transmitter output and receiver sensitivity are both fully adjustable for maximum accuracy.
• The lightweight receiver provides both audible and visual indications of signal strength for accurate identification.
• The transmitter offers three methods of connection: direct; inductive coupler; or inductive antenna.
• Inductive coupler clamps around the wire or pipe for use on active lines; or where isolating the line is not an option.
• Inductive antenna is built into the case housing and allows the transmitter to be placed on the ground over the wire path to radiate a signal down onto the conductor.
• Traces over distances to 4;000 feet (1.2 km) and depths to 7 feet (2.2 m).
• Adjustable sensitivity and transmitter power.
• Battery-operated (8 – AA and 1 – 9V NOT included).

SPECIFICATIONS:

Automatic Shut Off	90 MINT Transmitter And Receiver
Battery Life	Transmitter – 30 HR Nominal
Receiver – 10 HR Nominal
Construction	Transmitter/Receiver-Powder Coated Aluminum
	Case-Vacuum Formed Polyethylene
Dimensions	33.50″ X 8.250″ X 3.750″
Power Requirement	Transmitter – (8) AA batteries
	Receiver – (1) 9V battery
Transmitter Frequency	447.5 KHZ
Transmitter Power	40 Vp-p (140 MILW) Maximum
Voltage Protection	240 VAC/500 VDC

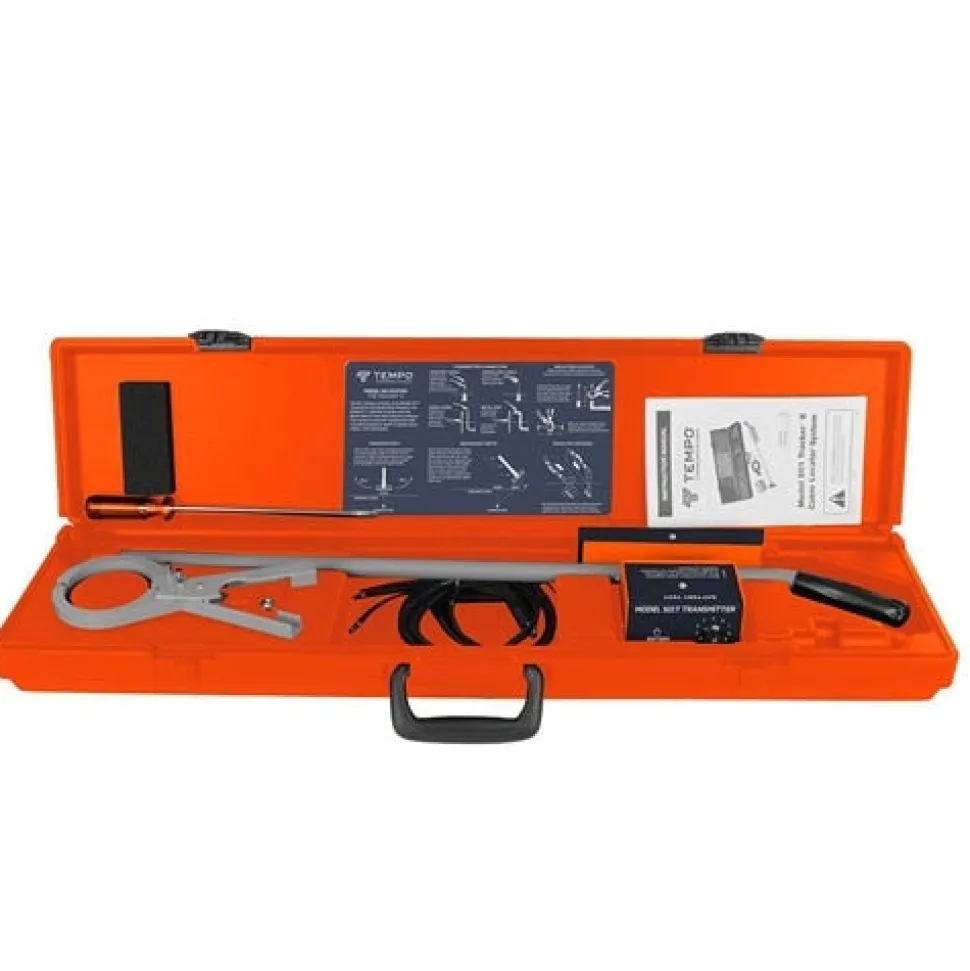

INCLUDES:

• (1) Transmitter assembly
• (1) Receiver assembly
• (1) Inductive coupler (clamp)
• (10 Inductive antenna (built-in)
• (1) Durable polyethylene case
• (2) 8 foot (2.4 m) test leads with heavy-duty alligator clips

“
