Stabila 72″ Level Type 196 STA37472

Stabila

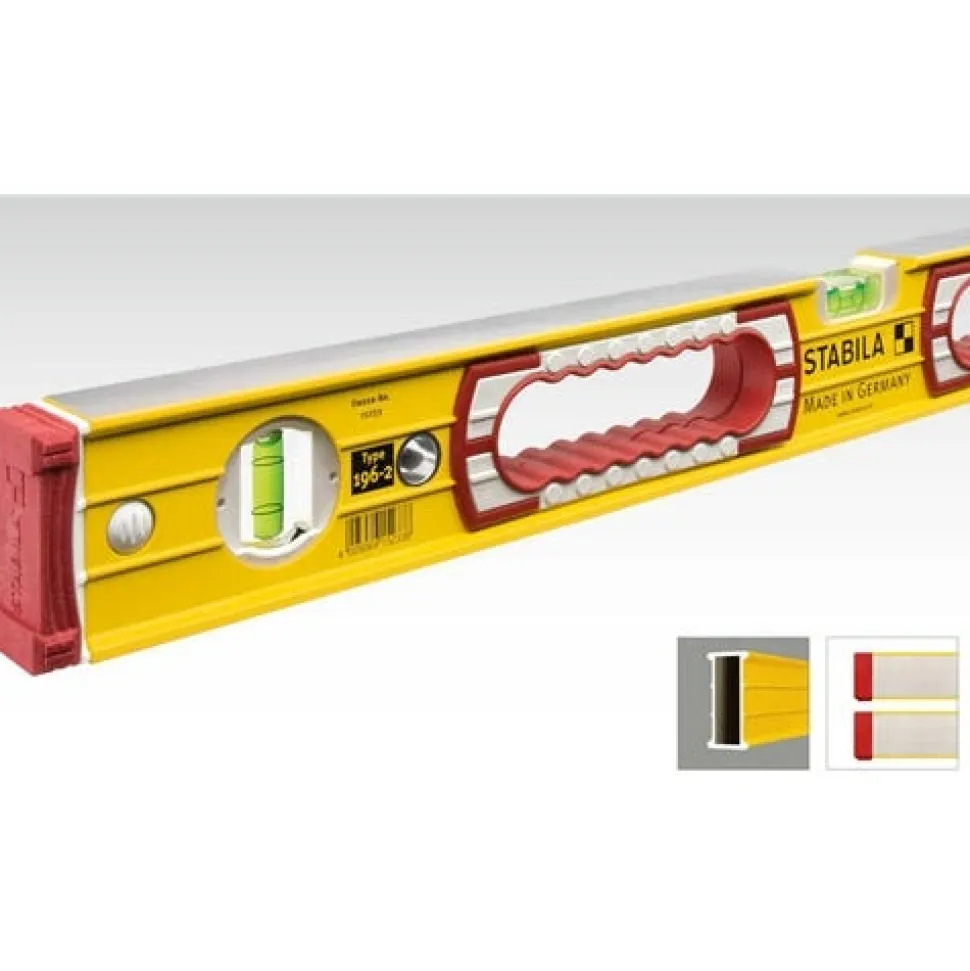

72 LEVEL TYPE 196 STA37472

STABILA levels are unparalleled with regard to their accuracy and dependability. The secret – the vials made of block acrylic glass are firmly epoxy-locked in the frame. A perfect system. The vial is firmly cast in the high strength aluminum frame with non-shrink epoxy. No re-adjustment; no realignment; no tensioning against springs made of steel or fatigued plastic; no welding or clamping stresses. Just as accurate after 10 years as on the first day.

FEATURES:

• Type 196. Our number 1 selling frame design.
• Certified Level Accuracy .029 degrees – 1/32″ over 72 inches – 0.5mm per meter right-side up or upside down. Every level is electronically adjusted; then accuracy inspected and certified.
• Vials read the same in all positions.
• Bright easy to read vials will not leak; break; fog or require re-calibration.
• Level accuracy guaranteed for life.
• Sizes 16″ to 72″ have machined top and bottom measuring surfaces.
• Sizes 16″ to 48″ have an open (300 degree) center vial. 59″ to 96″ have a double bridged center vial.
• Rib-reinforced frame for high strength and light weight. Frame will not warp or twist.
• Rubberized hand grips for comfort and grip.
• Shock-absorbing removable endcaps: Prevent slipping on walls and marking walls. Endcaps can be removed to carry pencil lines tight into corners.
• Large metal hang hole to store the level up and off of the work surface.
• Electrostatic enamel finish: baked on tough; cleans up with water and brush.

SPECIFICATIONS:

Measurement accuracy in normal position	±1/32″ @ 72″
Measurement accuracy in reverse position	±1/32″ @ 72″
Number of measuring surfaces	2
Profile	Rectangular profile with ribs
End caps	Removable / Wall Grips / Shock Absorbing

“
