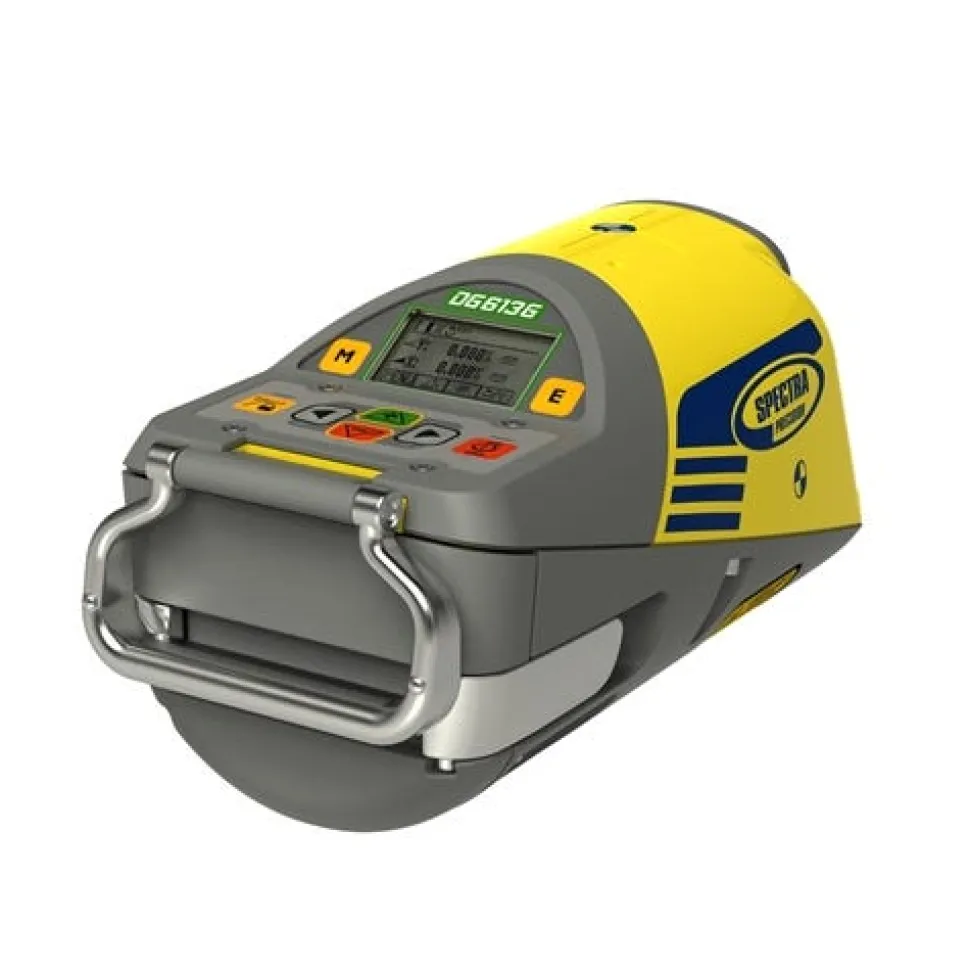

Spectra Precision Green Beam Pipe Laser DG613G

Spectra Precision

Green Beam Pipe Laser DG613G

FEATURES:

• New reduced length allows easy set-up even in tight inverts
• Large; bright; graphical user interface makes the screen easier to see and use when in or out of the pipe. Same graphical user interface can be seen on the remote – what you see on the laser you see on the remote
• Self levelling range of -12% to +40% over the entire grade range
• Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe; it levels; you work
• Bright visible beam that works up to 150m (500ft)
• IP68 protection (dust and waterproof)
• RC803 remote works via radio 130m (430ft) or infra-red 150m (500ft) for both “over-the-top” set-up and in pipe/trench set-up
• Line-Set/Check – allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment at the first day even in short trenches
• Line Scan – provides a quick alignment to the center of the target for the second day setup
• Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors

SPECIFICATIONS:

“
