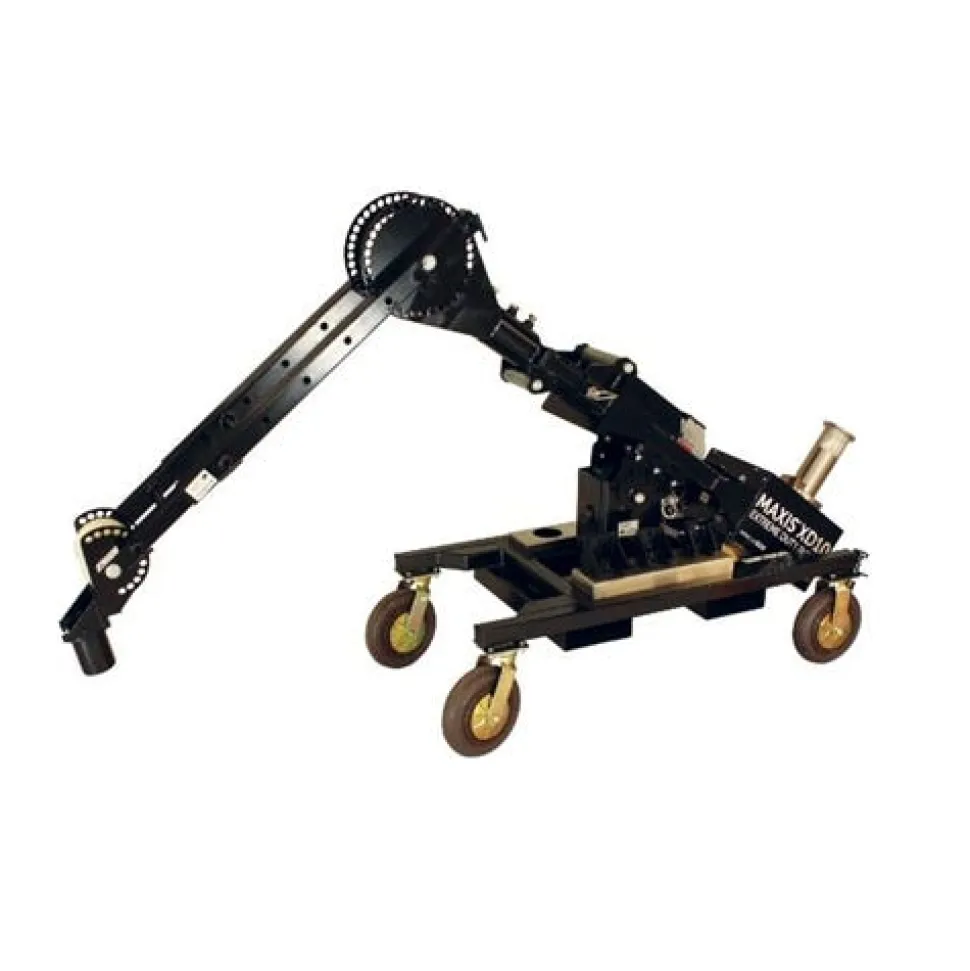

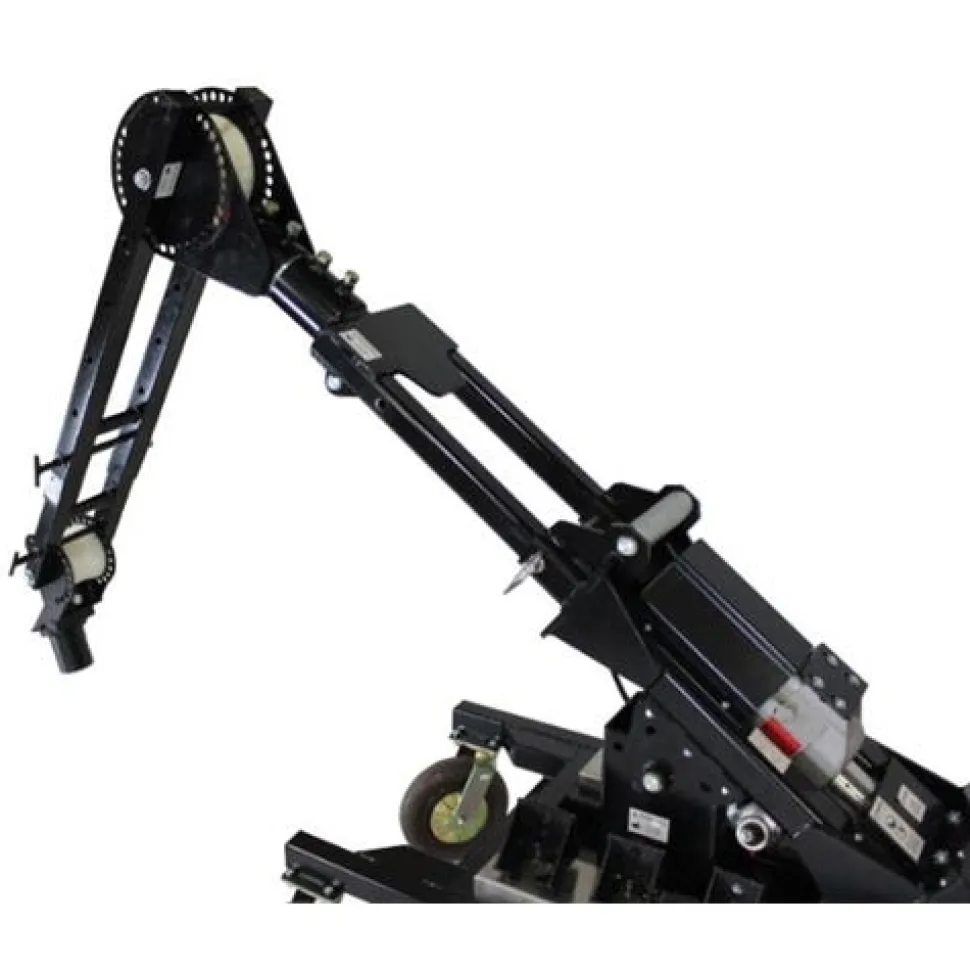

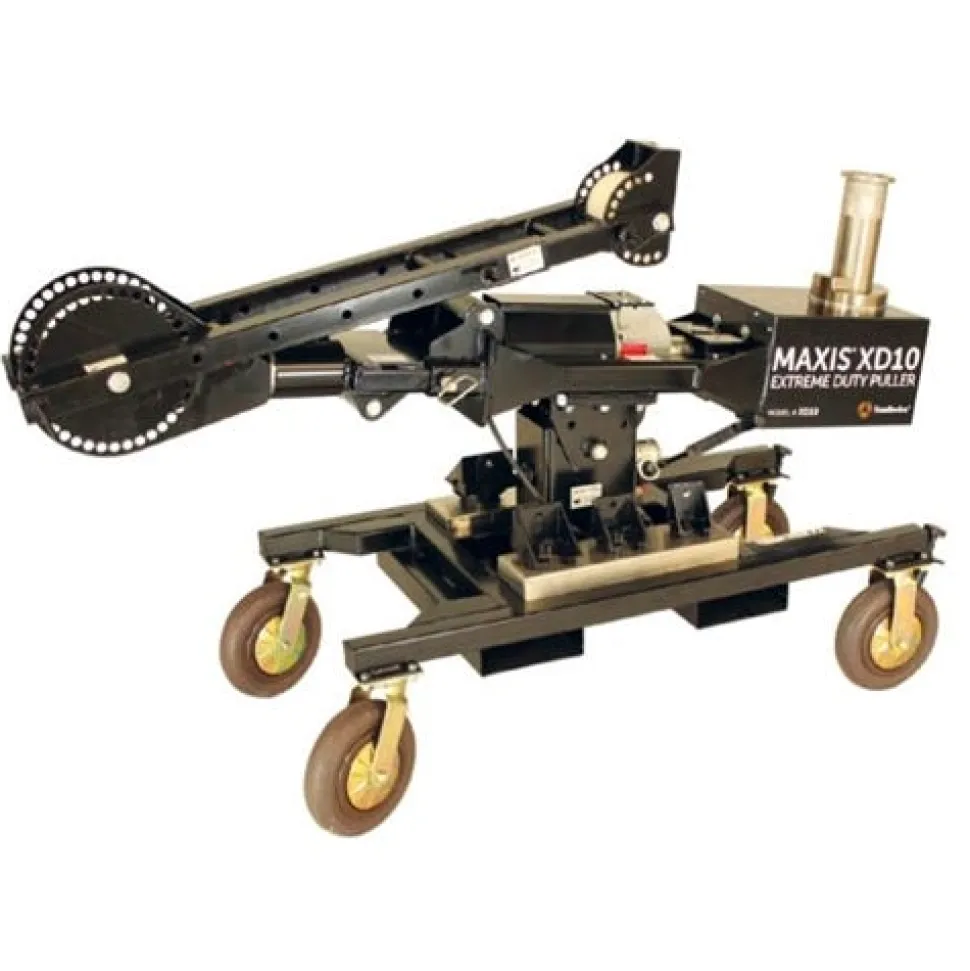

Southwire Maxis 10,000 lb Extreme Duty Cable Puller XD10

Southwire

Extreme Duty Cable Puller XD10

The Maxis XD10 EXTREME Duty Cable Puller is designed to get the job done; thriving in the most extreme pulling conditions. The XD10 allows you to pull faster and safer up to 10;000 lbs.

FEATURES:

• 10;000 lbs. peak pulling force with a continuous pulling rating of 7;000 lbs.
• High Capacity: Powerful gear box designed to operate under heavy loads with maximum output.
• Self Contained: Ready to Pull with no need for additional parts or equipment to use for set up.
• Single person set up and operation: Quickly adapts from underground to overhead pulls.
• Smooth Elevation Control: operates with handle or 18V cordless drill helping to eliminate any lifting.
• Collapsible down to 40″H x 26″W x 70″L to fit through standard doorways and ease of transport.
• Capacity at Low Pulling Speed:
• At 2;000 lbs. 11fpm
• At 4;000 lbs. 10fpm
• At 6;000 lbs. 9fpm
• At 8;000 lbs. 8fpm
• At 10;000 lbs. 7fpm
• Capacity at High Pulling Speed:
• At 2;000 lbs. 21fpm
• At 4;000 lbs. 18fpm

INCLUDES:

• Conduit Adapter sizes 2″ – 4″ (5″ & 6″ Adapters sold separately)

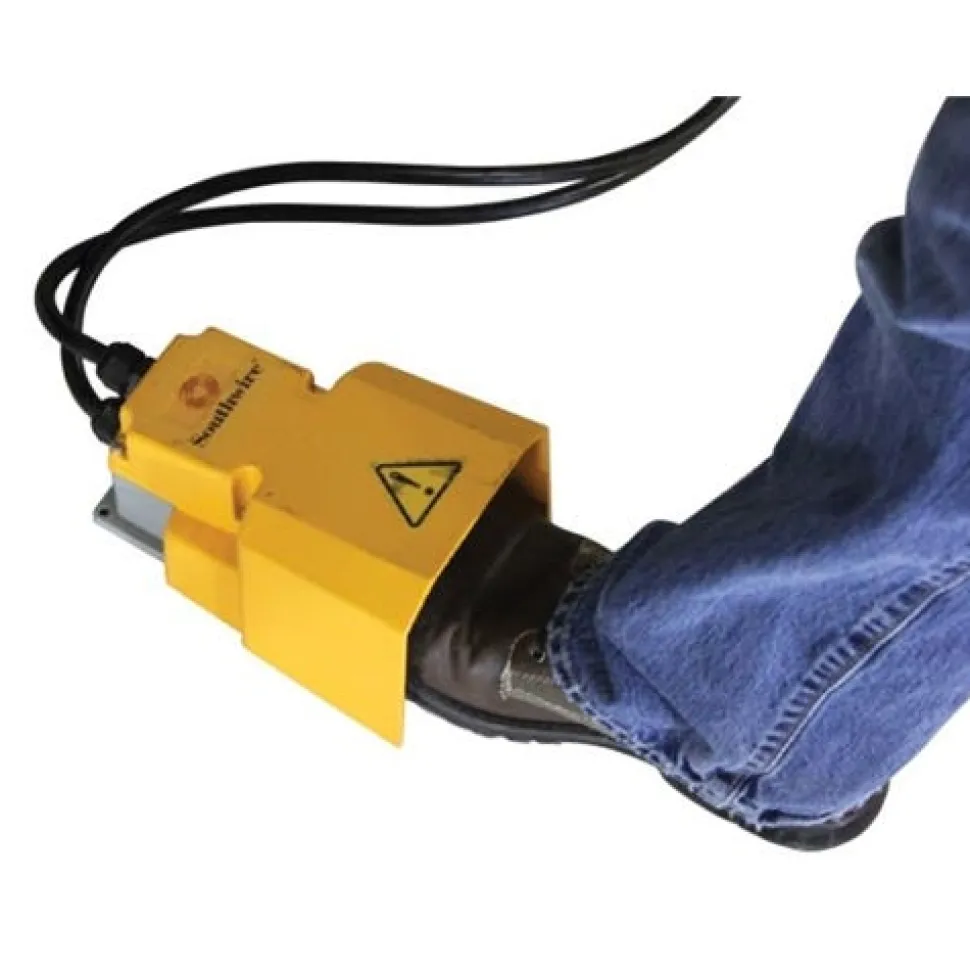

• Single Foot Control

“
