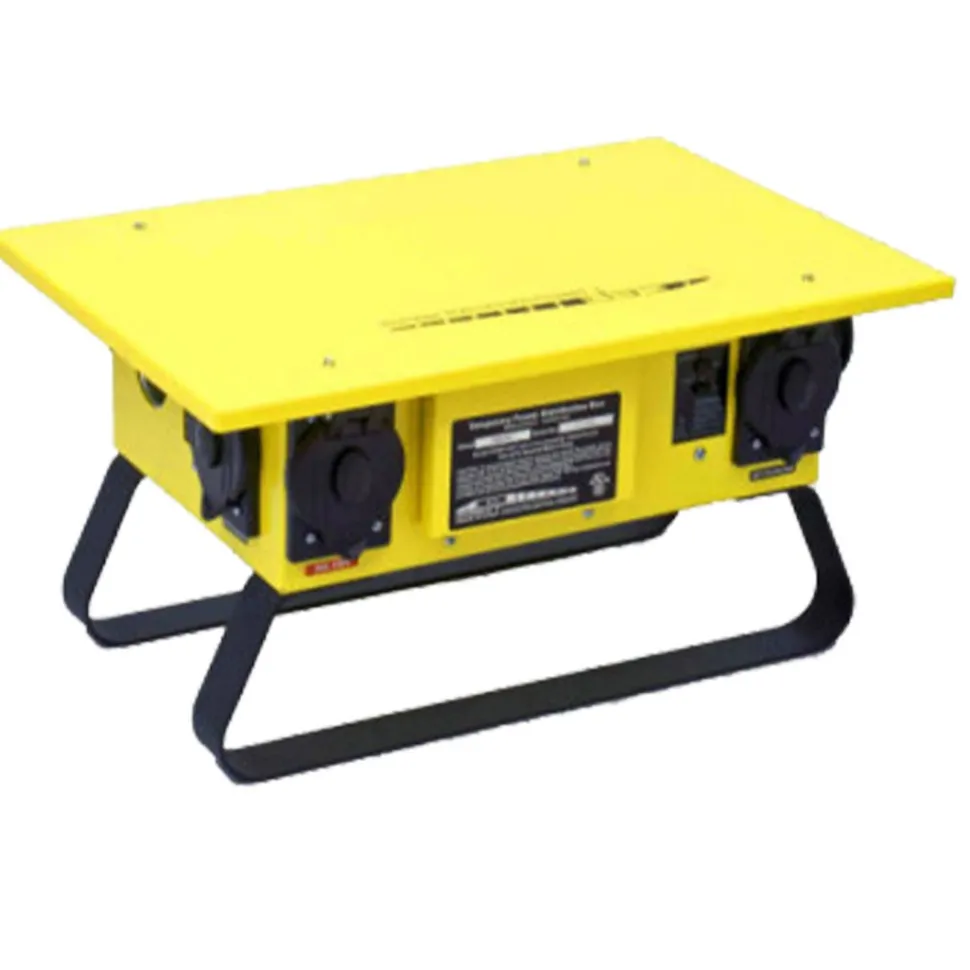

Southwire 50A 125/250V 6-Outlet GFCI Temporary Power Box w/ Sled Base 6506UGSD

Southwire

50A 125/250V 6-Outlet GFCI Temporary Power Box w/ Sled Base 6506UGSD

CEP’s Portable Power Distribution Centers (Temp Power Boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to UL1640 standards for portable power distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards.

FEATURES:

• 16 ga. Steel or Stainless Steel Construction.
• Heavy-duty impact / flame resistant.
• GFCI Protection – open neutral, reverse phasing & 240V shut-off with indicator light.

SPECIFICATIONS:

Volts	125/250V
AMPS	50
Power Inlet	CS6375
Power Outlet	CS6369
Receptacles	1 ea. L6-30R, 6ea. 5-20R GFCI
GFI Specs	4-6 milliamp trip level, <25 milliseconds trip time
Outlet Description	Classic 6 Outlet U-Ground
Construction	16 ga. Steel or Stainless Steel Construction
Dimensions	11″ x 21″ x 14.5″ HxWxD
