Simplex Aluminum 30 Ton Hydraulic 2″ Single Acting Cylinder Spring Return RAS302B

• Simplex Hydraulic
• Capacity : 30 ton
• Stroke : 2″
• Min. Height : 6.5″
• Body O.D. : 4.5″
• Piston O.D. : 2.5″

• Oil Cap. Req. : 13 cu. in.
• Max. Pressure : 10000 psi
• Heavy duty spring for fast & full retraction.
• Large bearing surfaces for side load protection.
• Technical hard coating reduces wear & corrosion.
• Stop rings for piston blow-out protection.
• Rod wiper protects inner cylinder from dirt.

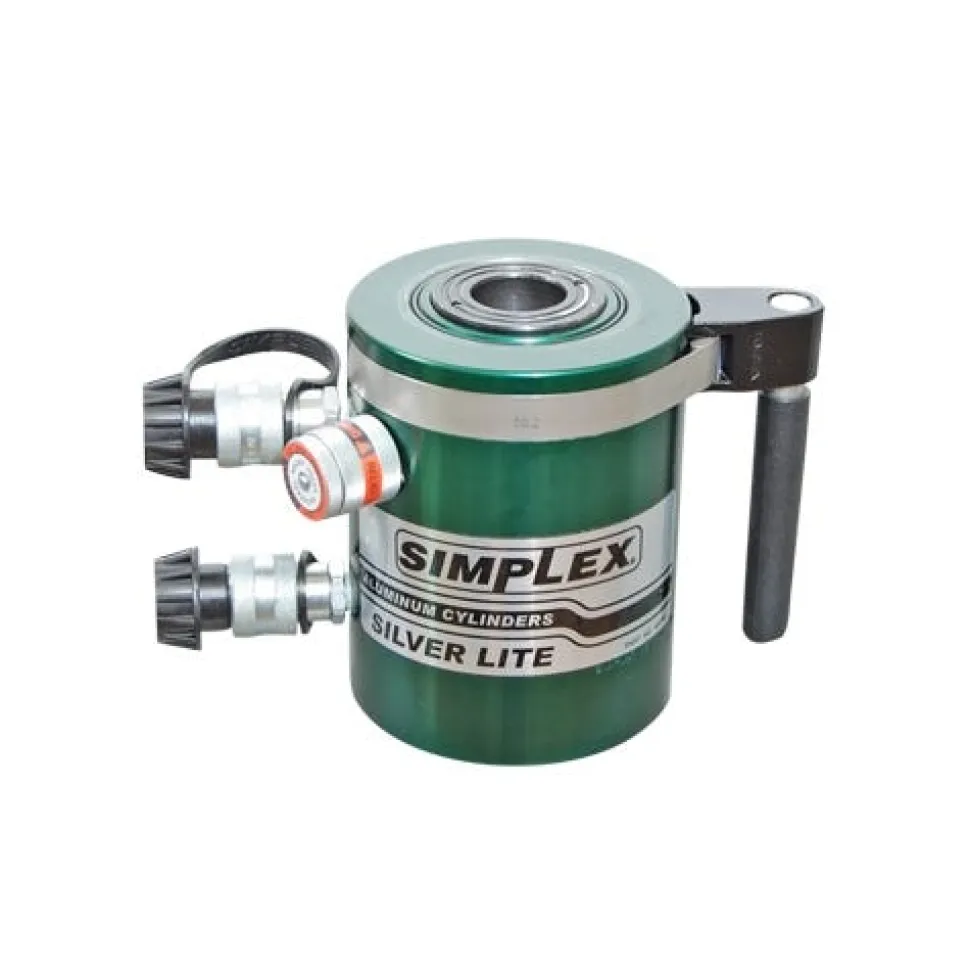

• ** Not Exact Picture


“
