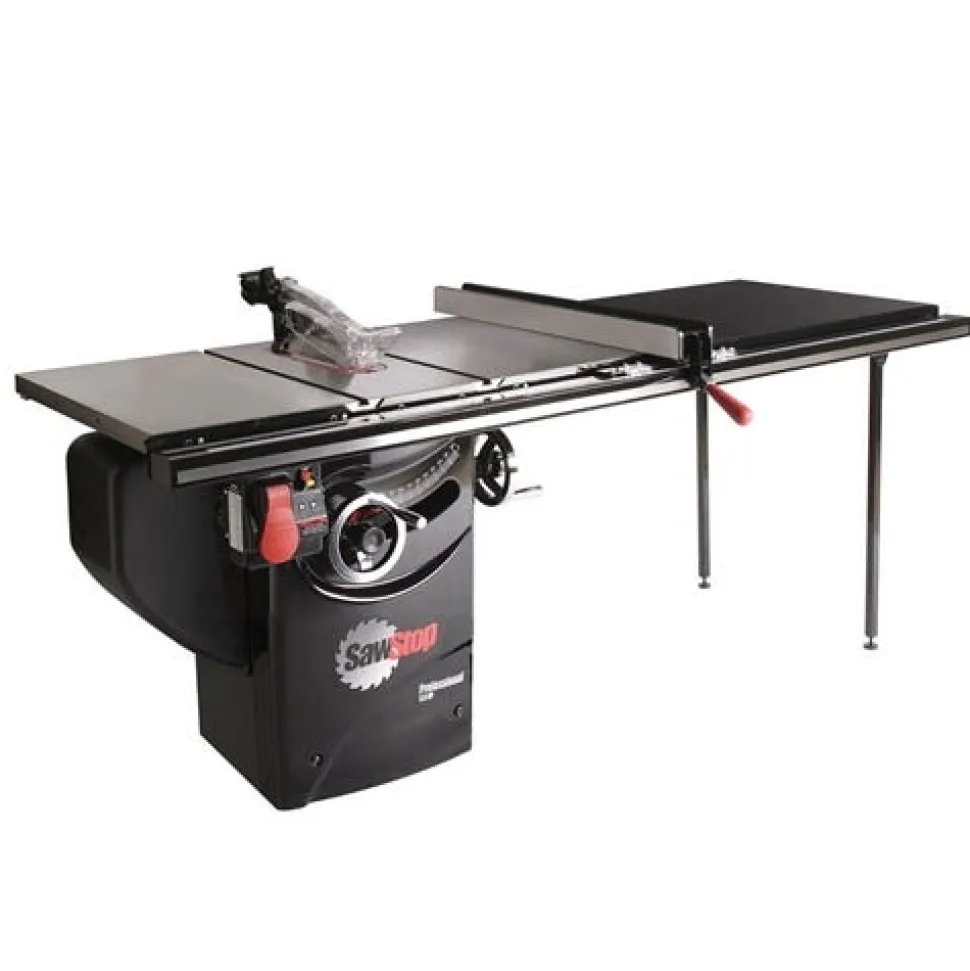

SawStop Table Saws SawStop 1.75HP Professional Cabinet Saw 36" T-Glide Fence PCS175-TGP236 PCS175-TGP236

SawStop Table Saws SawStop 1.75HP Professional Cabinet Saw 36″ T-Glide Fence PCS175-TGP236 PCS175-TGP236

Original price was: $3,355.00.Current price is: $140.99.

SKU: SKUlOTtCxC3CF Categories: Power Tools, Table Saws Tag: SawStop Table Saws Brand: SawStop Table Saws

Description
Reviews (0)

What’s Included

(2) Cast Iron Extension Wings
(1) Miter Gauge

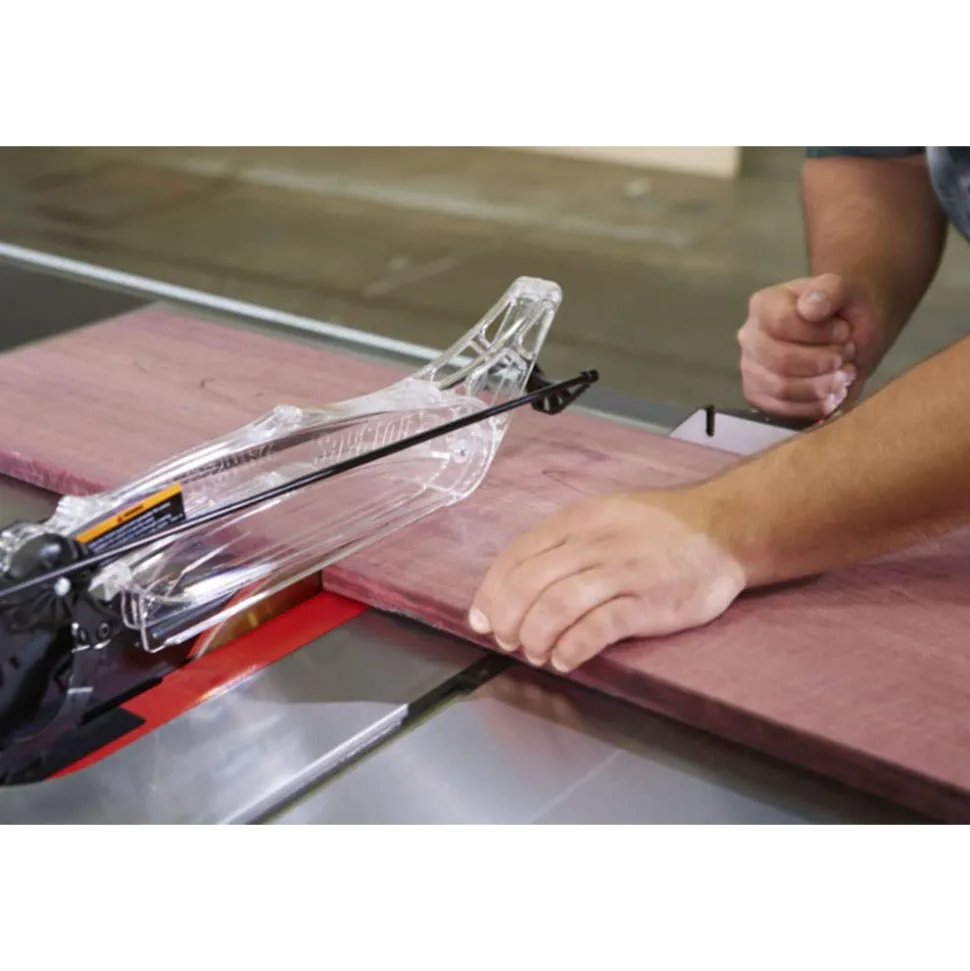

(1) Micro Blade Guard (1.75HP Models)
(1) Dust Collection Blade Guard (3HP Models)
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) Standard Lockdown Insert
(1) Standard Lockdown Insert
(1) Standard Brake Cartridge
(1) Owner’s Manual
(2) Hardware Packs
(1) 3mm Hex Key
(1) 5mm Hex Key
(1) 8mm hex Key

Additional Details

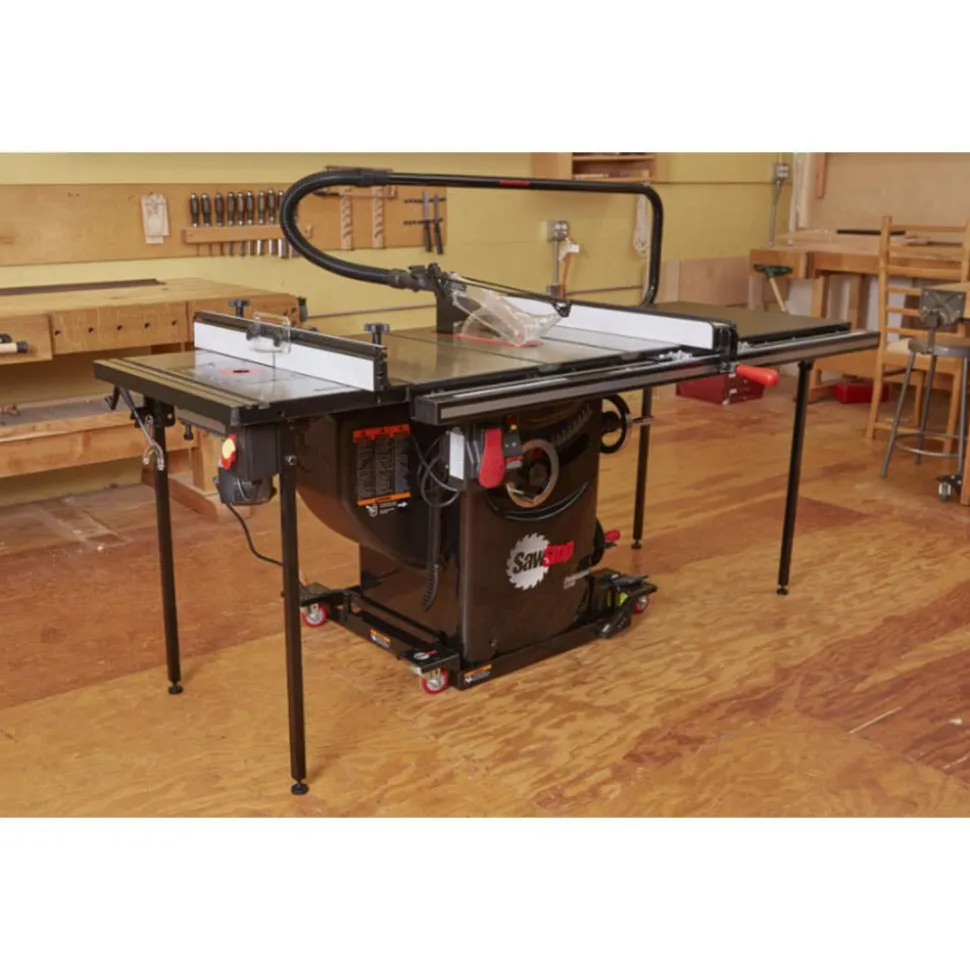

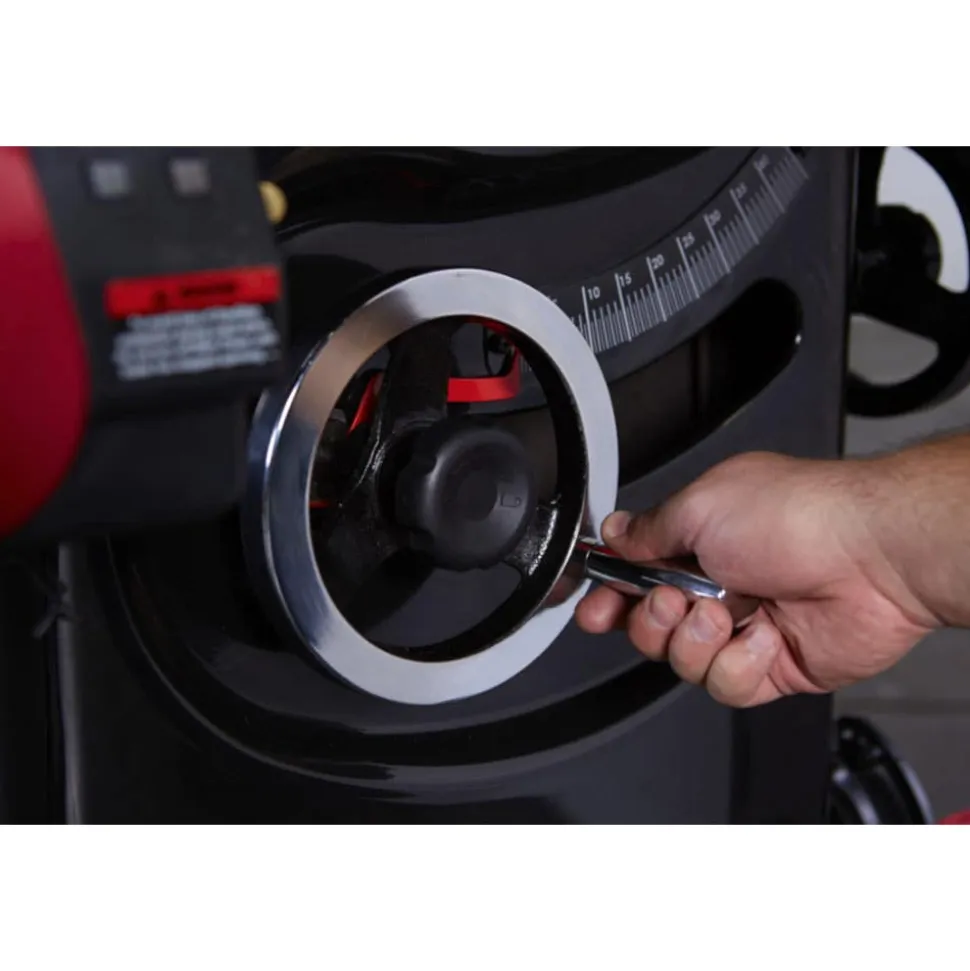

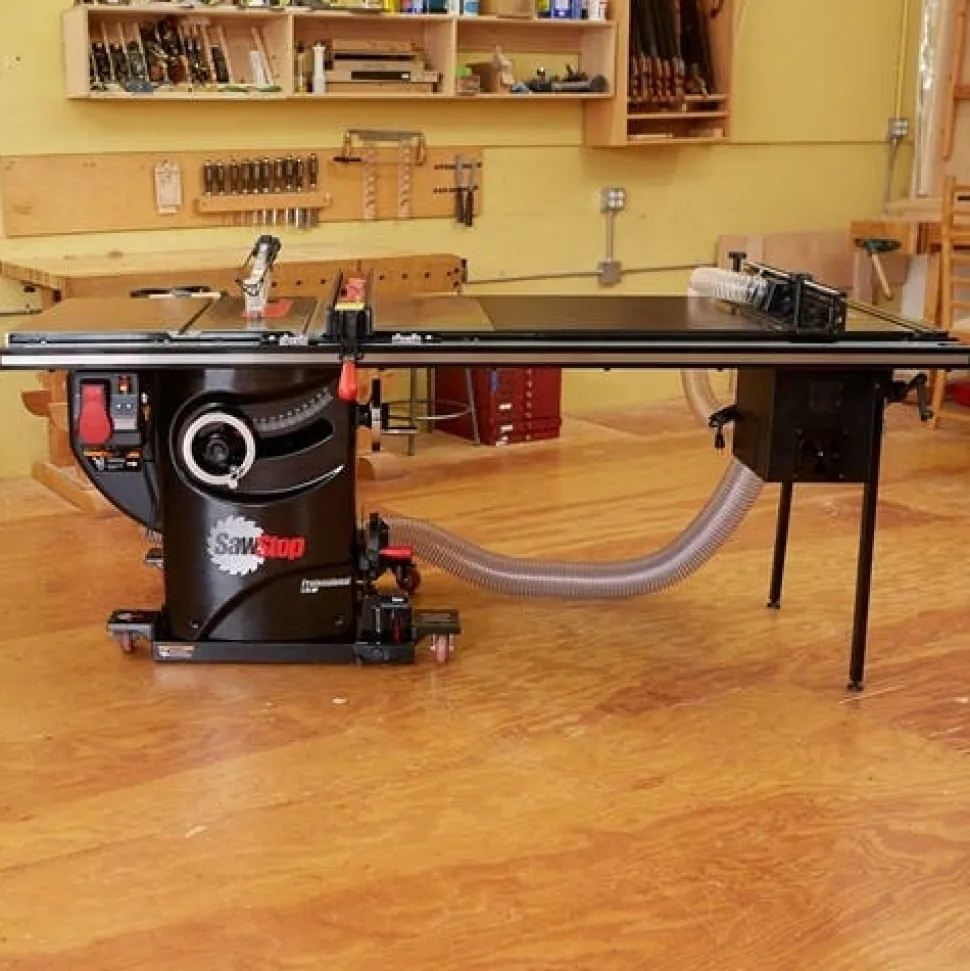

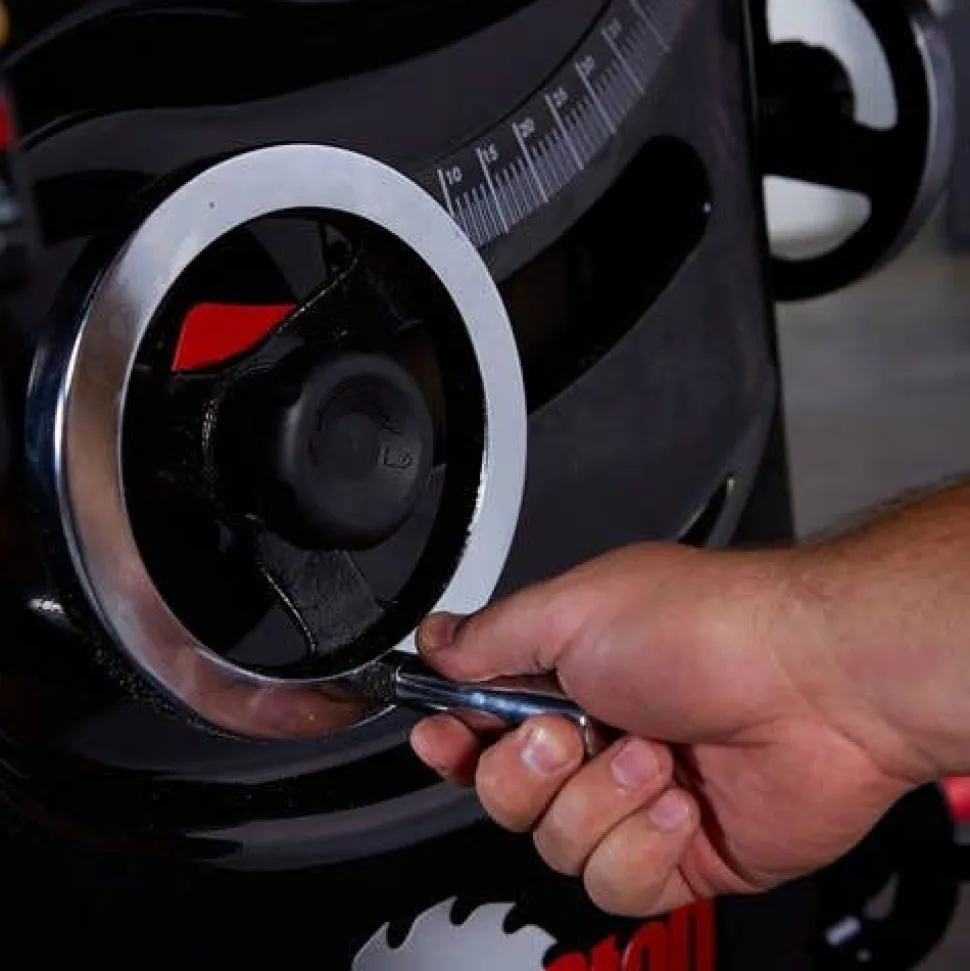

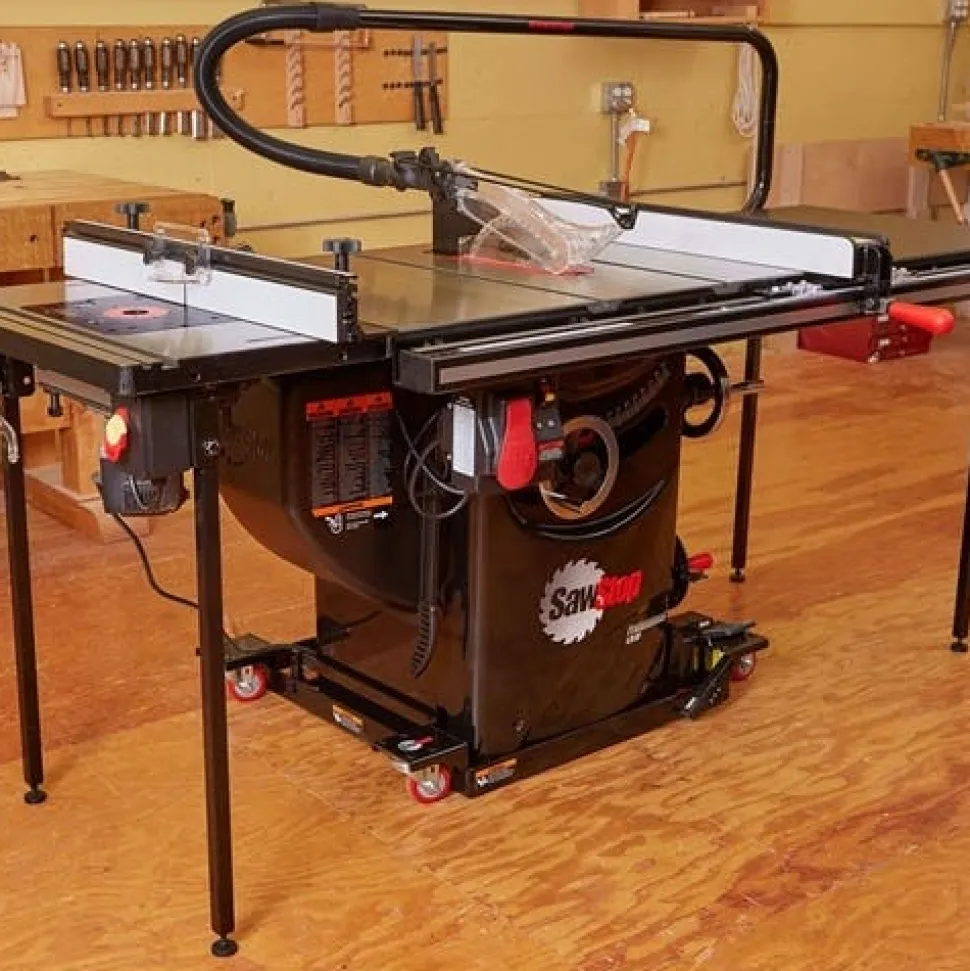

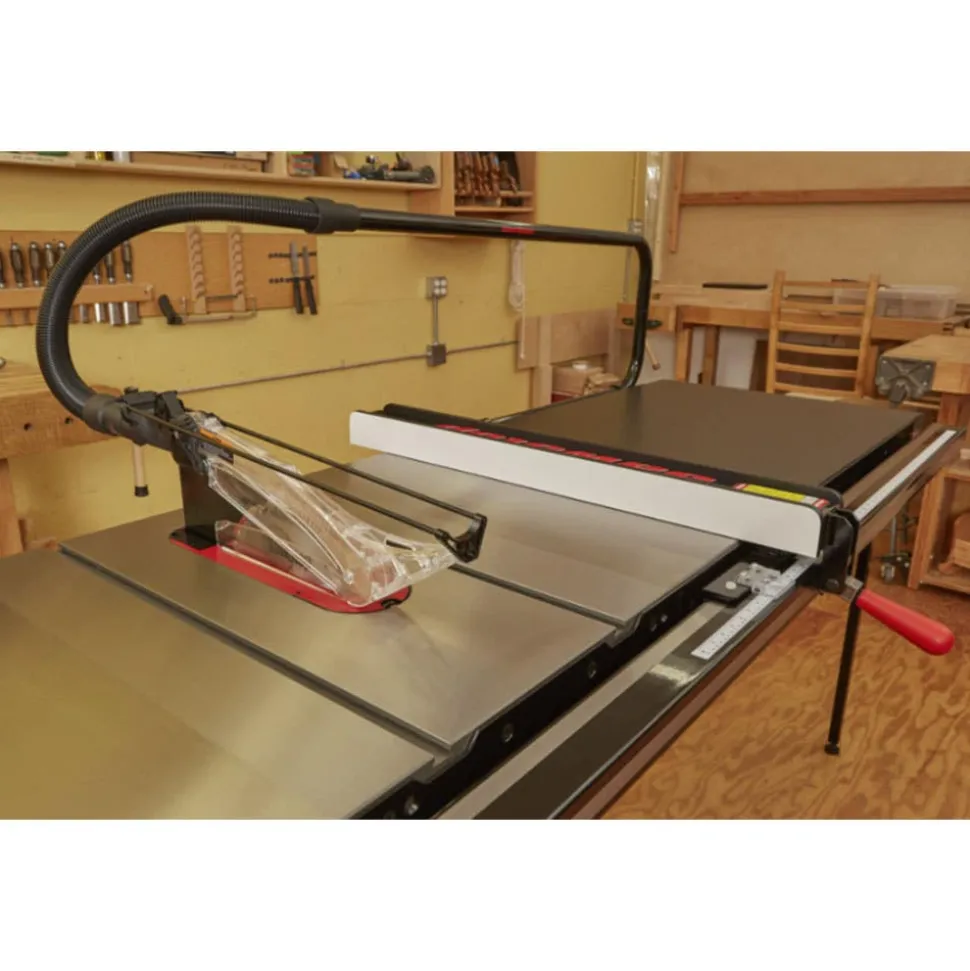

The Professional Cabinet Saw is SawStop’s top selling cabinet saw, offering unmatched fit and finish and best-in-class cutting performance.36-INCH T-GLIDE FENCE ASSEMBLY: The 36-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection.UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at 0.010” maximum gap.DUST COLLECTION: 99% dust collection is delivered above the table with the available dust collection blade guard (Model # TSG-DC, sold separately), and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4” port.SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.

Features

36″ Professional T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection.
Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop’s most popular saw.
SawStop Safety System stops on contact with skin.

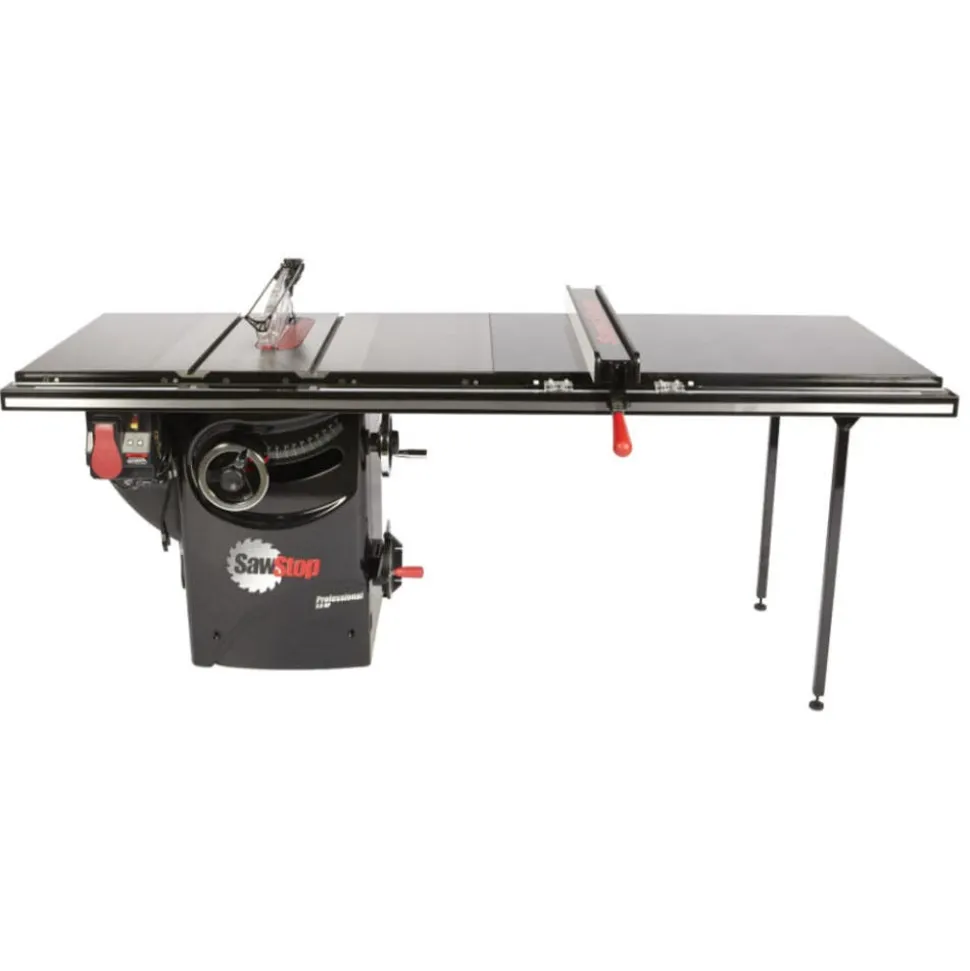

ASSEMBLY: 1.75HP Professional Cabinet Saw with 36” Professional T-Glide fence system, rails & extension table
Dimension: 69 1/8″ w, 33″ d, 34″ h

Manufacturer Specifications

Motor Option(s) (60Hz TEFC):1.75 or 3 HP available
36″ Rip CapacityPCS175 or PCS31230 -TGP236	36″ T-Glide Fence Assembly
Overall saw dimensions 36 in	69 1/8″ W x 33″ D x 34″ H
Motor Configuration 1PCS175	1.75 HP, 120v, 14 A (user config. to 220v w/optional kit available for purchase).
Saw body footprint	19 3/8″ W x 19 3/8″ D (Cabinet)
Cast iron table	20″ W x 27″ D
Extension wings	12″ W x 27″ D each
Cast iron table (w/ extension wings)	44″ W x 27″ D
Extension table 36 in	23 ¾” W x 27” D
Shipping weights – w/ 36 in fence systems	480 lbs
Shipping dimensions (saw body only)	42”W x 31”D x 30”H
Shipping weight (approx.)	(table saw only) 375 lbs
Assembled weights – w/ 36 in fence systems	408 lbs
Weights – table saw only	317 lbs
Blade	40-tooth, prof. grade, 5/8″ arbor
Blade diameter	10″
Blade tilt	Left
Blade kerf	0.118″ (3mm)
Blade plate thickness	0.078″ (2mm)
Max. depth of cut, blade at 0º	3 1/8″

Specifications

More Information
OPT SKU	KIT-SAWPCS175-TGP236
MPN	PCS175-TGP236
UPC/GTIN	857766003338
Product Type	Table Saws
Google Category	Hardware > Tools > Saws > Table Saws
Diameter	10″
Power Method	Corded/Electric
Package	Bundle
Voltage	110V/120V
Shipping Weight	320.00
