RKI Instruments GX-3R Pro Confined Space 5 Gas Personal Gas Detector W/ Bluetooth Wireless Communication 72-PAX-C

Original price was: $960.00.Current price is: $124.99.

SKU: SKUAlO9wCgxIt Categories: Gas Detection, Safety & Work Wear Tag: RKI Instruments Inc Brand: RKI Instruments Inc

Description
Reviews (0)

Additional Details

RKI Instruments

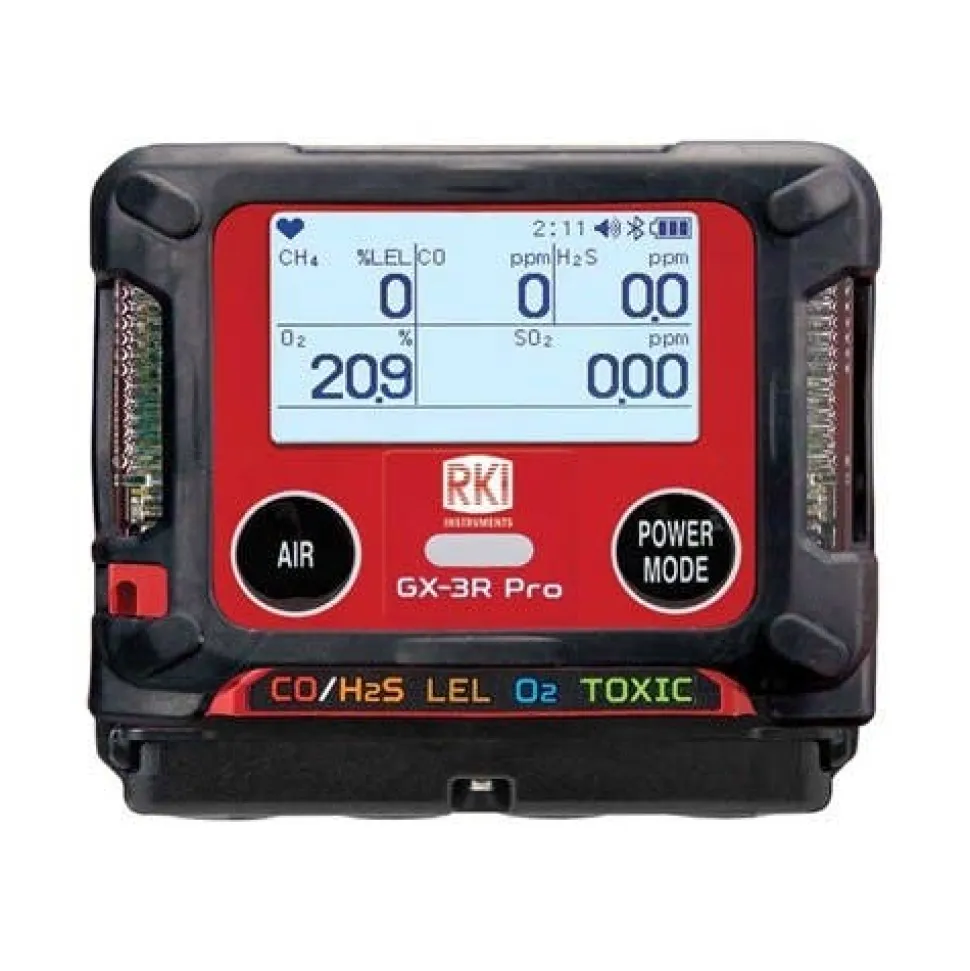

GX-3R Pro Confined Space 5 Gas Personal Gas Detector W/ Bluetooth Wireless Communication 72-PAX-C

The GX-3R Pro is the world’s smallest 5-gas monitor weighing only 4.58 ounces and fits in the palm of your hand (2.9” W x 2.6” H x 1.06” D). It simultaneously monitors and displays 5 different gases.The GX-3R Pro utilizes Bluetooth communication to display direct gas readings from the instrument to a phone app; which is available free on either iOS or Android phones.

FEATURES:

Simultaneous detection of 5 gases: LEL; O2; H2S; CO; and other optional sensors; (H2 Compensated CO sensor available).
Simple 2-button operation.
Bluetooth communication with iOS & Android App.
Non-Compliance Indicator.
3 user adjustable alarm levels.
Panic Alarm: Tap instrument twice.
Man Down Alarm.
Impact resistant body.
Large full dot; auto-backlit display with auto-rotation.
Stealth mode for law enforcement.
Field replaceable sensors & filters.
Water and dust resistant design; IP66/68.
3 Year Warranty.

APPLICATIONS:

Personal monitoring.
Confined spaces.
Refineries/petrochemical.
Utilities.
Oil and Gas.
Water/Wastewater.
Fire Services.
Law Enforcement.
Construction.

SPECIFICATIONS:

Detectable Gases
Sensor Slot 1: Carbon Monoxide (CO) & Hydrogen sulfide (H2S) Interchangeable (Part 1)
Gas	Detection Principle	Measuring Range (Increments)
H2S / CO	Dual EC	0 ~ 2000 ppm (1 ppm)
H2S / CO	Dual EC	0 ~ 200.0 ppm (0.1 ppm)
H2S Only	EC	0 ~ 200.0 ppm (0.1 ppm)
CO H2 Compensated	EC	0 ~ 2;000 ppm
Sensor Slot 1: Carbon Monoxide (CO) & Hydrogen sulfide (H2S) Interchangeable (Part 2)
Gas	Accuracy Statement	Preset Alarms
H2S / CO	± 5% of reading or ± 5 ppm CO	A1: 25 ppm¦ A2: 50 ppm A3:1200 ppm¦TWA: 25 ppm STEL: 200 ppm
H2S / CO	± 5% of reading or ± 2 ppm H2S	A1: 5 ppm¦ A2: 30 ppm A3: 100 ppm¦TWA: 1.0 ppm STEL: 5.0 ppm
H2S Only	± 5% of reading or ± 2 ppm H2S	A1: 5 ppm¦ A2: 30 ppm A3: 100 ppm¦TWA: 1.0 ppm STEL: 5.0 ppm
CO H2 Compensated	± 5% of reading or ± 2 ppm CO	A1: 25 ppm¦ A2: 50 ppm A3: 1200 ppm¦TWA: 25 ppm STEL: 200 ppm
Sensor Slot 2: Combustibles (Methane as standard) (Part 1)
Gas	Detection Principle	Measuring Range (Increments)
CH4 / HC	Catalytic	0 ~ LEL (1% LEL)
Sensor Slot 2: Combustibles (Methane as standard) (Part 2)
Gas	Accuracy Statement	Preset Alarms
CH4 / HC	± 5% of reading or ± 2 % LEL	1st: 10% LEL ¦ 2nd: 25% LEL 3rd: 50% LEL ¦ Over:100% LEL
Sensor Slot 3: Oxygen (O2) (Part 1)
Gas	Detection Principle	Measuring Range (Increments)
O2	EC	0 ~ 40.0% Vol. (0.10%)
Sensor Slot 3: Oxygen (O2) (Part 2)
Gas	Accuracy Statement	Preset Alarms
O2	± 0.5% O2	Low 1: 19.5%¦ Low 2: 18.0% High: 23.5%¦ Over: 40.0%
Sensor Slot 4: Toxics & CO2 Interchangeable (Part 1)
Gas	Detection Principle	Measuring Range (Increments)
SO2	EC	0 ~ 100.0 ppm (0.05 ppm)
CO2 %	IR*	0 ~ 10.0% Vol. (0.01%)
CO2 ppm	IR*	0 ~ 10;000 ppm (20 ppm)
Sensor Slot 4: Toxics & CO2 Interchangeable (Part 2)
Gas	Accuracy Statement	Preset Alarms
SO2	± 10% of reading or ± 5 % of full scale	A1: 2 ppm¦ A2: 5 ppm A3: 100 ppm¦ TWA: 0.25 ppm STEL: 0.25ppm
CO2 %	± 5% of reading or ± 2 ppm	A1: 0.50% Vol.¦ A2: 3.00% Vol. A3: 4.00% Vol.¦ TWA: 0.50% Vol. STEL: 3.00% Vol.
CO2 ppm	± 5% of reading or ± 2 ppm	A1: 5;000 ppm¦ A2: N/A TWA: N/A¦STEL: N/A
Alarm Types
Gas Alarm	• 2 increasing alarms
	• STEL
	• TWA
	• Overscale alarm
	• O2 decreasing/increasing
Trouble Alarm	• Sensor disconnection
	• Low battery
	• Circuit error
	• Calibration range error
	• Cal or bump due alarm
Both	• Man Down Alarm
Both	• Panic Alarm
Display of Alarm
Gas Alarm	• Flashing LED’s
	• Continuous buzzer (100 db @ 30cm)
	• Flashing gas value
	• Vibration
Trouble Alarm	• Flashing LED’s
	• Intermittent buzzer (95 db @ 30cm)
	• Display of error message
Power Source
Config	Li-ion	Alkaline
4-gas + EC	25 hours	16 hours
4-gas + IR	16 hours	7 hours
General Specifications
Sampling Method	Diffusion sampling standard (hand aspirator or clip-on motorized pump optional)
Display	Full dot LCD with Autobacklight and Autorotation
Operating Temp. & Humidity	-20°C ~ +50°C [ -4°F ~ +122°F ] 10 to 90% RH; non-condensing (continuous environment)
Operating Temp. & Humidity	-40°C ~ +60°C [ -40°F ~ +140°F ] 0 to 95% RH; non-condensing (temporary environment)
Response Time	Within 30 seconds (T90)
Dimension & Weight	2.9” W x 2.6” H x 1.06” D (Approx. 73 W x 65 H x 26 D mm); 4.58oz (with rubber boot)
Case Material	Explosion proof; dust and water resistant to IP-66/68 (2m;1h) approval. Drop height 23 ft.
Bluetooth Communication	BLE: with iOS and Android phone app: RK Link
Datalogging	Logs user ID; station ID; Calibration & Bump Test history; Alarm Events & Alarm Trends
Safety Design / Approvals	ATEX; CSA
Warranty	Three years material and workmanship including sensors
Accessories
Standard Accessories	• Alligator clip
	• Protective rubber boot
	• Charger
	• Calibration adapter
Optional Accessories	• Padded carrying case
	• RP-3R Attachable sampling Pump with 4” rubber nipple; 10’ hose and probe (up to 40’ hose available)
	• USB to IrDA downloading cable for datalogger
	• SDM-3R calibration station
	• Hand aspirator

“
