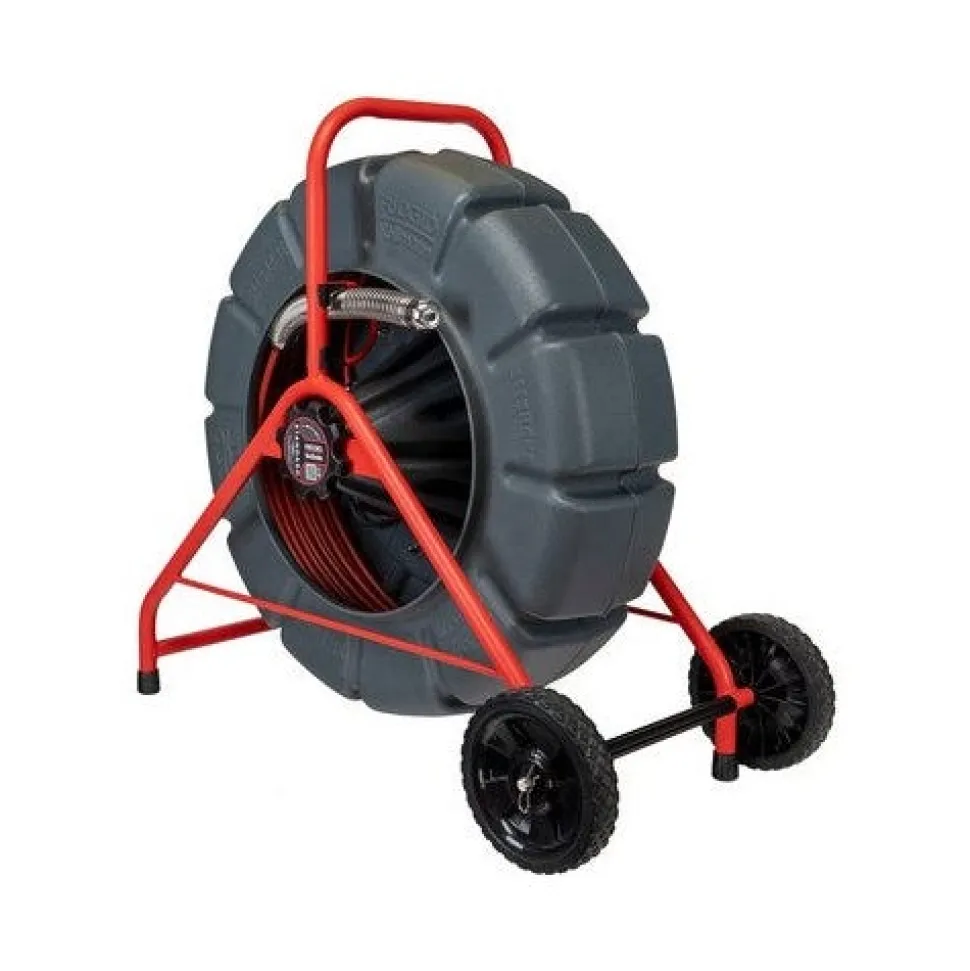

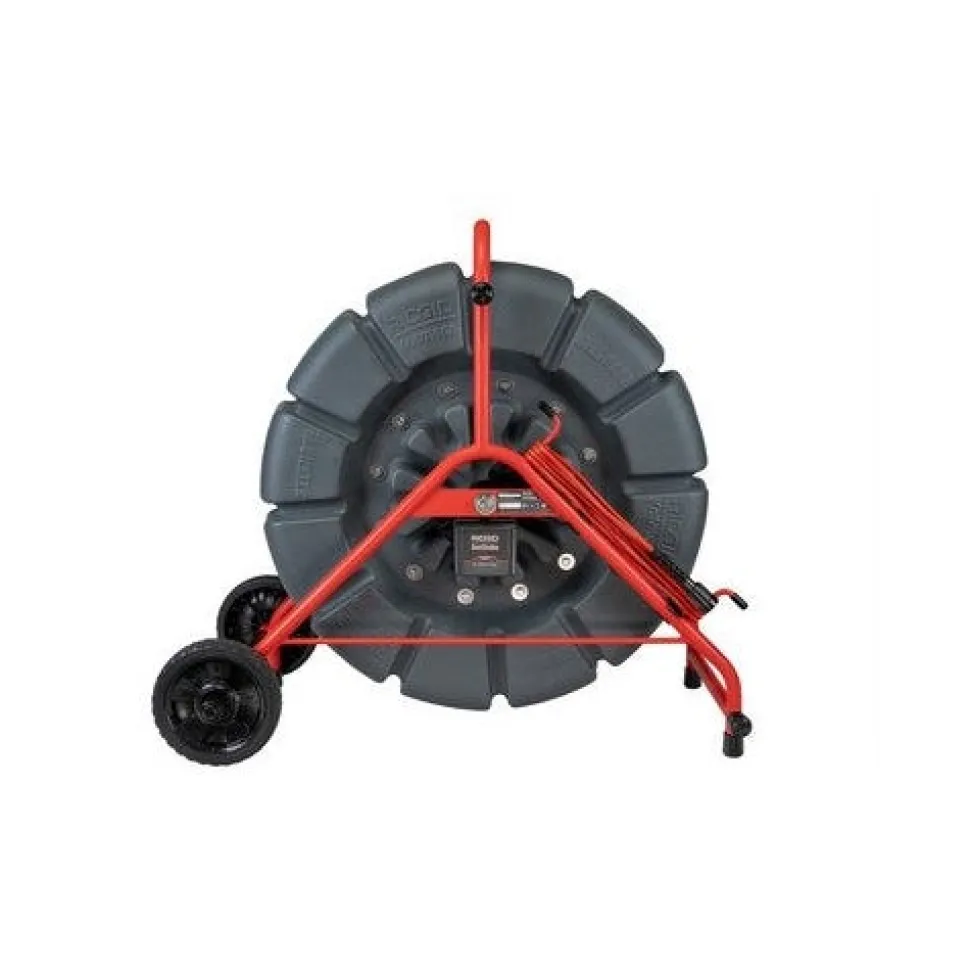

RIDGID SeeSnake 200′ HDR TruSense Self-Leveling Color Camera Reel 63603

RIDGID

200′ Self-Leveling Color Reel 63603

Down pipe visibility vastly improved with High Dynamic Range (HDR) giving more clearly defined detail of pipe characteristics. Rugged, high-intensity LEDs for exceptional viewing and long life.

FEATURES:

• The SeeSnake Standard camera reel offers unmatched reliability and performance in a ruggedized package.

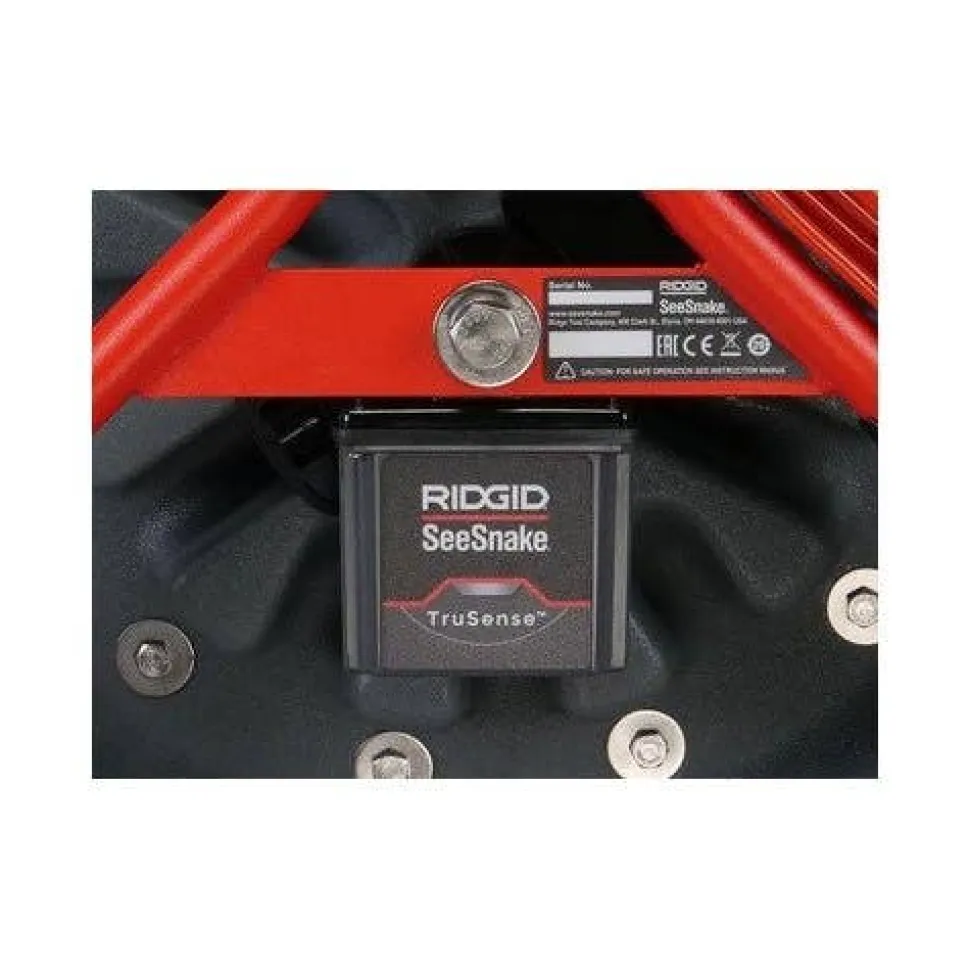

• Now available with TruSense technology.
• The Standard has the stiffest push cable and is available in lengths up to 325′ (99 m) – making it perfect for long runs, particularly in larger pipes with fewer turns.
• Rugged, high-intensity LEDs for exceptional viewing and long life.
• Powerful FleXmitter sonde has long range and preserves the camera’s ability to make turns.
• High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions.
• TiltSense displays the camera’s pitch in a pipe on a connected SeeSnake CSx series monitor.
• Self-leveling camera head keeps the image upright.

SPECIFICATIONS:

Line Capacity	2 – 12″ (5-30cm)
Maximum Run	200′ (99m)
Sonde	512 Hz
Weight (without monitor)	53 lbs. (19.5 kg)
Reel Frame Diameter	32″ (81 cm)
Camera Diameter	1.365″ (35 mm)
Camera Length	1.68″ (42 mm)
Push Cable Diameter	.44″ (11 mm)
Operating Temperature	-4° to 104°F (-20° to 40°C)
Waterproof Depth	330′ (100 m)
Video Resolution	656(H) x 492(V)
