RIDGID 535 Threading Machine 1/2-2″ NPT 811A Die 93287

Ridgid

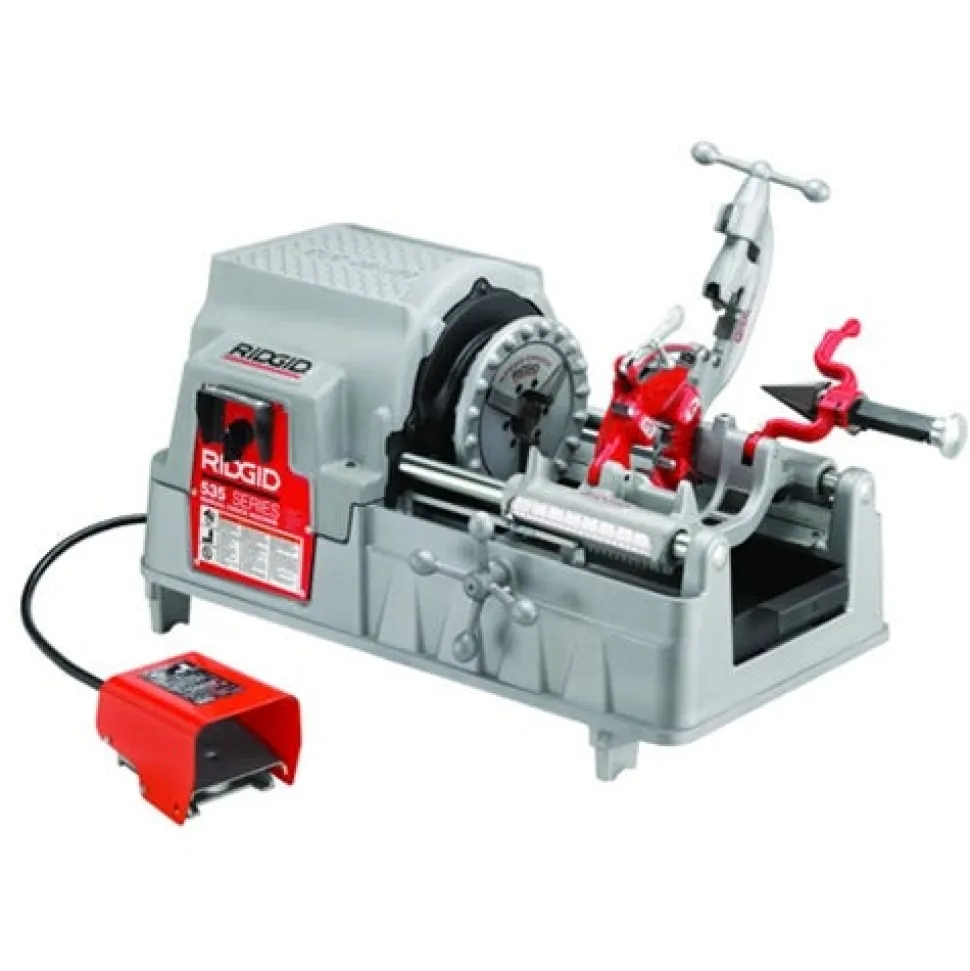

Model 535 Threading Machine

The Model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535; the 535A Automatic and other RIDGID equipment.

FEATURES:

• Large 1.75 gallon (6.6 L) oil tray.
• Large chip tray.
• Generous top cover for keeping tools and fittings handy.
• High clearance carriage makes threading easier.
• Speed chuck with rocker-action jaws centers and grips work piece instantly.
• Can be used with geared Models 141 and 161 threaders.
• Uses Model 816/817 semiautomatic; Model 815A self-opening or Model 811A quick-opening die heads.
• Length gauge for quick; accurate cut-off.

SPECIFICATIONS:

Pipe Capacity	1/8-2″ (3mm-50mm) 2 1/2″-4″ (62mm-100mm); 4″-6″ (100mm-150mm) with 141 and 161 geared threaders.
Bolt Capacity	1/4″-2″ (6mm-50mm).
Switches	Forward/off/reverse and integral foot switch.
Chuck	Speed Chuck with three replaceable rocker-action jaw inserts.
Rear Centering Device	Cam-action; turns with chuck.
Cutters	Self-centering; full-floating. Two models available: Standard Model 820 Wheel-Type Cutter; pipe capacity 1/8″-2″ (3mm-50mm); bolt capacity 1/4″-1″ (6mm-25mm). Optional Model 821 Blade-Type cutter; pipe capacity 1/2″-2″ (12mm-50mm). See ordering chart.
Reamer	5-flute cone; RH; 1/8″-2″ (3mm-50mm).
Oil Pump	Self-priming gerotor oil pump.
Reamers	RH/LH combination reamer available.

ACCESSORIES:

• Die heads and dies.
• Die head racks.
• Three models of stands available.
• Thread cutting oil.
• Nipple chuck.

“
