Reed FT2000UNIV Feed Tap Drilling Machine 09165

Reed Manufacturing

FT2000UNIV Feed Tap Drilling Machine 09165

FEATURES:

• FT2000UNIV kit contains machine, corp adapters and cutters to saddle tap 3/4″ ﾖ 2″ for flare, compression and NPT applications.
• Compact design, featuring a separate, independent feed control for advancing the heavy-duty shell cutter into the pipe, allows the user to easily complete the tap using a drill.

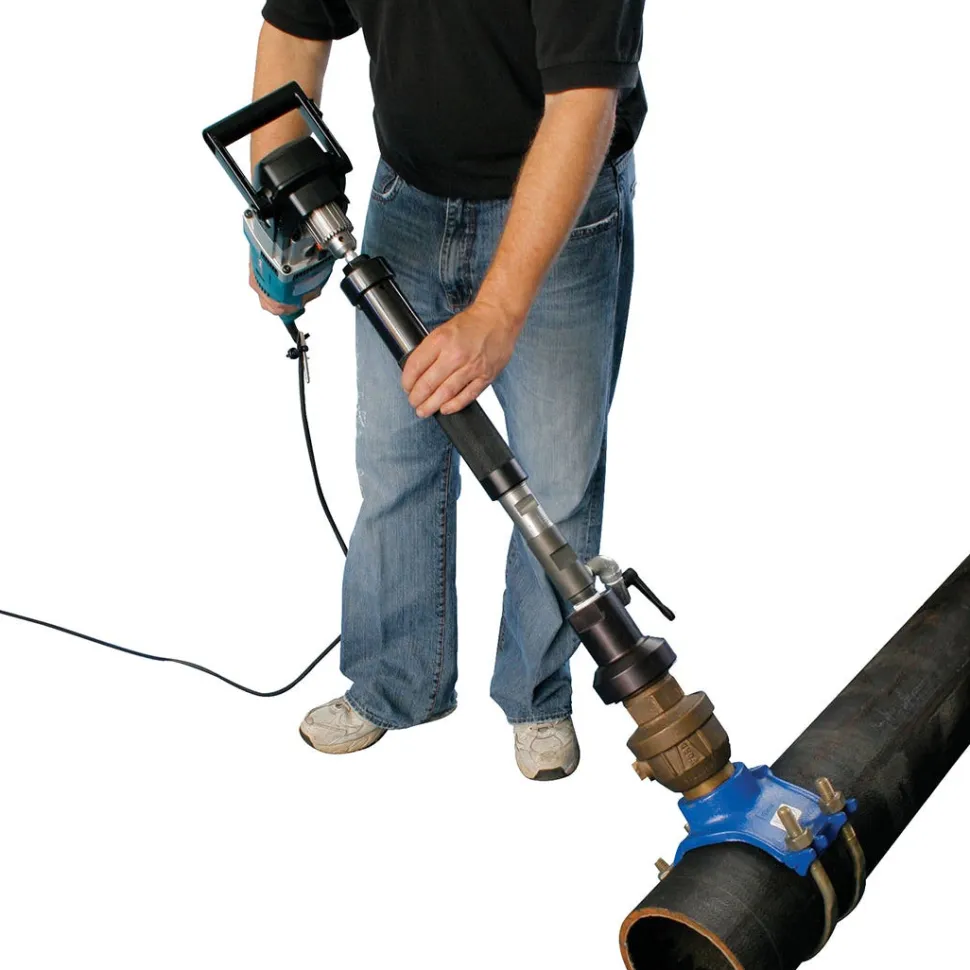

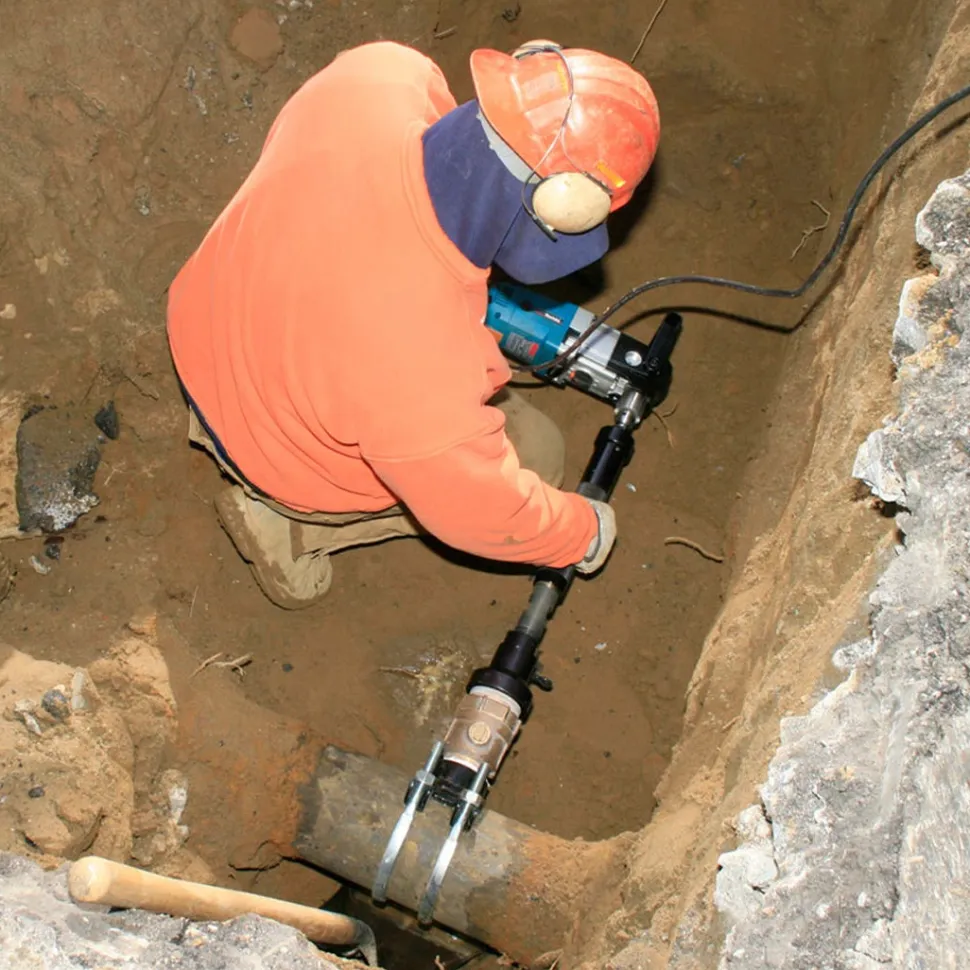

• To saddle tap cast/ductile iron pipe, use drill power.

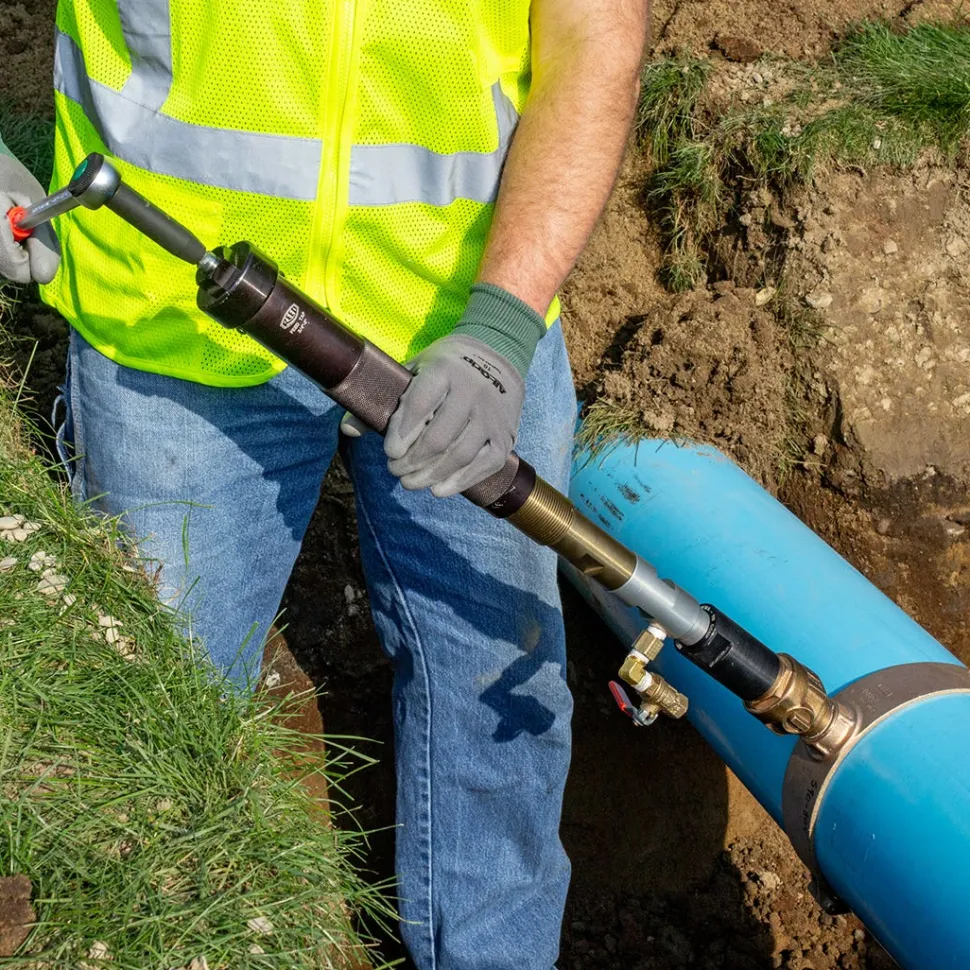

• According to Uni-Bell PVC Pipe Association recommendations, PVC and other plastic pipe must be tapped manually. Add on Reed’s #04428 and #48206 as the ratchet wrench and socket to fit the Feed Tap machine.

SPECIFICATIONS:

Catalog Number	FT2000UNIV
Item Number	09165
Description	Complete Feed Tap Kit 3/4″ – 2″

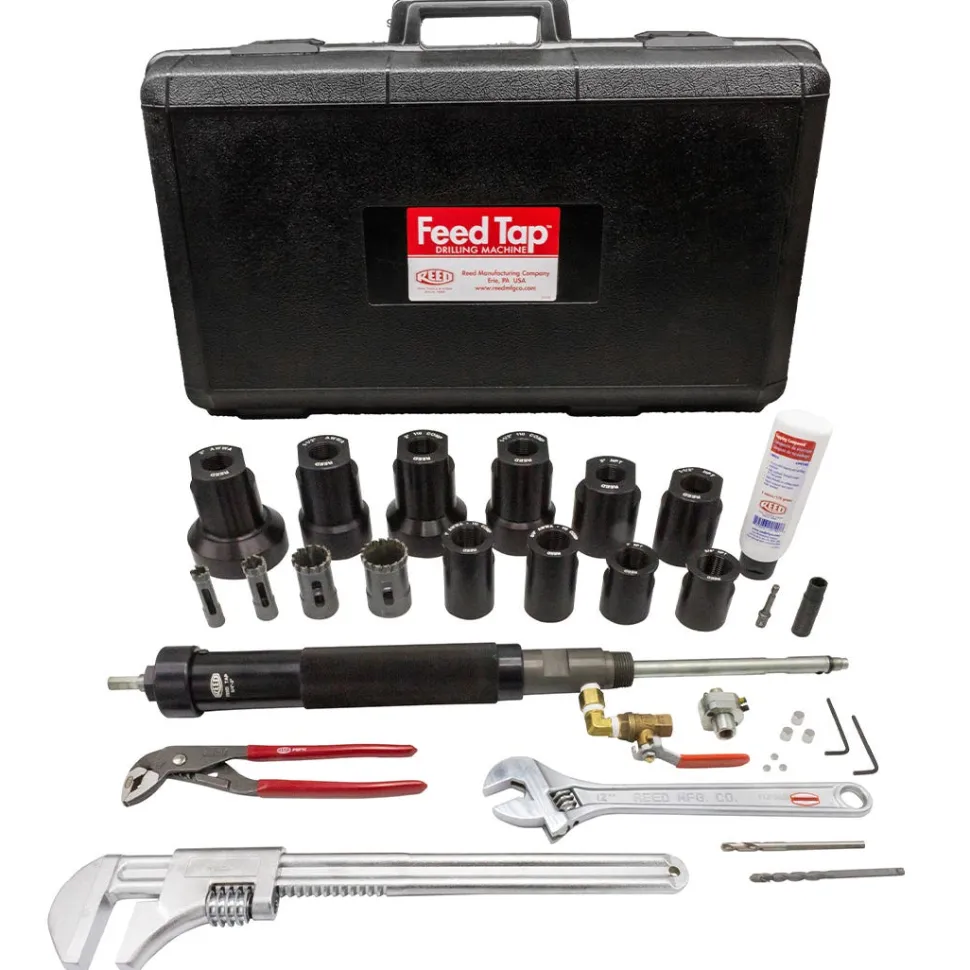

INCLUDES:

• 02114 RCORP Corporation Wrench
• 02207 CW12 12″ Adjustable Wrench
• 02655 PGP10 Positive Grip Pliers
• 08358 MCR3/8 Magnetic Coupon Retainer Set, 3/8″
• 08359 MCR1/4 Magnetic Coupon Retainer Set, 1/4″
• 40296 HEX Wrench
• 04561 1/4″ PILOT DRILL BIT
• 99129 CRPD25 Coupon Retaining PILOT DRILL
• 99140 TMTC6 6oz Tapping Compound
• 09113 FTAA Arbor Assembly
• 09170 FT75CC110 3/4″ AWWA-110 Compression Corp Adapter
• 09171 FT100CC110 1″ AWWA – 110 Compression Corp Adapter
• 09172 FT150 1-1/2″ AWWA Corp Adapter
• 09173 FT150110 1-1/2″ 110 Compression Corp Adapter
• 09174 FT200 2″ AWWA Corp Adapter
• 09175 FT200110 2″ 110 Compression Corp Adapter
• 48207 FTSA1/2 Socket Adapter
• 48208 SCKT1/2 7/16″ Socket, 1/2″ DRIVE
• 99109 FT150NPT 1-1/2″ NPT (IPS,FORD) Adapter
• 99112 FT200NPT 2″ NPT (IPS,FORD) Adapter
• 99117 FT75NPT 3/4″ NPT Adapter
• 99118 FT100NPT 1″ NPT Adapter
• 99132 FTSC688 11/16″ Shell Cutter
• 99134 FTSC875 7/8″ Shell Cutter
• 99137 FTSC1438 1-7/16″ Shell Cutter
• 99138 FTSC1750 1-3/4″ Shell Cutter
