Reed DM3MECH Mechanical Hot Tapping Machine Kit 08350

Reed Manufacturing

DM3MECH Mechanical Hot Tapping Machine Kit 08350

FEATURES:

• Hot tap tool for piping, fittings and valves with NPT threads.
• Hot tap steel, galvanized, copper, brass or aluminum pipe for installing branch connections from 3/4″ to 4″ valves.

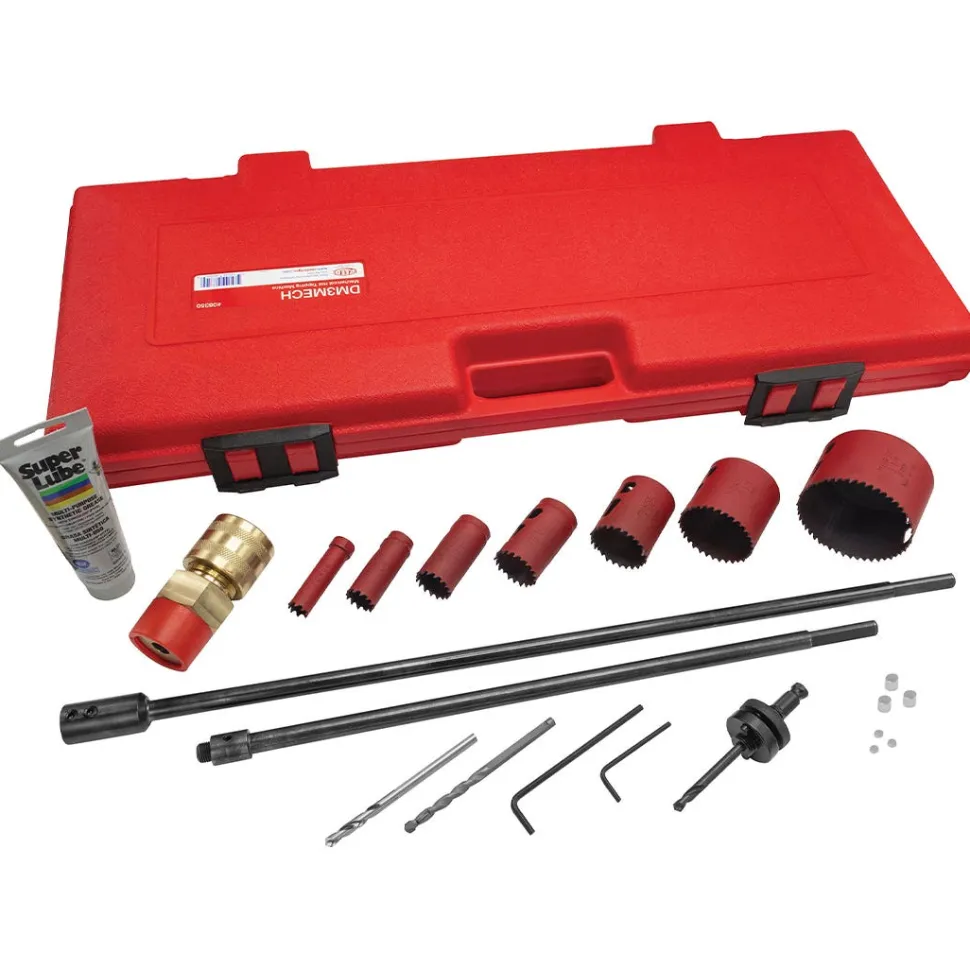

• Complete kit includes main body assembly, shafts, hole saw assortment, arbor and accessories in a storage case.
• REED Mechanical Hot Tapping Machine is the tapping machine only with valves, saddles, fittings and piping supplied by the operator.

SPECIFICATIONS:

Catalog Number	DM3MECH
Item Number	08350
Description	Kit for NPT with hole saws and arbor in storage case
Valve Size	3/4″ – 4″

INCLUDES:

• 08350 DM3MECH Hot Tapping Operator’s Manual
• 08358 Coupon Retainer 3/8 Dia. Magnet-3 PK
• 08359 Coupon Retainer 1/4 Dia. Magnet-3 PK
• 40149 5/32 Allen Wrench-Long Arm Hex
• 40296 Hex Wrench For DMHSA/PPR
• 04561 Drill Bit, 1/4″ X 4-5/16 Length
• 99129 Drill Bit, 1/4″ Coupon Retaining
• 43514 Arbor
• 93514 24″ Shaft, 1/2″ Dia. W/Holder
• 93515 18″ Shaft, 1/2″ Dia. W/Sleeve
• 93526 Toolbox, PLASTIC
• 93527 Main Body Assembly
• 43500 5/8″ Dia. Hole Saw
• 43501 7/8″ Dia. Hole Saw
• 43502 1 1/8″ Dia. Hole Saw
• 43503 1 3/8″ Dia. Hole Saw
• 43504 1 3/4″ Dia. Hole Saw
• 43505 2 1/4″ Dia. Hole Saw
• 43506 3 1/4″ Dia. Hole Saw
• 43512 H1 Grease (3 oz. tube)
