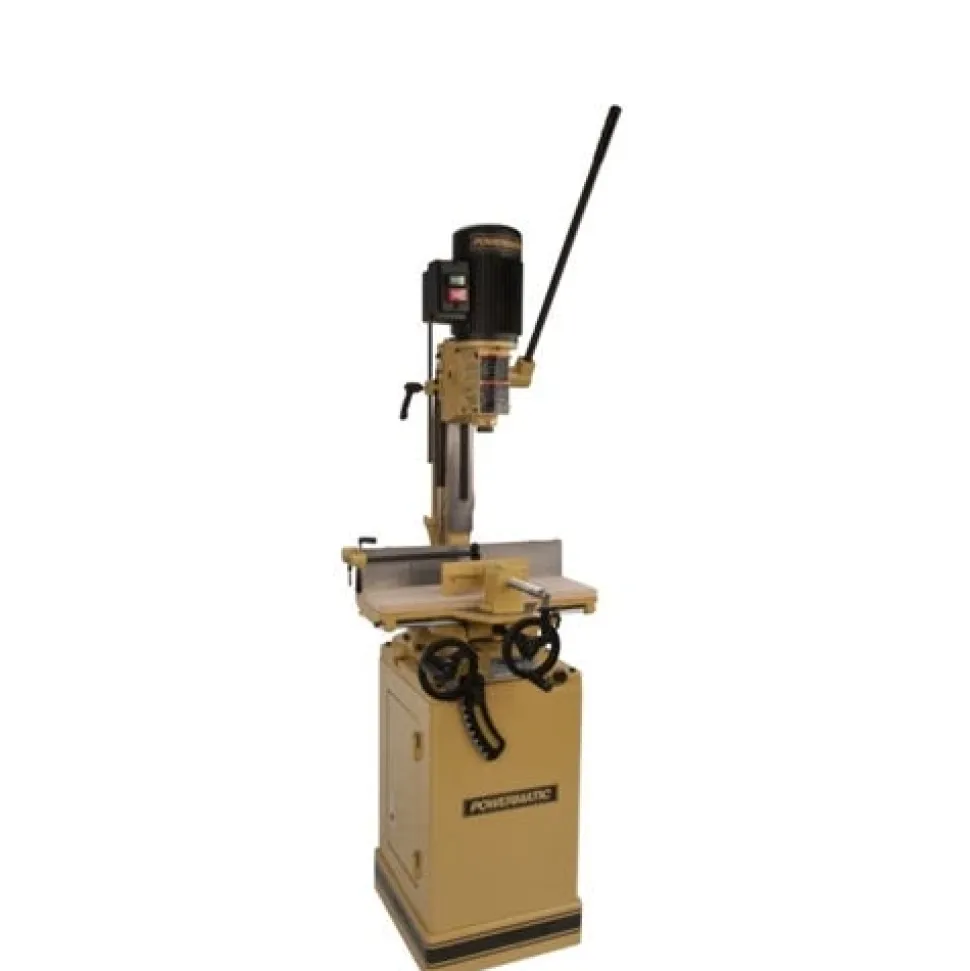

Powermatic Tilt Table Mortiser 719T with Stand 1791264K

• Powermatic
• Sturdy cast iron construction with precision-machined column and table
• Quick position table mounted swiveling vise clamp accommodates angled work pieces
• Feed lever features size positions allowing for quick adjustments
• Table and fence tilt from 0 to 35 for angled mortises
• Gas cylinder controlled rack and pinion system for smooth head raising and lowering
• Hinged chuck door allows easy access for quick bit changes
• Quick adjust depth stop for uniform mortise depths
• Provided 5/8; 3/4″ and 1-1/8″ bushings allow multiple chisel shank sizes
• Handwheels control smooth linear and cross table motions
• Adjustable work stop for repeat cuts
• Specifications
• Part Number: 1791264K
• Spindle Speed: 1725 RPM
• Chuck Size: in
• Chisel Capacity: 1/4 – 1 in
• Chisel Shank Capacity: 5/8; 3/4; 1 1/8 in
• Head Stroke: 6″
• Chisel Center to Fence: 4 in
• Fence Size (L x H): 4 1/2 x 20 1/4 in
• Base Size: 14 x 16 in
• Base Overall Height: 60 in
• Bushing Size: 5/8; 3/4; 1 1/8 in
• Table Size (L x W): 7 x 20 1/4 in
• Table Tilt: 0 to 35
• Table Travel – Longitudinal: 15 in
• Table Travel – Cross: 4 in
• Motor Power: 1 HP
• Motor Voltage: 115 / 230 V
• Prewired Voltage: 115 V
• Motor Phase: 1 Ph
• Motor Current: 11 / 5.5 A
• Chisel Stroke: 10.75 in
• Model Number: 719T
• Brand: Powermatic
• Overall Dimensions: 21-1/4 x 21-5/8 x 74
• Height: 74 inch
• Width: 21.625 inch
• Length: 21.25 inch
• Net Weight: 276 pound

“
