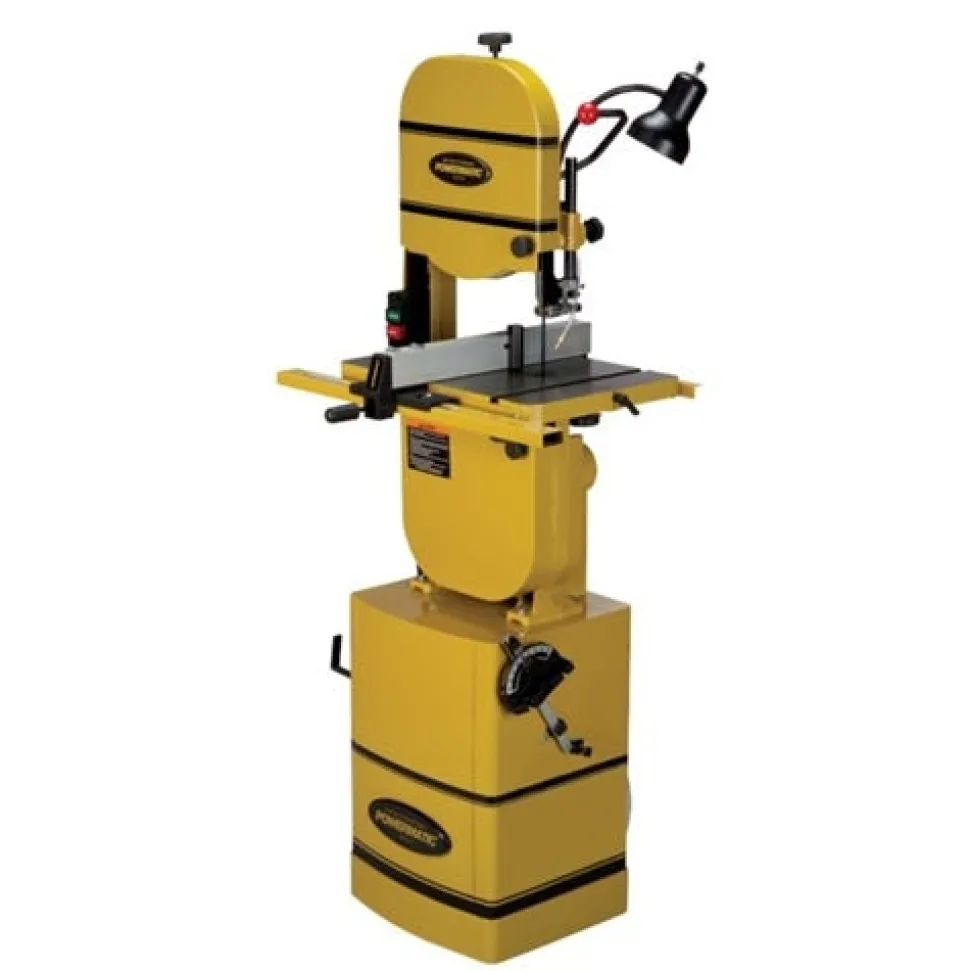

Powermatic PWBS 14″ Bandsaw 1791216K

• Powermatic
• CARTER quick tension lever speeds blade changes; and the de-tension setting extends blade life during non-use
• Extra-large; two piece cast iron table consists of a 15 x 15″ tilting section and a fixed 15″ x 5″ extension for a total working surface area of 15″ x 20″
• Chip blower ensures a clean; visible cut line
• Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
• Exclusive design; quick-release precision T-square style rip fence with 4″ resaw attachment
• Precision balanced; nine spoke cast iron wheels reduce vibration
• Easy to read tensioning gauge settings indicated in inblade widthin increments
• Full 6″ under guide capacity with 13-1/2″ width capacity
• 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
• Rigid one-piece welded stand requires no assembly
• Standard Equipment:
• CARTER quick tension release
• Adjustable miter gauge
• T-style rip fence with resaw assembly
• 3/8″ bandsaw blade
• Gooseneck work lamp and chip blower
• Specifications
• Part Number 1791216K
• Cutting Capacity Width: 13 in
• Cutting Capacity Height: 6″
• Minimum Saw Blade Width: 1/8″
• Maximum Saw Blade Width: in
• Blade Speed: 3000 SFPM
• Blade Length: 93 in
• Table Dimension (LxW): 15 X 15 in
• Table Dimension with Extension (LxW): 15 x 20 1/2″
• Table Tilt: 10 left; 45 right
• Table Height From Floor: 44″
• Dust Port Outer Diameter: 4 in
• Stand Type: Closed
• Thickness Capacity (max): 6 in
• Bandsaw Size: 93 in
• Wheel Diameter : 14 in
• Motor Power: 1 HP
• Motor Voltage: 115 / 230 V
• Prewired Voltage: 115 V
• Motor Current: 11 / 5.5 A
• Motor Phase: 1 Ph
• Model Number: PWBS-14CS
• Brand: Powermatic
• Overall Dimensions: 20 x 34 x 68
• Height: 68 inch
• Width: 34 inch
• Length: 20 inch
• Net Weight: 250 pounds

“
