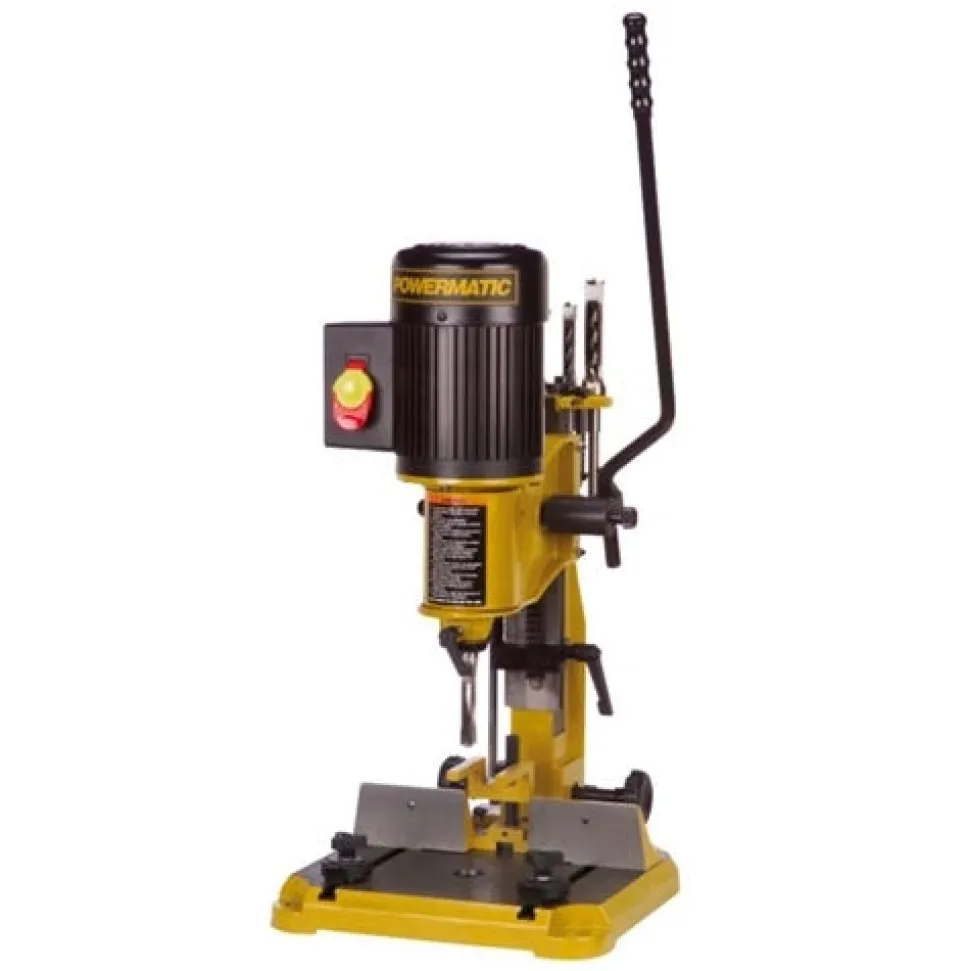

Powermatic PM701 Benchtop Deluxe Mortiser 1791310

• Powermatic
• In-line depth stop allows stopping at pre-set depths without racking the bit to the base
• Heavy-duty reversible handle can be installed to either side of the head without tools
• Stock hold-down with a double lock system; top and side; to eliminate slippage of workpiece
• Quick action cam lock will quickly lock fence in position with one 90 movement
• 2 integrated bit and chisel spacers for quick set up
• Large work surfaces on both table and fence for greater stability and accuracy
• Large; hinged chuck door with magnetic catch for rapid access to the chuck
• Rack and pinion design for simple fence adjustments
• Standard Equipment:
• Integrated chisel and tool holder with sharpening stone
• 1/2 drill chuck with 4″ chuck key
• Removable safety switch key
• Specifications
• Part Number: 1791310
• Spindle Speed: 1725 RPM
• Chuck Size: in
• Chisel Shank Capacity: 3/4 in
• Head Stroke: 5 in
• Chisel Center to Fence: 4 3/8 in
• Under Hold-Down: 5 in
• Fence Size (L x H): 2 5/8 x 12 1/2 in
• Base Size: 16 5/16 x 13 3/4 in
• Bushing Size: 5/8; 3/4 in
• Table Size (L x W): 11 x 13 in
• Motor Power: HP
• Motor Voltage: 115 / 230 V
• Prewired Voltage: 115 V
• Motor Phase: 1 Ph
• Motor Current: 8 / 4 A
• Model Number: PM701
• Brand: Powermatic
• Overall Dimensions: 24.2 x 19.2 x 17.4
• Height: 17.4 inch
• Width: 19.2 inch
• Length: 24.2 inch
• Net Weight: 93 pound

“
