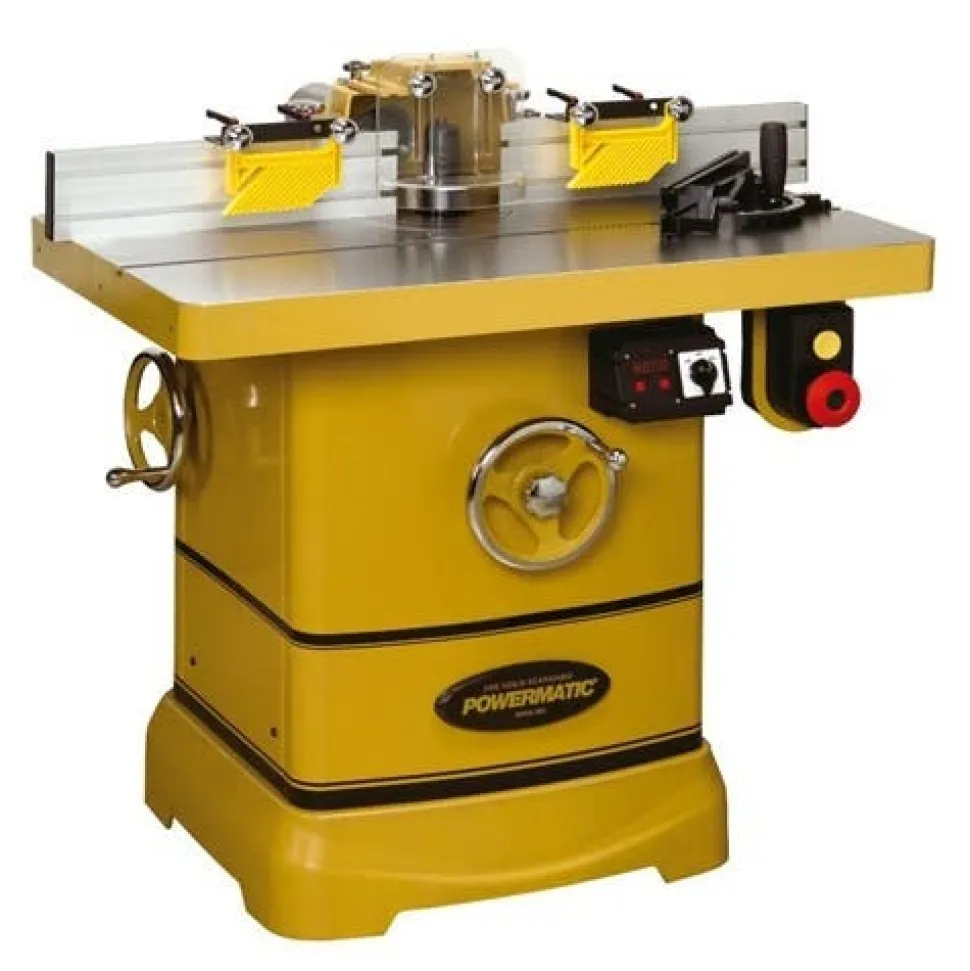

Powermatic PM2700 5HP Shaper 1280101C

• Powermatic
• *** FREE SHIPPING IS AVAILABLE FOR THIS PRODUCT ***
• Integrated caster system built into the cast iron base for instant shop mobility
• Spindle height digital readout for making fine incremental adjustments on multiple passes
• Heavy duty 30 x 40″ precision ground tabletop for smooth stock feeding
• Convenient quick lock belt tensioning for easy speed adjustment
• Industrial fence system with fine adjust dials for more precise positioning
• 3HP totally enclosed motor offers plenty of power
• Two spindle speeds (reversible) for a variety of work
• Superior clear cutter guard promotes safety; allows observation of the entire cut
• Table predrilled and tapped for feeder mounting in two locations
• Fence has dual featherboards for work holding
• Dual 4″ ports for attachment to dust collection system
• Also Available in 230/460; 3 Phase 1280102C
• Standard Equipment:
• 3/4″ and 1-1/4″ interchangeable spindle collets
• Spindle height digital readout
• Featherboard hold downs
• Deluxe miter gauge
• Integrated caster system
• Specifications:
• Part Number: 1280100C
• Spindle Speed: 7500 and 10;000 RPM
• Reversable: Yes
• Spindle Diameter: 3/4 and 1 1/4 in
• Spindle Size Under Nut: 3/4 (3 3/4) and 1 1/4 (6) in
• Spindle Travel: 4
• Table Size: 40 x 30 in
• Table Height From Floor: 35.5 in
• Table Opening Diameter: 7 3/8 in
• Table Insert Opening Diameter: 2 35/64; 4 5/32 and 5 3/4 in
• Fence Size (L x H): 18 3/4 x 4 7/8 in
• Table Inserts: 2 35/64; 4 5/32 and 5 3/4 in
• Router Bit Collet Diameter: 1/4 and 1/2 in (optional)
• Dust Port Outside Diameter: 4 in (dual ports)
• Dust Collection Minimum CFM Required: 600 cu.ft/min
• Electrical Controls – Magnetic Starter: Yes
• Digital Readouts : spindle height
• Motor Power: 5 HP
• Motor Voltage: 230 V
• Motor Current: 14 A
• Motor Phase: 1 Ph
• Web Description: PM2700 Shaper; 5HP 1PH 230V
• Model Number: PM2700
• Overall Dimensions: 40x37x45
• Height: 45 inch
• Width: 37 inch
• Length: 40 inch
• Net Weight: 769 pound

“
