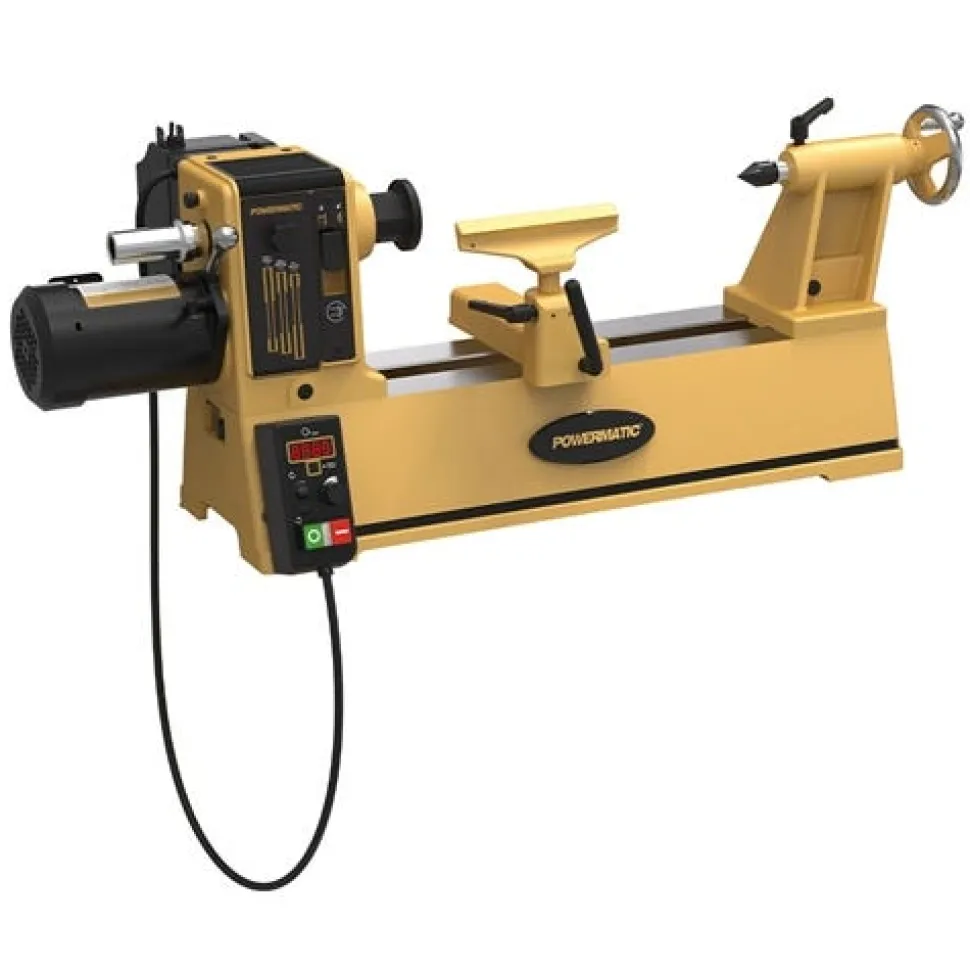

Powermatic PM2014 1HP 115V Input Wood Bench Lathe 1792014

Powermatic

PM2014 1HP 115V Input Wood Bench Lathe 1792014

For nearly one hundred years; Powermatic has been dedicated to woodworkers. As a market leader in woodturning; Powermatic is proud to offer the accessible PM2014 lathe.

FEATURES:

• Only requiring a 115V single phase power source; the inverter delivers 1HP; 230V; 3PH performance; giving users maximum speed with minimum input.
• The new ergonomic stand adjusts from centerline to floor from 34 to 46″ allowing the PM2014 to be accessible to users of a range of heights.

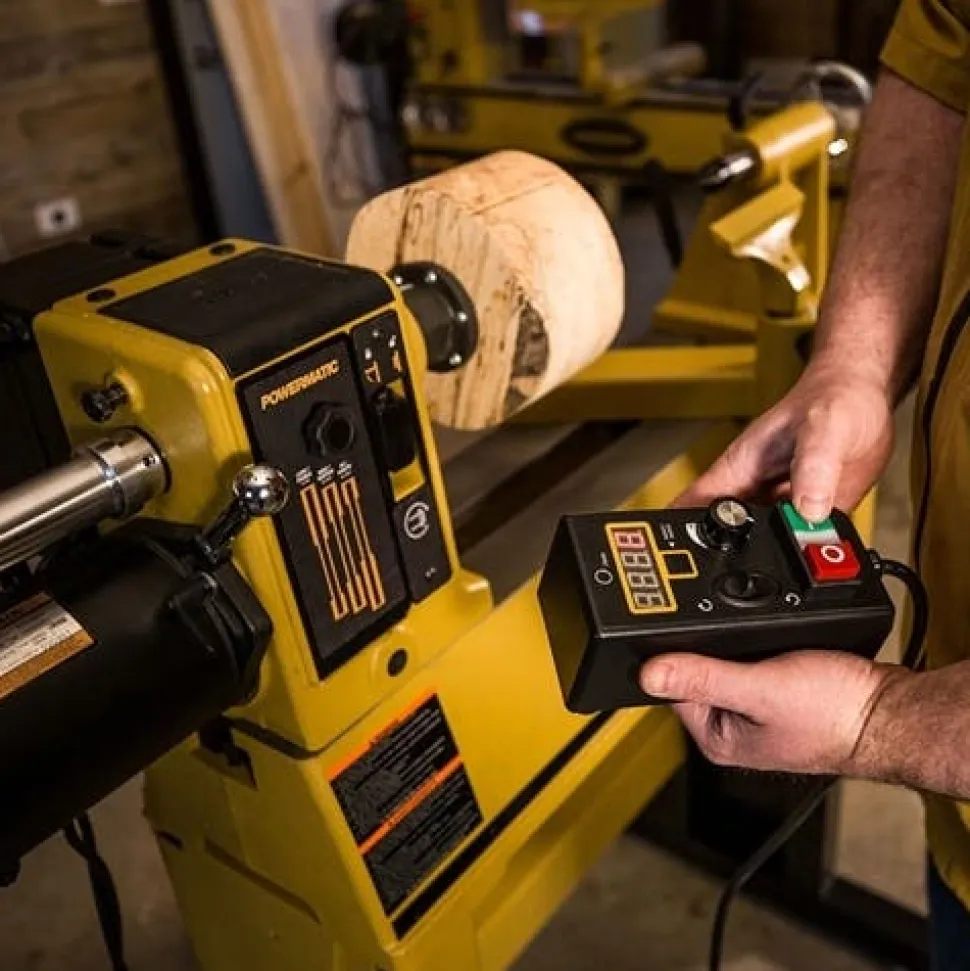

• Digital indexing and spindle speed readout are clearly visible on the magnetic repositionable control box.
• With a capacity of 14″ swing over bed and 20″ between centers which can be increased with the optional 13″ bed extension.

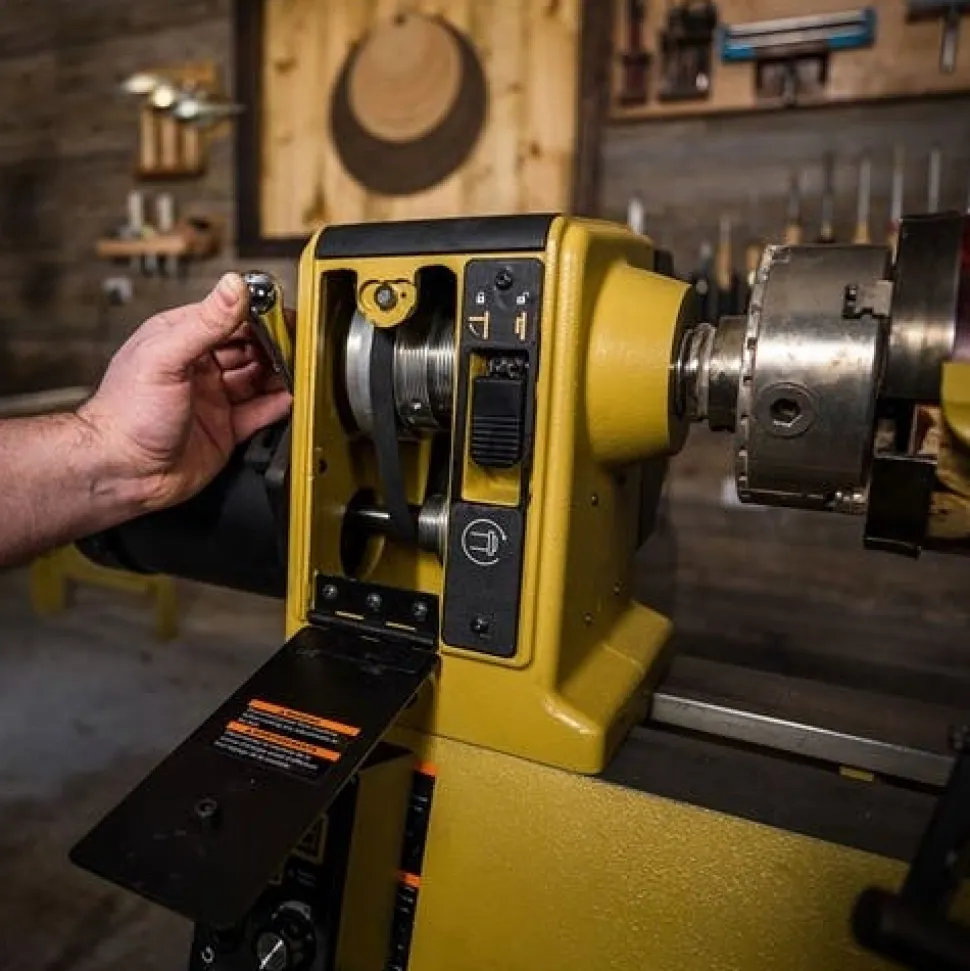

• Premium sliding headstock feature allows greater clearance when positioned at the end of the bed for outboard turning.

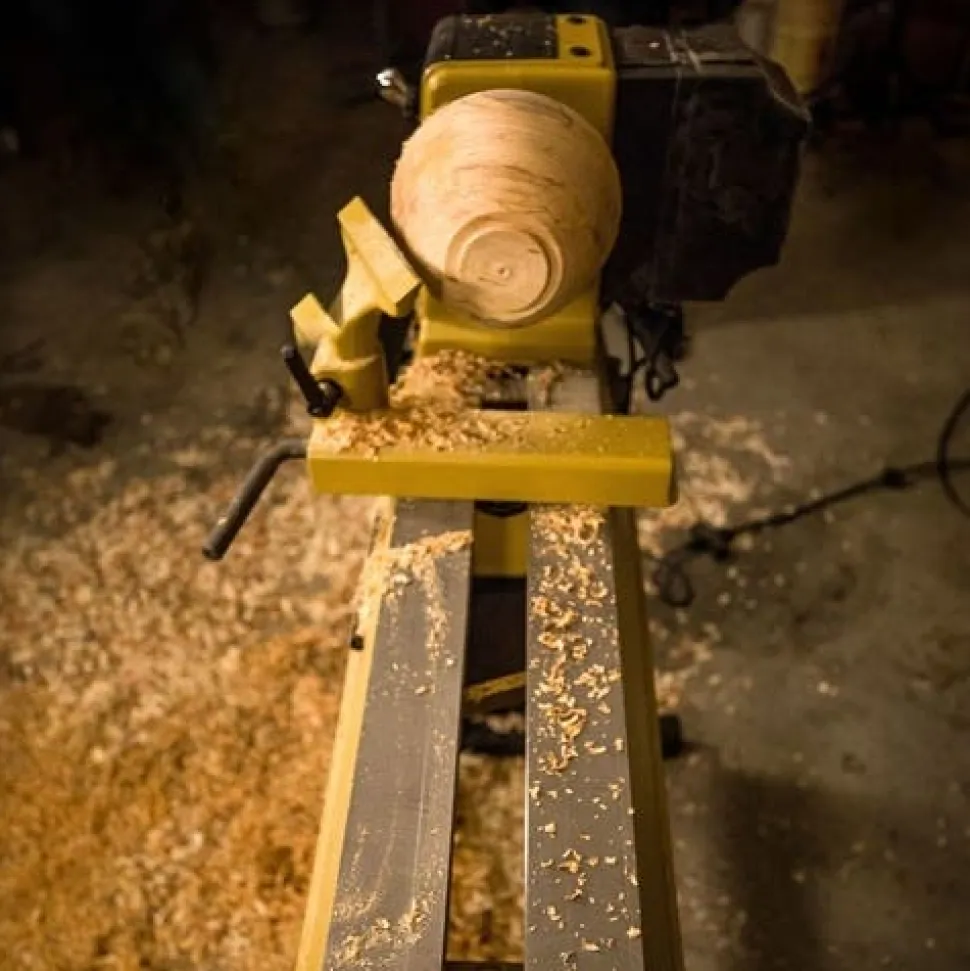

• Robust cast iron bed reduces vibration when turning larger and more precise pieces.
• The easy-to-read digital speed and indexing readout is conveniently located on the movable control box and delivers accurate speed readings and simplifies the indexing process for professional precision.
• The robust cast iron bed reduces vibrations for a smooth experience when turning larger and more precise pieces.

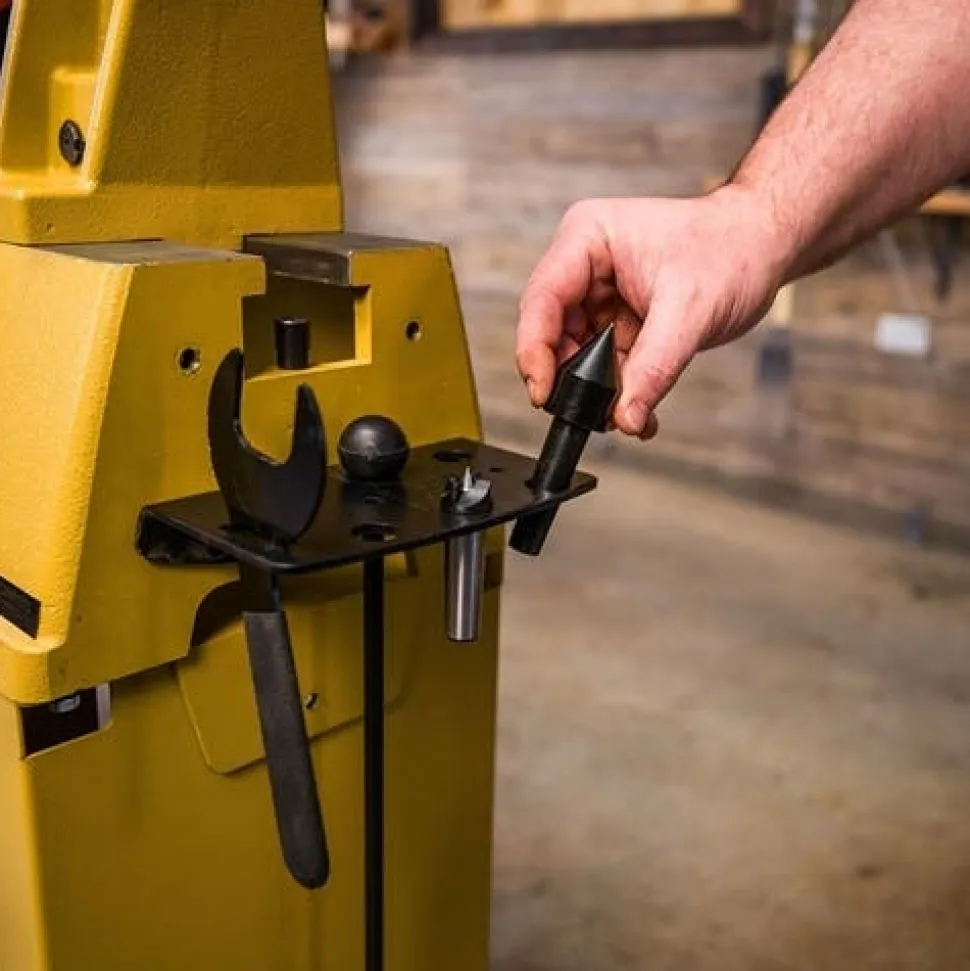

• Attached tool caddy allows convenient access to centers; wrenches; and accessories.
• Banjo features a non-marring; pinch style clamp for solid tool rest placement.

MARKET FOCUS:

• Professional Woodworkers.
• Woodturning Hobbyists.
• Furniture Makers.
• Bowl and Plate Turners.
• Students and Instructors.

SPECIFICATIONS:

Motor
Motor (TEFC)	1HP/230V/3Ph
Input Power Requirements	115V
Capacities
Swing Over Bed (in.)	14-1/4″
Swing Over Tool Rest Base (in.)	10-3/4″
Working Distance Between Centers (in.)	19-1/4″ (w/ stop bolt): 20-1/4″ (w/o stop bolt)
Outboard Turning Diameter Max. (in.)	20-1/4″
Number of Index Positions	24; positive locking
Bed Length (in.)	20
Spindle
Spindle Thread Size (in. x TPI)	1/4″ x 8
Hole Through Spindle (in.)	3/8″
Spindle Taper	MT2
Speeds (RPM)	15-3600 15-900/ 30-1800/ 60-3600
Hole Through Tailstock (in.)	3/8″
Tailstock Quill Taper	MT2
Tail Stock Quill Travel (in.)	ACME lead screw; 4-1/4″
Centerline of Spindle to Floor (in.)	N/A
Dimensions
Overall Dimensions (L x W x H / in.)	52″ x 24″ x 18″
Net Weight (lbs.)	185

“
