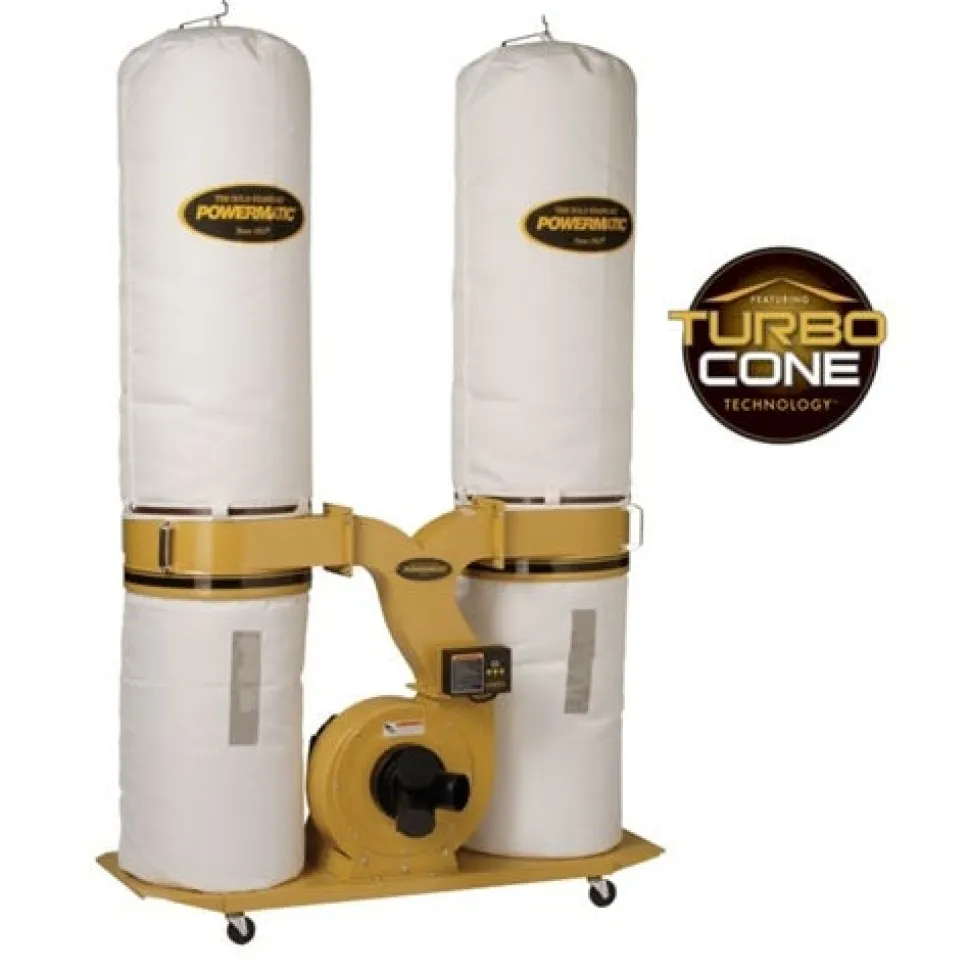

Powermatic PM1900 3HP Dust Collector w/ Bag Filter Kit 1792071K

• Powermatic
• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• All-metal duct construction for rigidity and improved air flow
• 30-micron filter bags for improved capture of fine dust particles
• The large impeller is powered by a 3HP motor for peak performance
• Triple 4 dust ports allow for several hoses to be attached at the same time
• Cloth collection bags with view window use a snap ring for rapid installation/removal
• 10 cubic feet collection bag capacity reduces number of bag changes.
• Tall filter bags require less cleaning due to the larger surface area
• Four swivel casters for easy maneuverability
• Also available with 3 phase motor. Call (800) 242-4424 for details.
• Specifications
• Part Number: 1792071K
• Trademark: TurboCone
• Remote Control: Yes
• Sound Rating: 86 – 92 dB
• 1-Hose Connection Diameter: 8 in
• 2-Hoses Connection Diameter: 4 in
• 3-Hoses Connection Diameter: 4 in
• Bag Diameter: 20 in
• Filter Bag/Canister Length: 48 in
• Collection Bag Capacity: 10 cubic foot
• Collection Bag Length: 30 in
• Air Flow @ 4: 234 cu.ft/min
• Air Flow @ 8″: 1;754 cu.ft/min
• Static Pressure: 11.31 inch of water
• Particle Size (Micron): 96% of 30 micron particles
• Velocity @ 4″: 5;200 foot per minute
• Air Inlet: (1) at 8″ or (3) at 4″
• Impeller Diameter: 14 in
• Impeller Fins: 7
• Impeller Material: steel
• Separator Tank Diameter: 20 in
• Separator Tank Height: 10 in
• Motor Power: 3 HP
• Motor Phase: 1 Ph
• Motor Voltage: 230 V
• Prewired Voltage: 230 V
• Motor Current: 15 A
• Web Description: PM1900TX-BK1 Dust Collector; 3HP 1PH 230V; 30-Micron Bag Filter Kit
• Model Number: PM1900TX-BK1
• Brand: Powermatic
• Overall Dimensions: 46 x 23 x 28 (shipped); 61 x 30 x 94 (assembled)
• Height: 28 inch
• Width: 23 inch
• Length: 46 inch
• Net Weight: 211 pound

“
