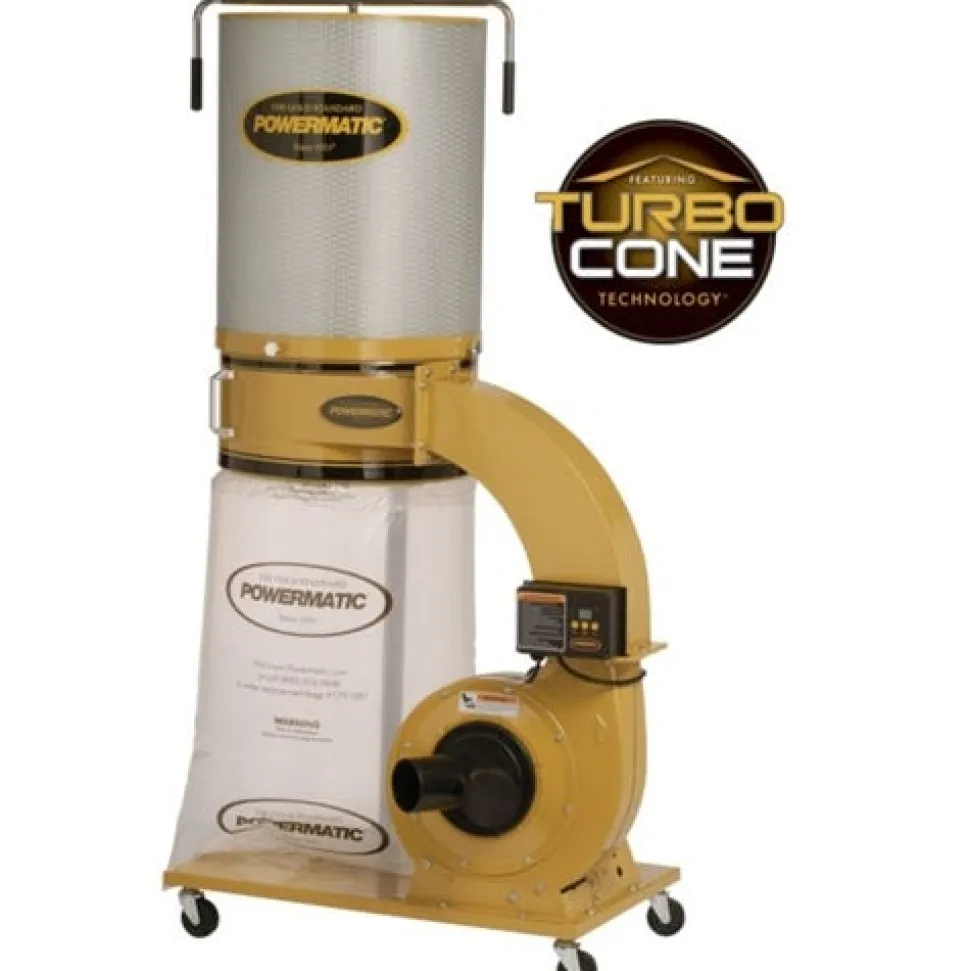

Powermatic PM1300 Dust Collector with Canister Kit 1791079K

• Powermatic
• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• Canister filter offers over six times filtering surface area of standard bags
• All-metal duct construction for rigidity and improved air flow
• Dual 4 dust ports for simultaneous collection from two machines
• 1-3/4HP motor offers plenty of power for effective air movement
• Collection bag uses a snap ring for rapid installation and removal
• 10 cubic feet capacity collection bag reduces number of bag changes.
• Four swivel casters for easy maneuverability
• Specifications
• Part Number: 1791079K
• Trademark: TurboCone
• Remote Control: Yes
• Sound Rating: 75 – 90 dB
• 1-Hose Connection Diameter: 6 in
• 2-Hoses Connection Diameter: 4 in
• Bag Diameter: 20 in
• Filter Bag/Canister Length: 26 in
• Collection Bag Capacity: 10 cubic foot
• Collection Bag Length: 30 in
• Air Flow @ 6″: 1;064 cu.ft/min
• Static Pressure: 11.31 inch of water
• Particle Size (Micron): 98% of 2 micron particles: 86% of 1 micron particles
• Velocity @ 6″5;374 foot per minute
• Air Inlet: (1) at 6″ or (2) at 4″
• Impeller Diameter: 12 in
• Impeller Fins: 6
• Impeller Material: steel
• Separator Tank Diameter: 20 in
• Separator Tank Height: 10 in
• Motor Power: 1 HP
• Motor Phase: 1 Ph
• Motor Voltage: 115 / 230 V
• Prewired Voltage: 115 V
• Motor Current: 15 / 7.5 A
• Web Description: PM1300TX-CK Dust Collector; 1.75HP 1PH 115/230V; 2-Micron Canister Kit
• Model Number: PM1300TX-CK
• Brand: Powermatic
• Overall Dimensions: 45 x 23 x 30 (shipped); 37 x 29 x 72 (assembled)
• Height: 30 inch
• Width: 23 inch
• Length: 45 inch
• Net Weight: 154 pound

“
