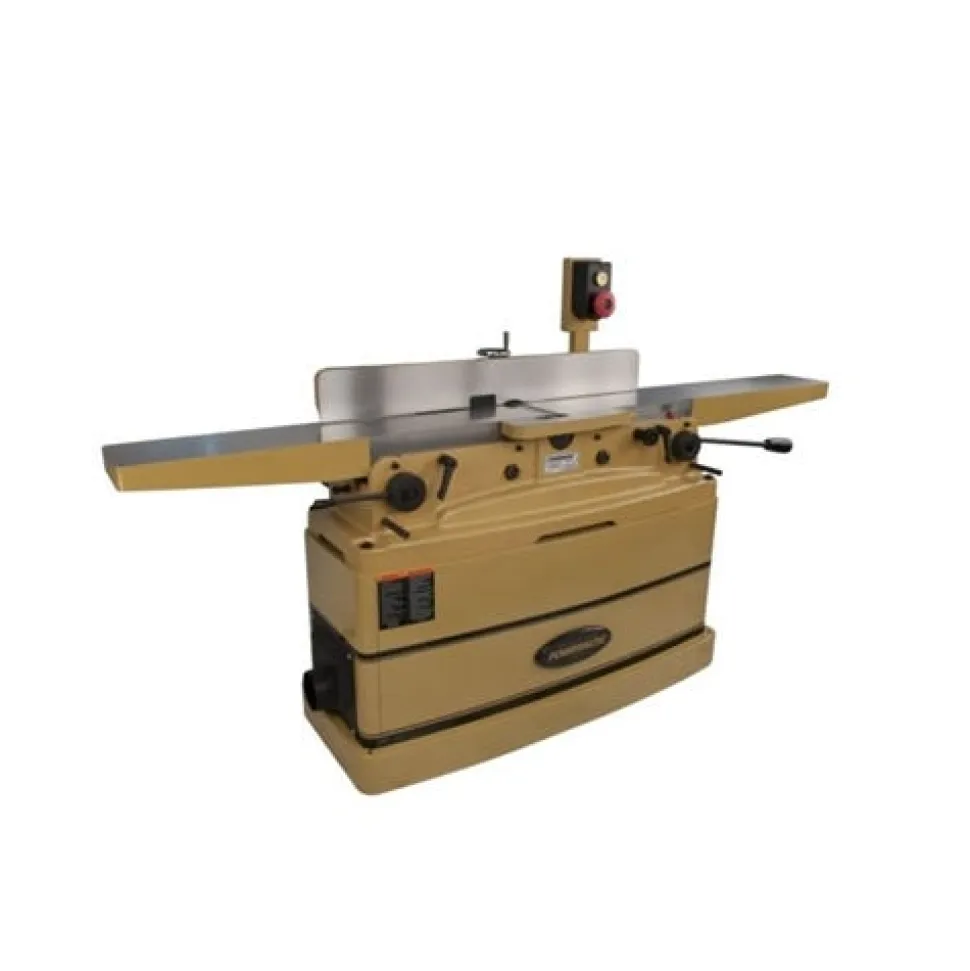

Powermatic PJ882HH 8 Parallelogram Jointer w/ Helical Cutterhead 1610082

Powermatic

Powermatic PJ882HH 8 Parallelogram Jointer w/ Helical Cutterhead 1610082

The 8″ Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four-sided knife inserts these produce a superior finish and much quieter operation than conventional cutterheads; and the inserts do not require adjustment once installed.

FEATURES:

• Helical cutterhead with 4-sided carbide knife inserts provides smoother; quieter cutting and finer finish than conventional systems.
• Extra long 82″ table for expanded work support.
• Parallelogram design helps maintain table parallelism and eases table raising and lowering.
• Handwheel with worm gear system for precise fence tilting (Patented).
• 1/8″ depth of cut limiter for fast table positioning.
• High-mount switch for operator convenience.
• No-mar fence insert protects table.

SPECIFICATIONS:

Number of Knives	54
Helical Knife Size (L x W x T) (In.)	15 x 15 x 2.5
Cutterhead Diameter (In.)	3-1/16
Cutterhead Speed (RPM)	7;000
Cutting Capacity (W x D) (In.)	8 x 1/2
Table Size (L x W) (In.)	82 x 8
Table Height from Floor (In.)	31-5/16
Infeed Table Length (In.)	44
Outfeed Table Length (In.)	38
Rabbeting Capacity (In.)	NA
Fence Size (L x H) (In.)	44-3/4 x 38-3/16
Fence Tilt (Deg.)	45 Forward; 45 Backward
Fence Positive Stops (Deg.)	45; 90; -45
Dust Collection Minimum CFM Required (CFM)	450
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	2
Motor Phase	1
Motor Voltage (V.)	230 Only
Motor Current (Amps)	9
Recommended Circuit Size (Amps.)	20

“
