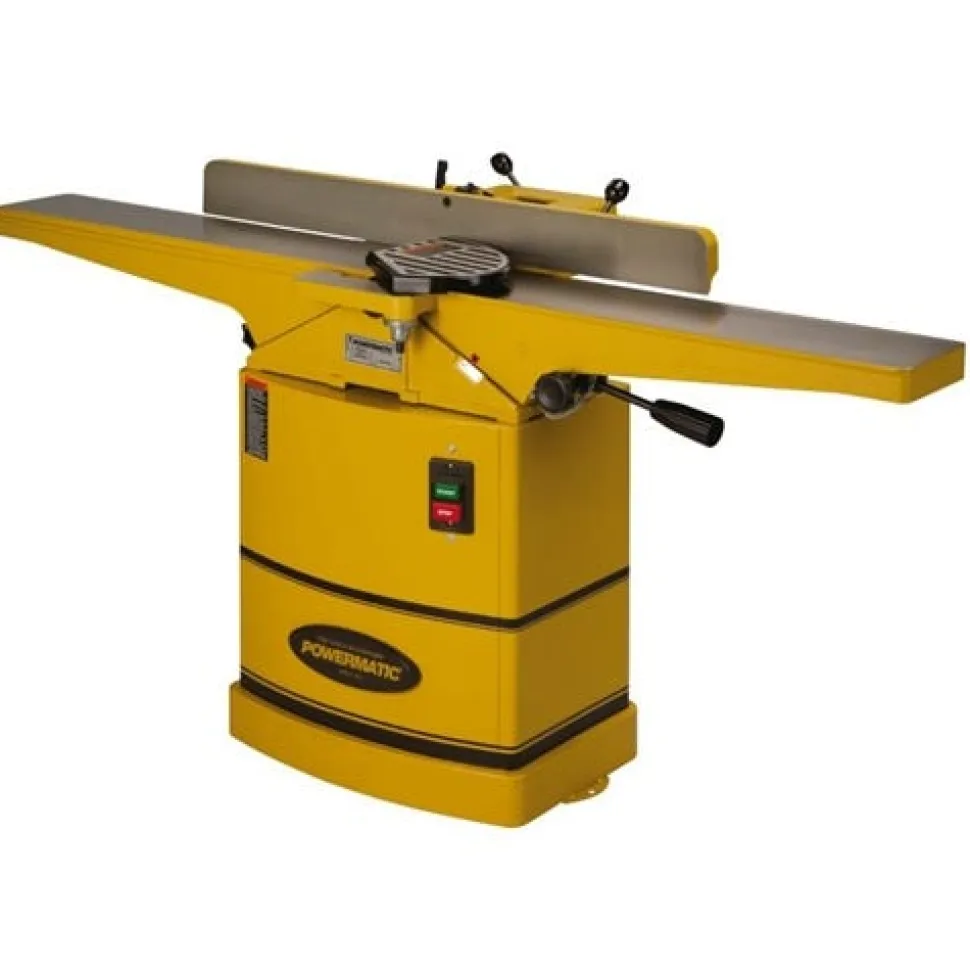

Powermatic 54HH 6″ Jointer w/ Helical Cutterhead 1791317K

Powermatic

Powermatic 54HH 6 Jointer w/ Helical Cutterhead 1791317K

This 6″ Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts this design provides a superior finish and quieter operation compared to conventional cutterheads; and the inserts require no adjustment once they are installed. If a knife insert becomes nicked; simply rotate it for a fresh edge and continue working.

FEATURES:

• Helical cutterhead with 4-sided carbide inserts provides smoother; quieter cutting and finer finish than conventional systems.
• 66″ long adjustable infeed and outfeed tables provide more working surface.
• Fine/quick adjustment lever on infeed table for precision cuts.
• Extra-long 38″ two-way tilting fence with positive stops provides quick positioning for 90 or bevel cuts.
• Enlarged sheet metal stand provides a sturdy base.
• 1HP motor offers plenty of power.
• Fence controls are center-mounted for convenience.
• Push button switch is lockable to prevent accidental starting.
• 4″ port for dust collection

STANDARD EQUIPMENT:

• 1HP TEFC Motor.
• Two push blocks.
• Dust collection port.
• Cutterhead guard.
• Industrial push-button switch.

SPECIFICATIONS:

Number of Knives	40
Helical Knife Size (L x W x T) (In.)	15 x 15 x 2.5
Cutterhead Speed (RPM)	6;000
Cutting Capacity (W x D) (In.)	6 x 1/2
Table Size (L x W) (In.)	66 x 7-1/4
Table Height from Floor (In.)	31-1/2
Infeed Table Length (In.)	32-1/2
Outfeed Table Length (In.)	32-1/2
Rabbeting Capacity (In.)	NA
Fence Size (L x H) (In.)	38 x 4
Fence Tilt (Deg.)	45 Forward; 45 Backward
Fence Positive Stops (Deg.)	45; 90; -45
Dust Collection Minimum CFM Required (CFM)	450
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1
Motor Phase	1
Motor Voltage (V.)	115/230
Prewired Voltage (V.)	115
Motor Current (Amps)	13/6.5
Recommended Circuit Size (Amps.)	20/10

“
