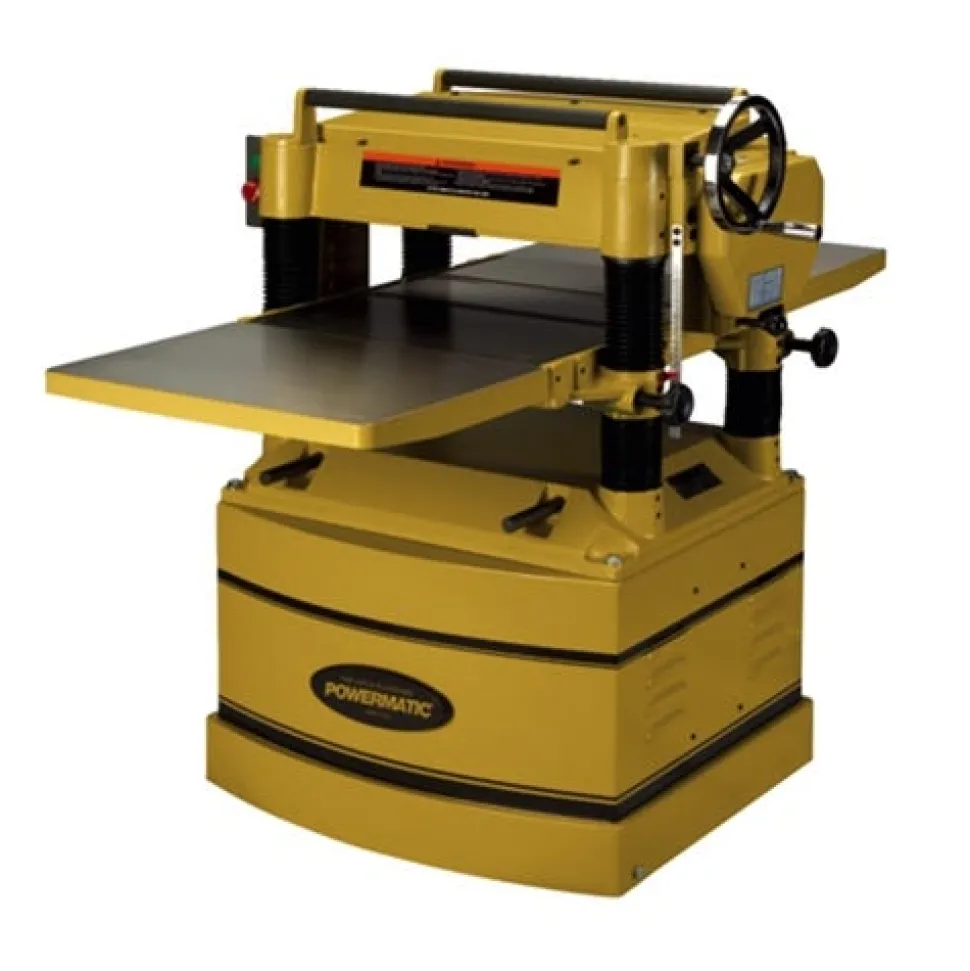

Powermatic 209 20″ Planer w/ Helical Cutterhead 1791315

Powermatic

Powermatic 209 20 Planer w/ Helical Cutterhead 1791315

This heavy duty planer offers performance and value; loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20″ planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems; and the four-sided knife inserts seat themselves without requiring a set-up gauge.

FEATURES:

• The helical cutterhead with four-sided knife inserts provides smoother; quieter cutting and finer finish than conventional systems.
• 5HP motor and 20″ planing capacity for heavy duty work.
• Fully enclosed base cabinet with integrated casters for shop mobility.
• Cast iron table with extensions creates a big 55-1/2″ x 20″ working area.
• Four feed speeds – 24 and 31 FPM; 16 and 20 FPM with gear change – provide versatility.
• Feed rollers and cutterhead supported by full cast iron head assembly for rigidity.

STANDARD EQUIPMENT:

• Helical cutterhead with four-sided knife inserts.
• 5″ diameter dust port.
• Cast iron extension tables.

SPECIFICATIONS:

Style (Type)	Planer
Type of Cutterhead	Helical
Knife Size (L x W x T)	15 x 15 x 2.5
Cutterhead Speed (RPM)	5;000
Cutterhead Diameter (In.)	3-3/16
Number of Knives	100
Maximum Full Width Depth of Cut (In.)	3/32
Maximum Planing Width (In.)	20
Maximum Planing Thickness (In.)	8
Minimum Planing Length (In.)	6-3/4
Feed Rate (FPM)	24/31 & 16/20
Number of Speeds	4
Bed Rollers Adjustable from Front	N.A.
Table Support	4 Column
Dust Collection Minimum CFM Required (CFM)	900
Dust Port Outside Diameter (In.)	5
Motor Power (HP)	5
Motor Phase	1
Motor Voltage (V.)	230 only
Motor Current (Amps)	28
Recommended Circuit Size (Amps.)	40

“
