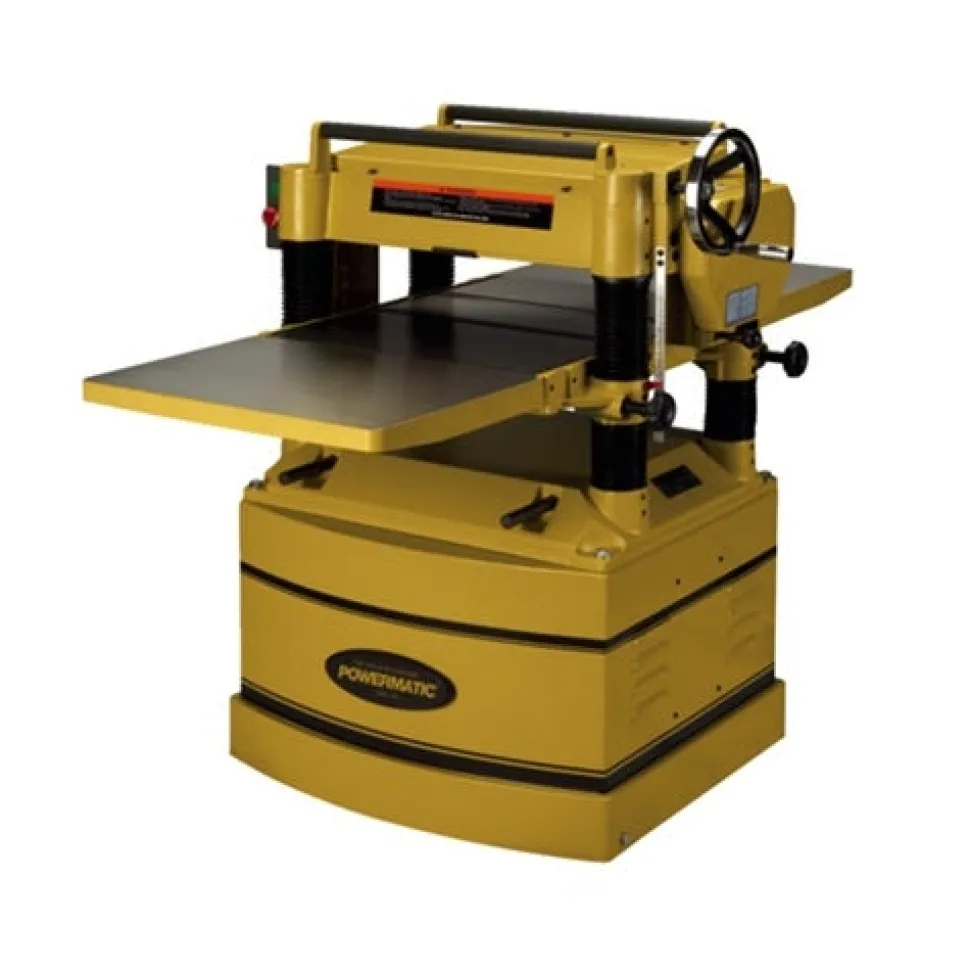

Powermatic 209 20 Planer 1791296

This heavy duty planer offers performance and value; loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20″ planing capacity will handle the most demanding work.

FEATURES:

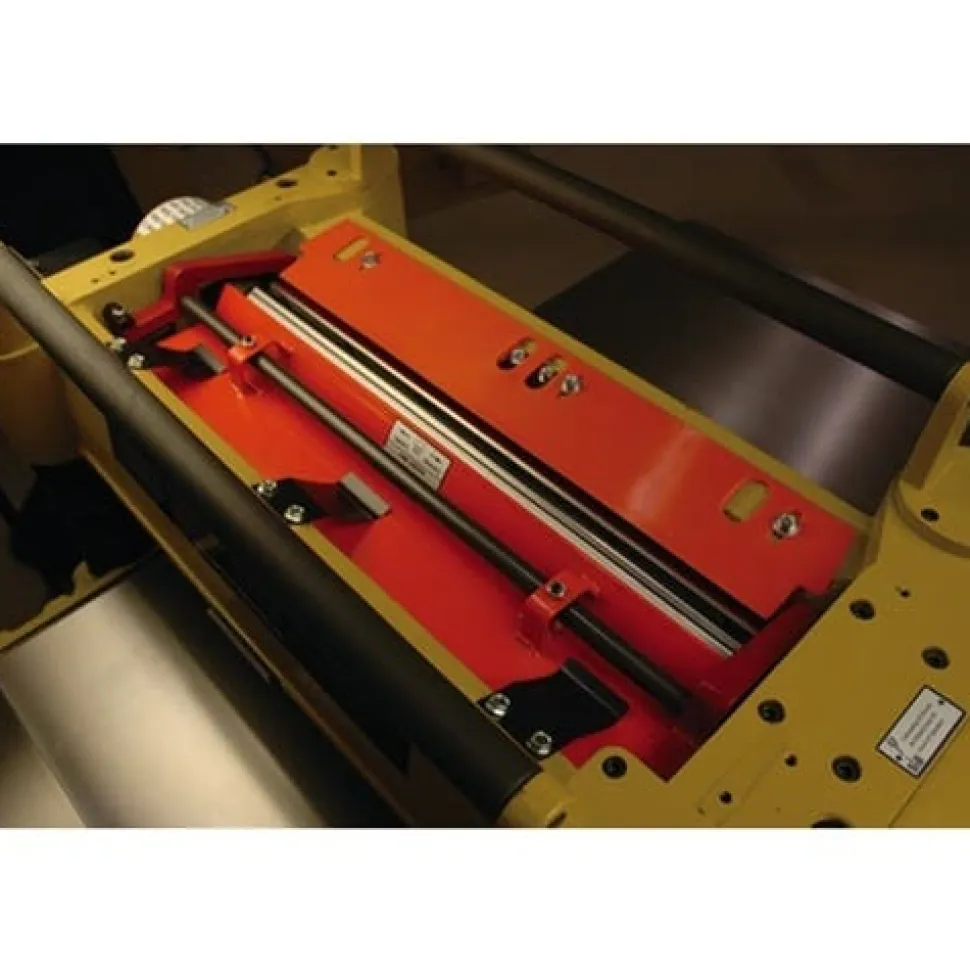

• Knife setting gauge.
• 5HP motor and 20″ planing capacity for heavy duty work.
• Fully enclosed base cabinet with integrated casters for shop mobility.
• Cast iron table with extensions creates a big 55-1/2″ x 20″ working area.
• Four feed speeds – 24 and 31 FPM; 16 and 20 FPM with gear change – provide versatility.

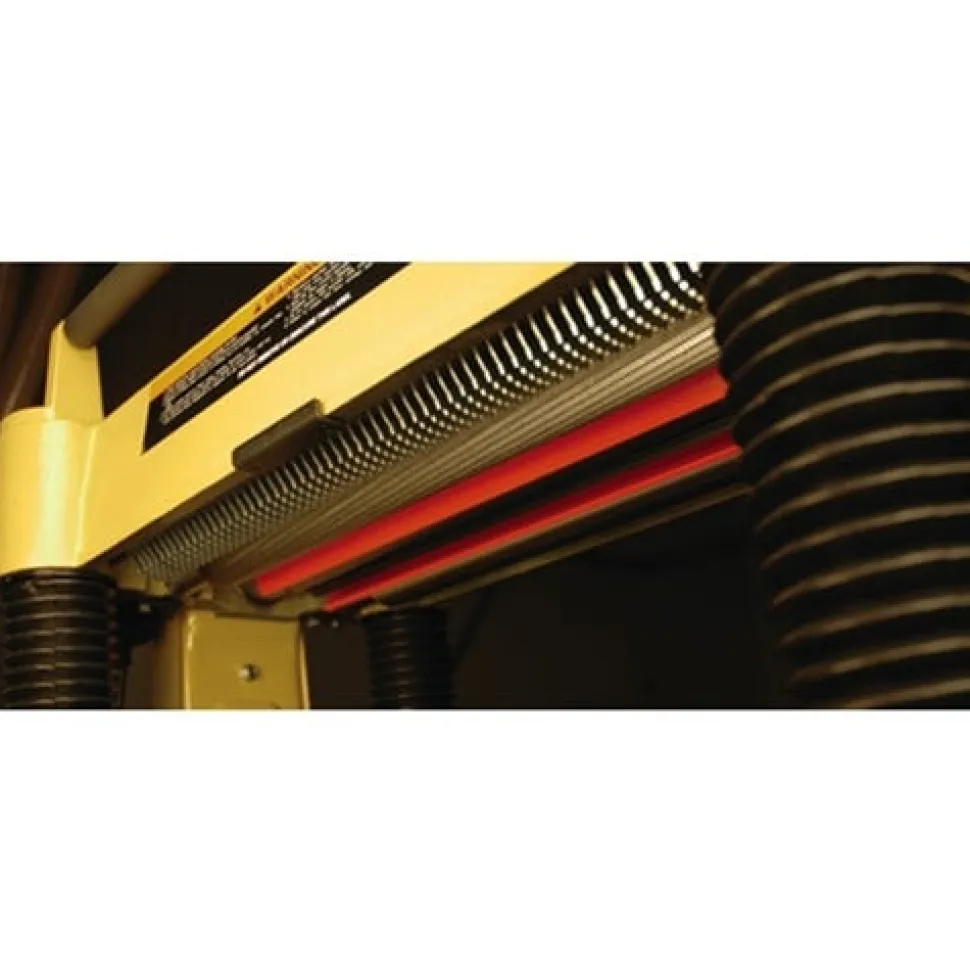

• Feed rollers and cutterhead supported by full cast iron head assembly for rigidity.

STANDARD EQUIPMENT:

• Single-sided knives.
• 5″ diameter dust port.
• Cast iron extension tables.

SPECIFICATIONS:

Style (Type)	Planer
Type of Cutterhead	Straight Knife
Knife Size (L x W x T)	20 x 1 x 1/8
Cutterhead Speed (RPM)	5;000
Cutterhead Diameter (In.)	3-3/16
Cuts Per Minute	20;000
Number of Knives	4
Maximum Full Width Depth of Cut (In.)	3/32
Maximum Planing Width (In.)	20
Maximum Planing Thickness (In.)	8
Minimum Planing Length (In.)	6-3/4
Feed Rate (FPM)	24/31 & 16/20
Number of Speeds	4
Range of Speeds	24/31 & 16/20
Bed Rollers Adjustable from Front	N.A.

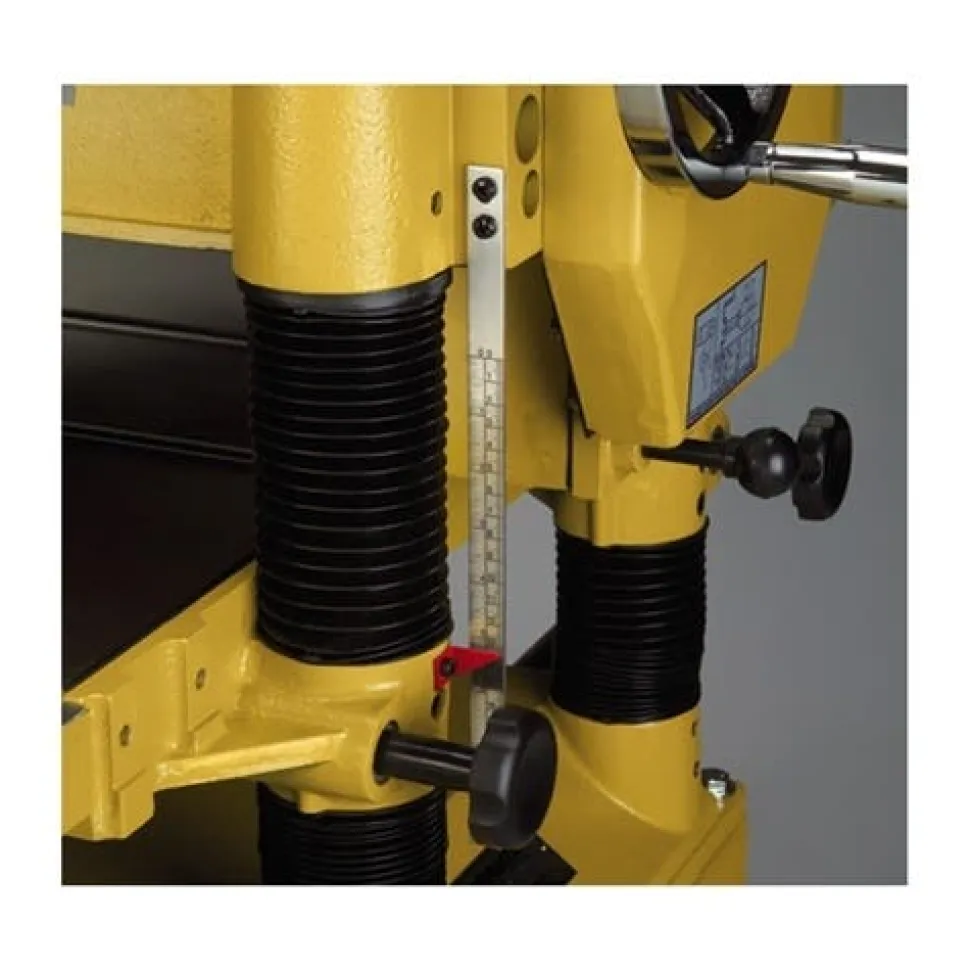

Table Support	4 Column
Dust Collection Minimum CFM Required (CFM)	900
Dust Port Outside Diameter (In.)	5
Motor Power (HP)	5
Motor Phase	1
Motor Voltage (V.)	230 only
Prewired Voltage (V.)	230 only
Motor Current (Amps)	23
Recommended Circuit Size (Amps.)	40

“
