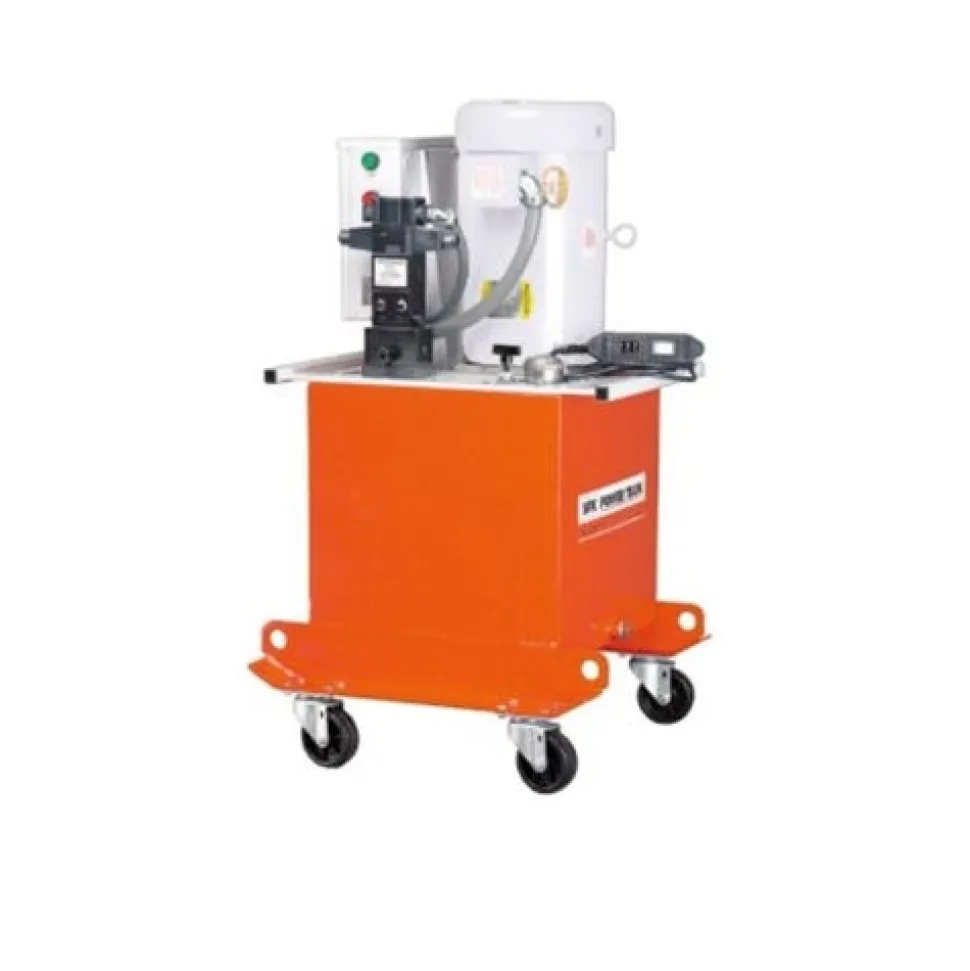

Power Team Up to 1000 Ton Electric Hydraulic Pump – Double Acting PE4004S

Power Team

Up to 1000 Ton Electric Hydraulic Pump – Double Acting PE4004S

FEATURES:

• Financing is available. Click here for details.
• Two-speed high output pump delivers up to 5 gpm of oil.
• Low noise level of 73-80 dBA.
• Integral electrical shut-down feature prevents unintentional restarting of motor following an electrical service interruption.
• Over-current protection prevents damage to motor as a result of overheating.
• inStopin and inStartin control buttons are 24 volt.
• PE4004 has a 4-way/3- position manual valve.
• The PE4004S has a 4-way/3-position solenoid valve with a 24 volt remote hand switch.
• External pressure relief valve is adjustable from 1;500 to 10;000 psi.

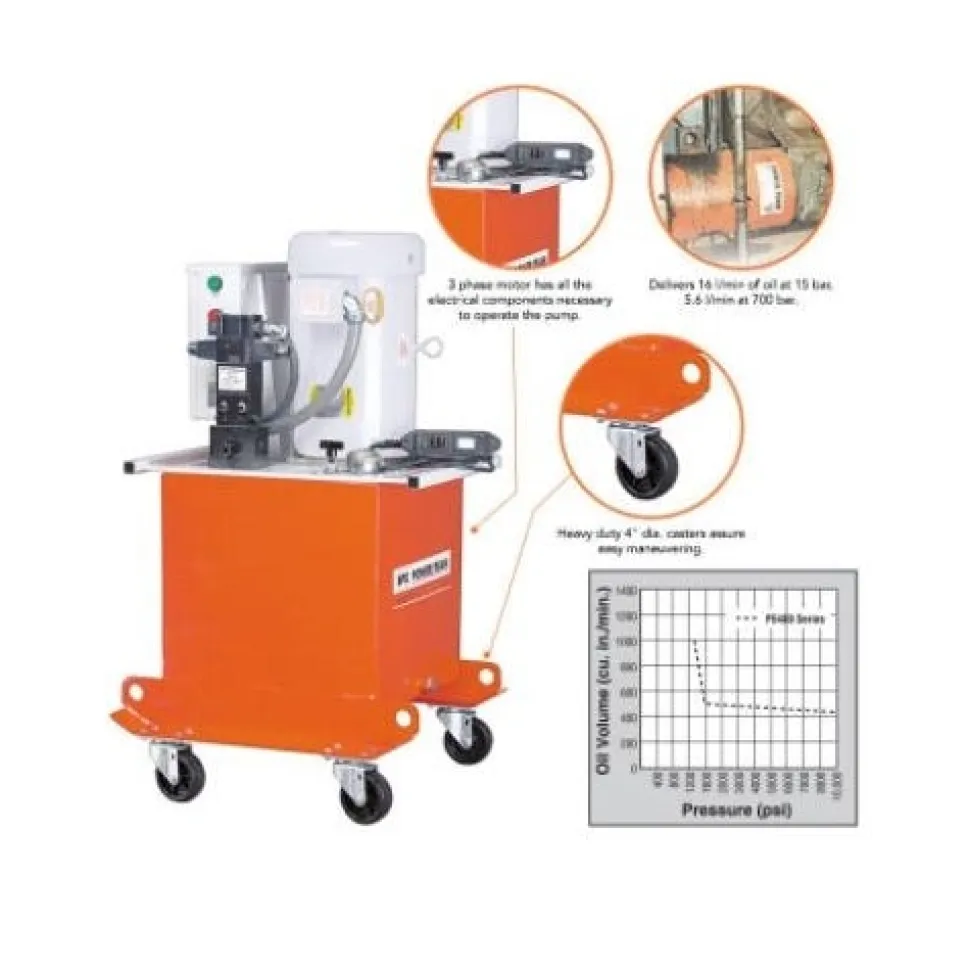

• Heavy duty 4″ dia. casters assure easy maneuvering.
• 20 gallon (3;927 cu. in. usable) reservoir has a low oil level sight gauge.
• Powered by a dual voltage 10 hp; 3 phase; 1;725 rpm motor.
• 3 phase motor has all the electrical components necessary to operate the pump. The customer has no hidden charges when making purchase.
• Deliver 1;200 cu. in./min. of oil @ 200 psi; 420 cu. in./min. of oil @ 10;000 psi.
• Same as PE4004; except has solenoid operated remote valve.

SPECIFICATIONS:

For Use with Cylinder Type	Double-Acting
Description	PE4004; except has solenoid operated remote valve.
Valve Type	4-Way
Valve Number	9512
Valve Function	Advance Hold Return
Motor	10 hp; 208/230/460 volt* 60 Hz; 3 Phase
ReservoirUsable (cu. in.)	1;250
Oil Delivery (cu. in./min. @) 200 psi	1;200
Oil Delivery (cu. in./min. @) 1;200 psi	1;050
Oil Delivery (cu. in./min. @) 5;000 psi	450
Oil Delivery (cu. in./min. @) 10;000 psi	420

“
