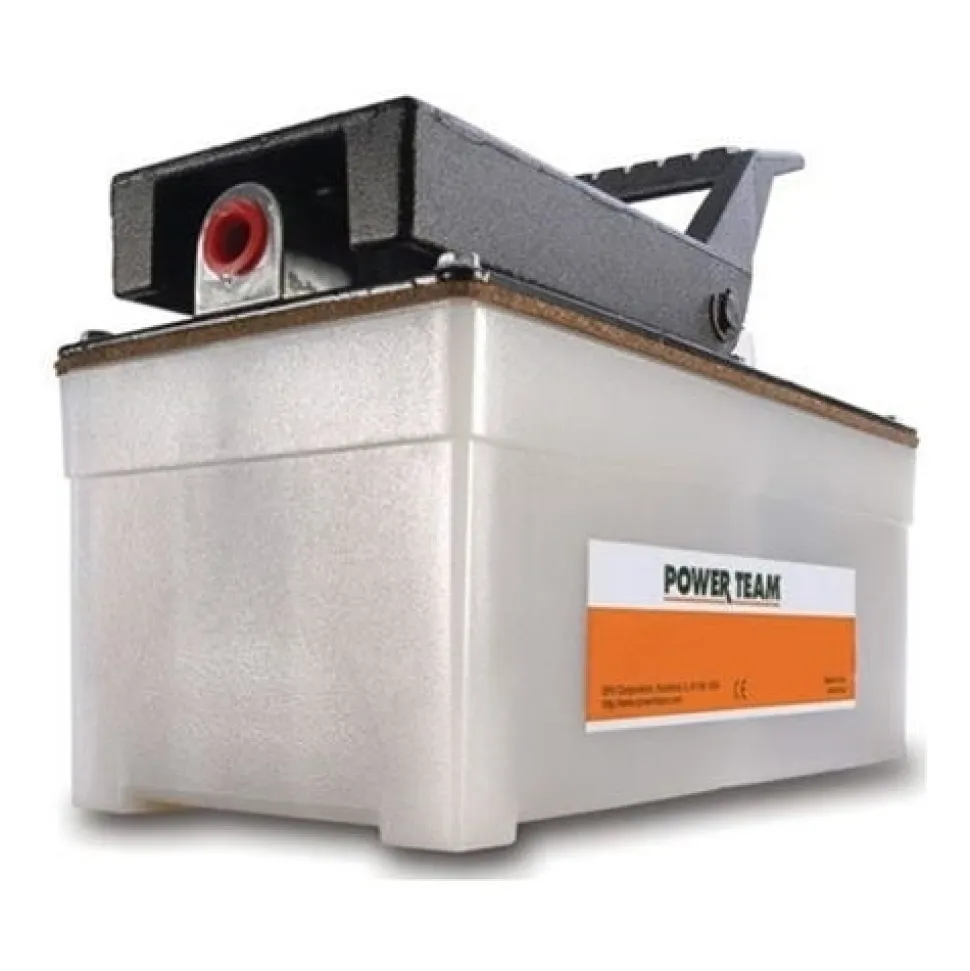

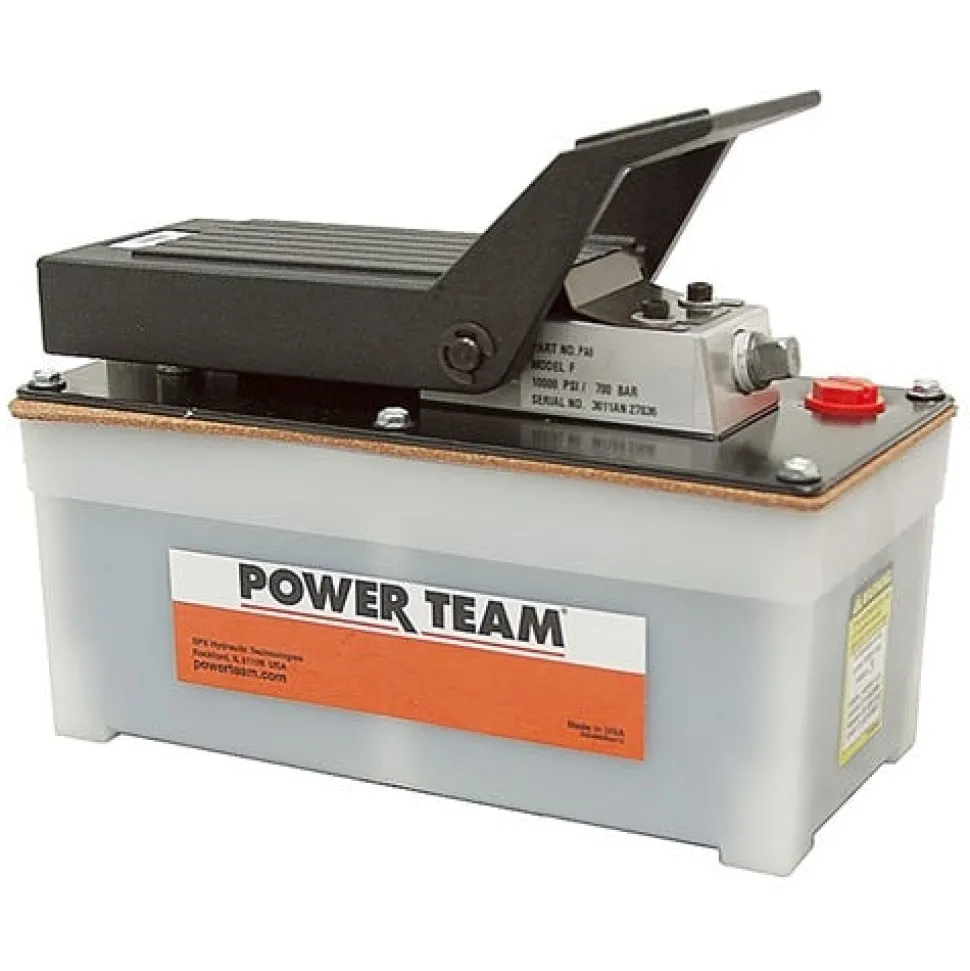

Power Team SPX Air Hydraulic Pump 6 cu. in/min 10,000 psi PA6

Power Team

SPX Air Hydraulic Pump 6 CU. IN/MIN 10;000 PSI PA6

FEATURES:

• The single-speed pumps designed to drive single-acting cylinders or tools are compact; lightweight; and portable.
• Operate with 40-100 psi standard shop air pressure at the pump. The air over hydraulic system uses this lower air pressure to builds hydraulic pressure to 10;000 PSI.
• Internal relief valves protect circuit components; air inlet filter protects motor.
• All metal air motor; ductile iron pump. Serviceable pump motor is not a throw away”; providing economical repair.
• Foot peddle pump or treadle pump allows user to control the hydraulic pressure and flow for the system.
• The power unit of choice for major manufacturers of auto body; frame straighteners and other equipment.

SPECIFICATIONS:

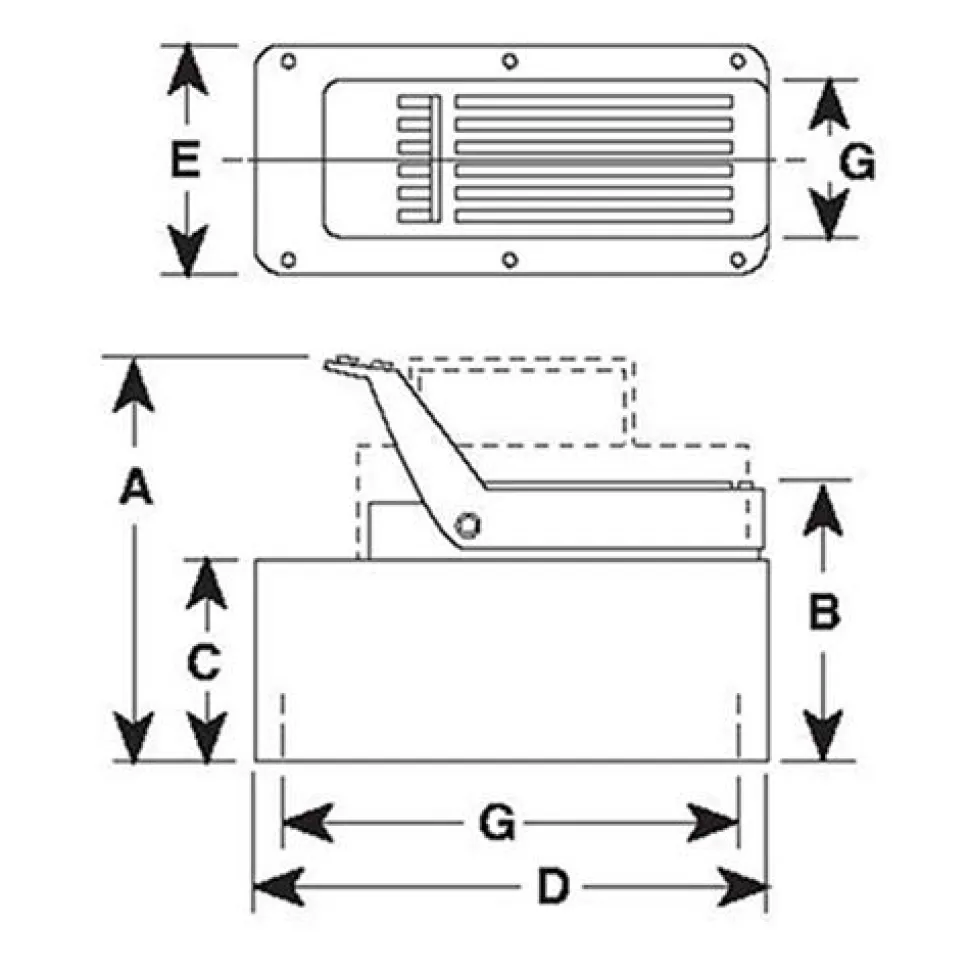

DIMENSIONS (IMAGE)
A	7-3/4″
B	5-7/8″
C	4-3/8″
D	9-1/2″
E	5″
G	4″ x 9″
GENERAL SPECIFICATIONS
Air Supply Required (psi)	40-120
Reservoir Capacity (Cu. In.)	105
Reservoir Usable (Cu. In.)	98
Oil Port (In.)	3
Maximum Pressure (psi)	10;000
Typical Flow at Max psi	6 in³/min
Outlet Port Size	3/8 NPTF

“
