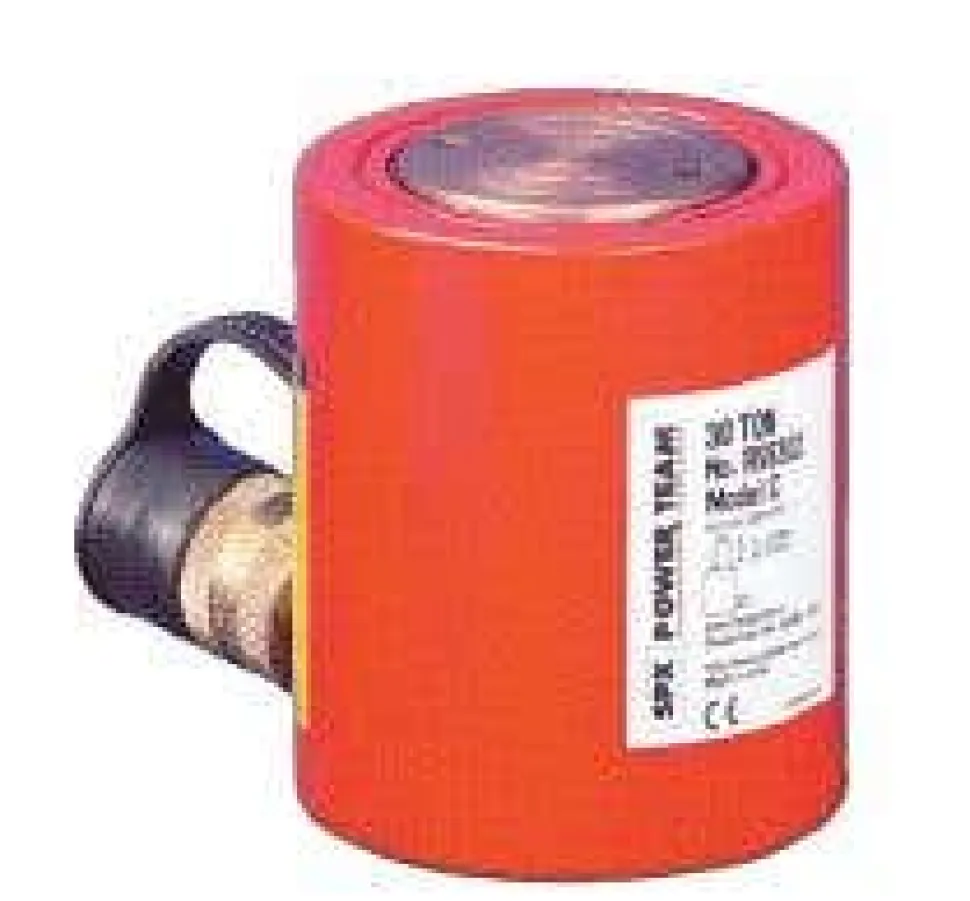

Power Team Shorty 50 Ton Spring Return Cylinder RSS502

$140.89

Additional Details

Power Team
Power Tech plated piston rods and gland nuts resist scoring and corrosion.
Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
Coupler on 10 thru 50 ton models is angled upward 5 for added clearance.
Grooved piston top keeps load from sliding.
Cylinders can be dead-ended at full capacity.
Removable carrying handles on 100 ton and 250 ton models.
Order No.: RSS502
Cyl Cap. (tons) : 50
Stroke (in.) : 2 3/8
Oil Cap. (cu. in.) Push: 22.8
Oil Cap. (cu. in.) Return:
Bore Dia. (in.) : 3 1/2
Cylinder Effective Area (sq. in.) Push: 9.62
Internal Press at Cap. (psi) Push: 10;393
Tons at 10000 (psi) Push: 48.1
Weight (lbs.) : 23.2
Retracted Height (in.) : 5
Extended Height (in.) : 7 3/8
Outside Dia. (in.) : 4 7/8
Base to Port (in.) : 42067
Piston Rod Dia. (in.) : 3 1/8

Specifications

More Information
OPT SKU	PTRSS502
MPN	RSS502
UPC/GTIN	662536003599
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	2-1/2″
Tonnage	50-Ton
Shipping Weight	27.00
