Power Team

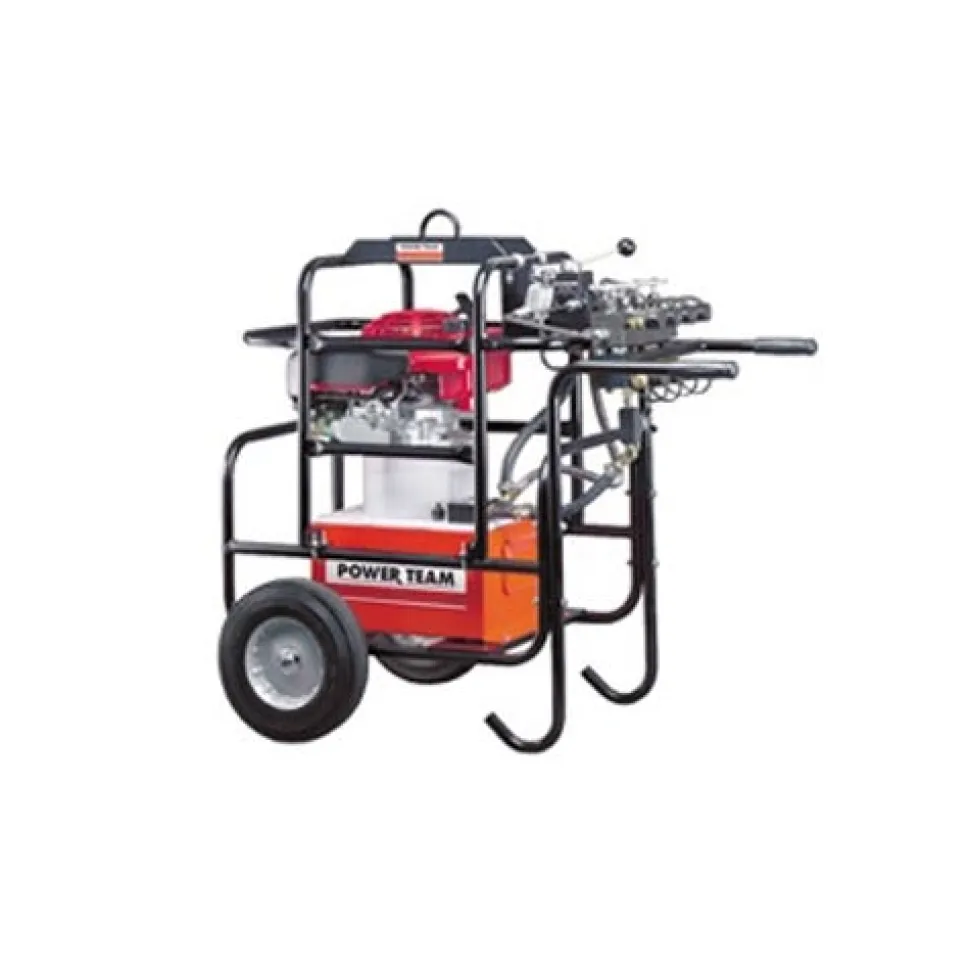

Double-Acting Max Output Gasoline Powered Pump PG1200M-4D
FEATURES:
- Financing is available. Click here for details.
- Two-speed high performance pumps ideal for construction; structure moving and rigging applications.
- A logical choice at work sites where electricity or compressed air are unavailable.
- Powered by a Honda 4-cycle; 5.5 hp engine with automatic decompression and electronic ignition. Deliver over 1/2 gallon (130 cu. in.) of oil per minute at 10;000 psi.
- For single or double-acting cylinders with precise individual control of up to four cylinders possible.
- Has 9520 3-way/3-position (tandem center) valve; 9596 load lowering valve and 9655 4-port manifold with individual needle valves at each port. 9796 coupler and 9797 dust cap at each port. 9506 4-way/3 position (tandem center) valve; and second 4-port manifold without needle valves mounted beneath 9644 manifold for operating double-acting cylinders.
- Comes with Roll Cage and Cart.
| For Use with Cylinder Type | Double-Acting |
|---|---|
| Description | PG1200M-4; except for double-acting systems. |
| Valve Type | 4-Way Manifold |
| Valve Number | 95069642 |
| Valve Function | Advance Hold Return |
| Usable(cu. in.) | 1;300 |
| Reservoir Horsepower | 5.5 |
| Cycle | 4 |
“
| OPT SKU | PTPG1200M-4D |
|---|---|
| MPN | PG1200M-4D |
| UPC/GTIN | 662536132121 |
| Product Type | Gas Hydraulic Pump |
| Google Category | Hardware > Hardware Pumps |
| Power Method | Gas |
| Shipping Weight | 410.00 |
