Power Team Aluminum 20 Ton Hydraulic 6″ Single Acting Cylinder Spring Return RA206
Original price was: $1,868.00.$132.89Current price is: $132.89.
- Power Team
- Half the weight of steel cylinders.
- Aluminum body resists sparking in explosive environments.
- Hard coated aluminum piston rod and cylinder bore resist wear and corrosion.
- Grooved piston top helps keep the load from sliding on top of piston.
- Designed for jacking and other non-production operations.
- Order No. : RA206
- Cyl. Cap. (tons) : 20
- Stroke (in.) : 6 1/8
- Oil Cap. (cu. in.) : 27.13
- Bore Dia. (in.) : 2 3/8
- Cylinder Effective Area (sq. in.): 4.43
- Internal Pressure at Cap. (psi): 9;030
- Tons at 10000 (psi) : 22.15
- Weight (lbs.) : 11.3
- Retracted Ht. (in.) : 10 3/8
- Extended Height (in.) : 16 1/2
- Outside Dia. (in.) : 3 3/4
- Base to Port (in.): 1 1/4
- Piston Rod Dia. (in.): 2
- Piston Rod Protrusion (in.): 5/16

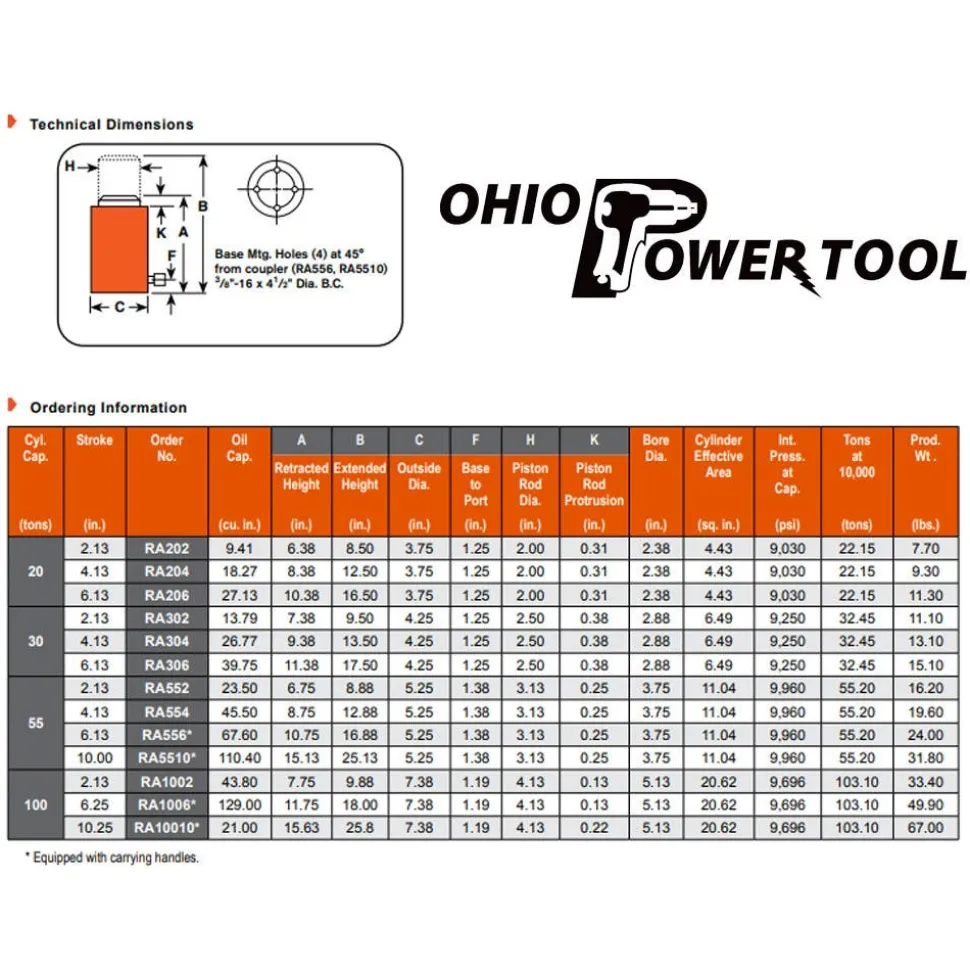

- ** Not Exact Picture
| OPT SKU | PTRA206 |
|---|---|
| MPN | RA206 |
| UPC/GTIN | 662536216173 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 6-1/4″ |
| Tonnage | 20-Ton |
| Shipping Weight | 14.00 |
