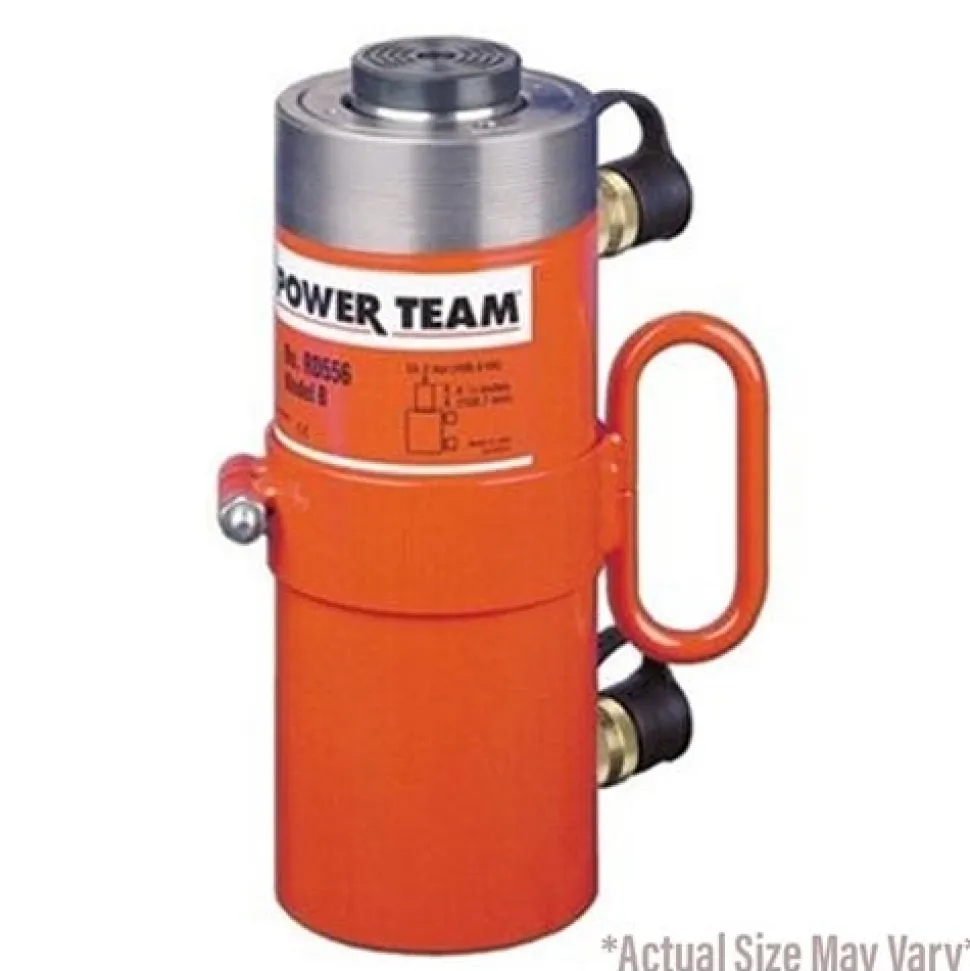

Power Team 80 Ton Hydraulic 13″ Double Acting Cylinder RD8013

• Power Team
• HIGH TONNAGE PREMIUM DESIGN FOR HIGH CYCLE LIFE.
• Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance.
• Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion.
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage.
• Grooved ring pattern in load cap helps guard against load slippage.
• Each cylinder has two 9796 3/8 NPTF female half couplers.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Feature mounting holes and collar threads.

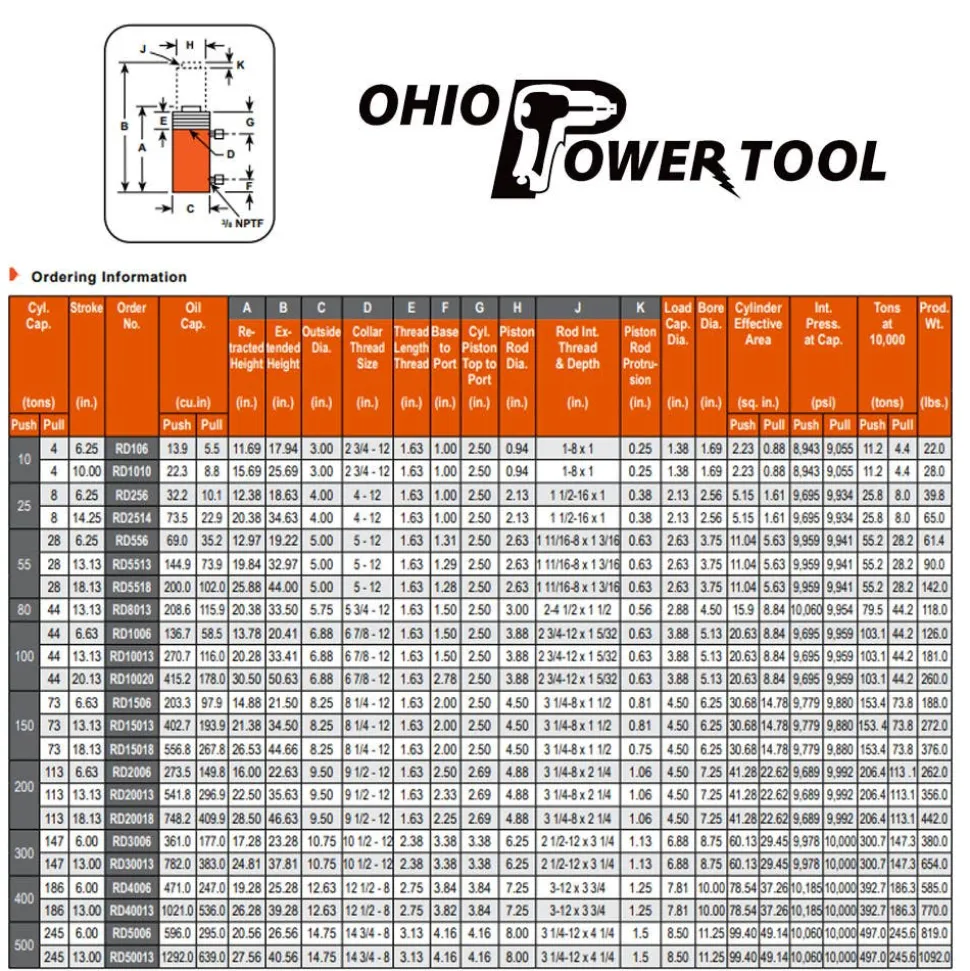

• Order No. : RD8013
• Cyl. Cap. (tons) Push: 80
• Cyl. Cap. (tons) Pull: 44
• Stroke (in.) : 13 1/8
• Oil Capacity (cu.in) Push: 208.6
• Oil Capacity (cu.in) Pull: 115.9
• Load Cap Dia. (in.) : 2 7/8
• Bore Dia. (in.) : 4 1/2
• Cyl. Eff. Area (sq.in.) Push: 15.9
• Cyl. Eff. Area (sq.in.) Pull: 8.84
• Int. Press. at Cap. (psi) Push: 10;060
• Int. Press. at Cap. (psi) Pull: 9;954
• Tons at 10;000 psi Push: 79.5
• Tons at 10;000 psi Pull: 44.2
• Weight (lbs.) : 118

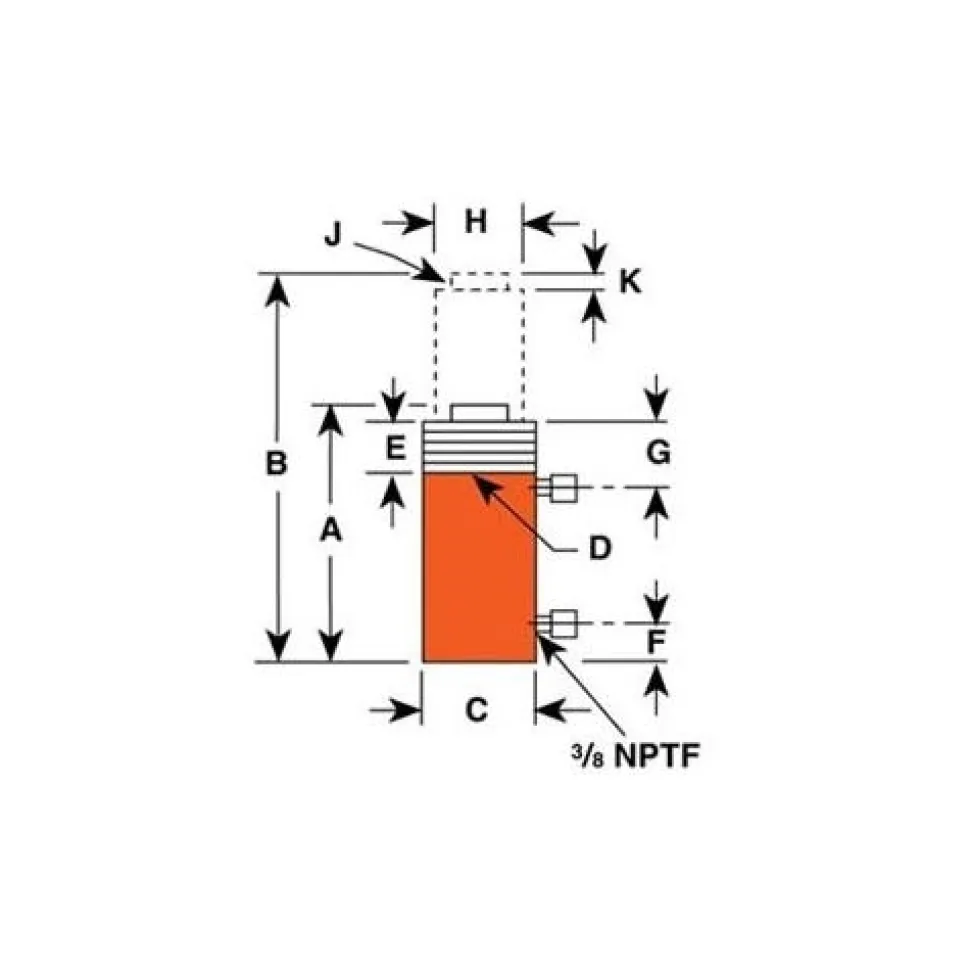

• Ret. Height (in.) : 20 3/8
• Ext. Height (in.) : 33 1/2
• Outside Dia. (in.) : 5 3/4
• Collar Thread Size (in.) : 5 3/4-12
• Thread Length Thread (in.) : 1 5/8
• Base to Port trusion (in.) : 1 1/2
• Cylinder Piston Top to Port (in.): 2 1/2
• Piston Rod Dia. Depth (in.) : 3
• Rod Int. and (in.) : 2-4 1/2×1 1/2
• Piston Rod Protrusion (in.) : 9/16

“
