Power Team 75 Ton Hydraulic 13″ Single Acting Cylinder Spring Return C7513C

• Power Team

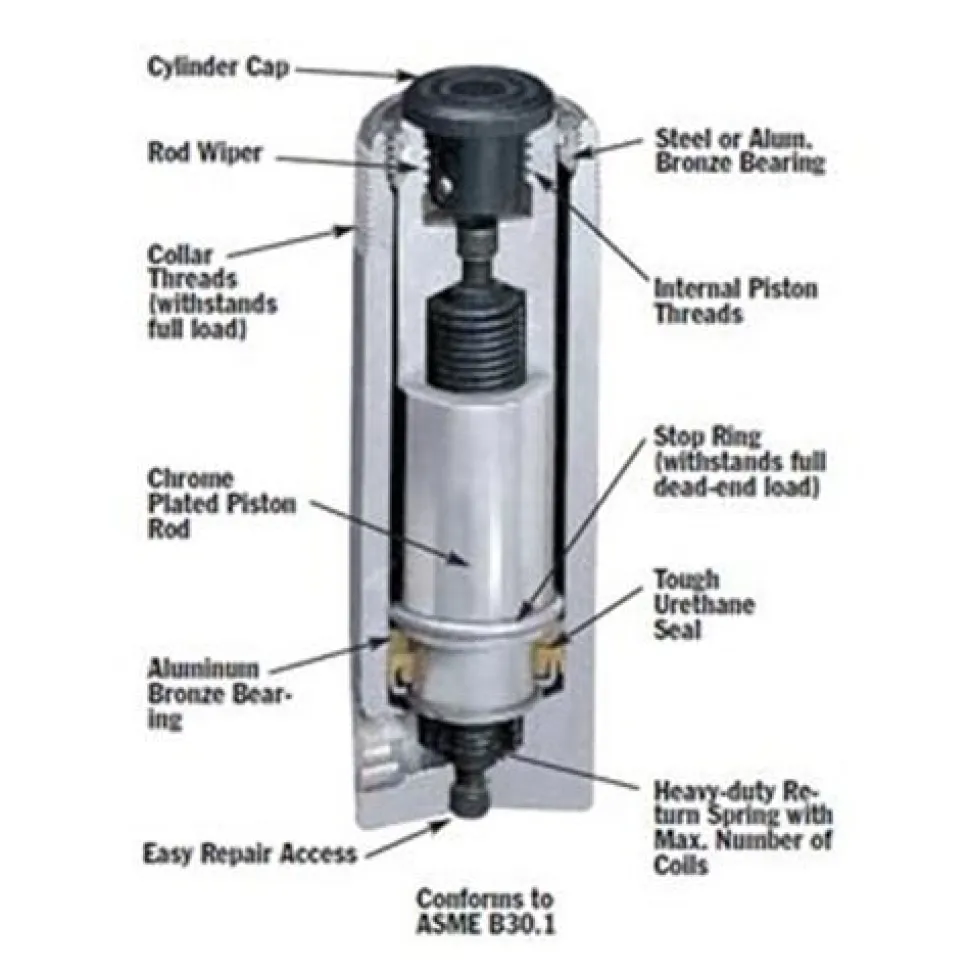

• Aluminum bronze bearing reduces wear caused by off-center loads.
• Maximum sized springs speed piston return and increase spring life.
• Solid steel cylinder body for durability.
• Chrome plated piston rod resists wear and corrosion.
• Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.
• Base mounting holes.
• 3/8 NPTF female half coupler is standard.
• Order No.: C7513C
• Cylinder Capacity (Tons): 75
• Stroke (in.): 13 1/8
• Oil Cap. (cu. In.): 208.7
• Bore Diameter (in.): 4 1/2
• Cylinder Effective Area (sq. in): 15.9
• Internal Pressure at Cap. (psi): 9434
• Tons at 10;000 psi (psi): 79.5
• Weight (lbs.): 109.5

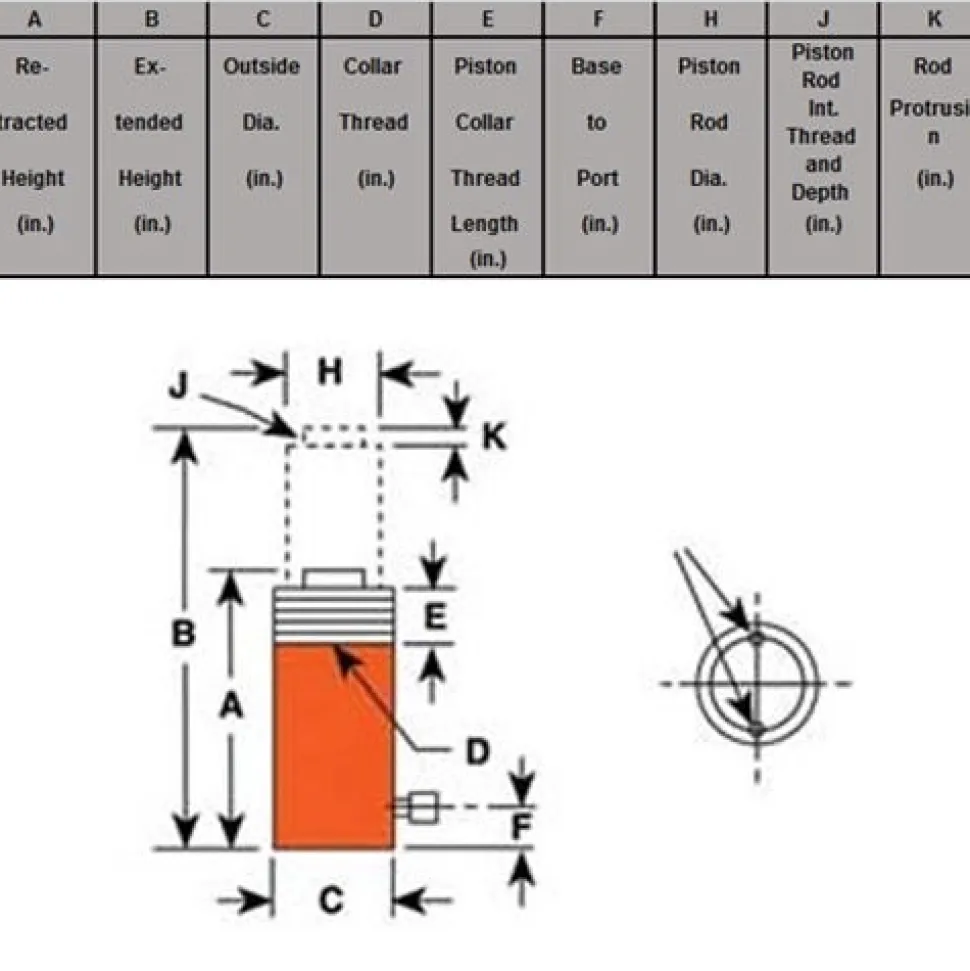

• Retracted Height (in.): 19 3/8
• Extended Height (in.): 32 1/2
• Outiside Diameter (in.): 5 3/4
• Collar Thread (in.): 5 3/4-12
• Piston Collar Thread Length (in.): 1 3/4
• Base to Port (in.): 1 1/4
• Piston Rod Diameter (in.): 3 3/4
• Piston Internal Thread and Depth (in.): None
• Rod Protrusion (in.): 1/8

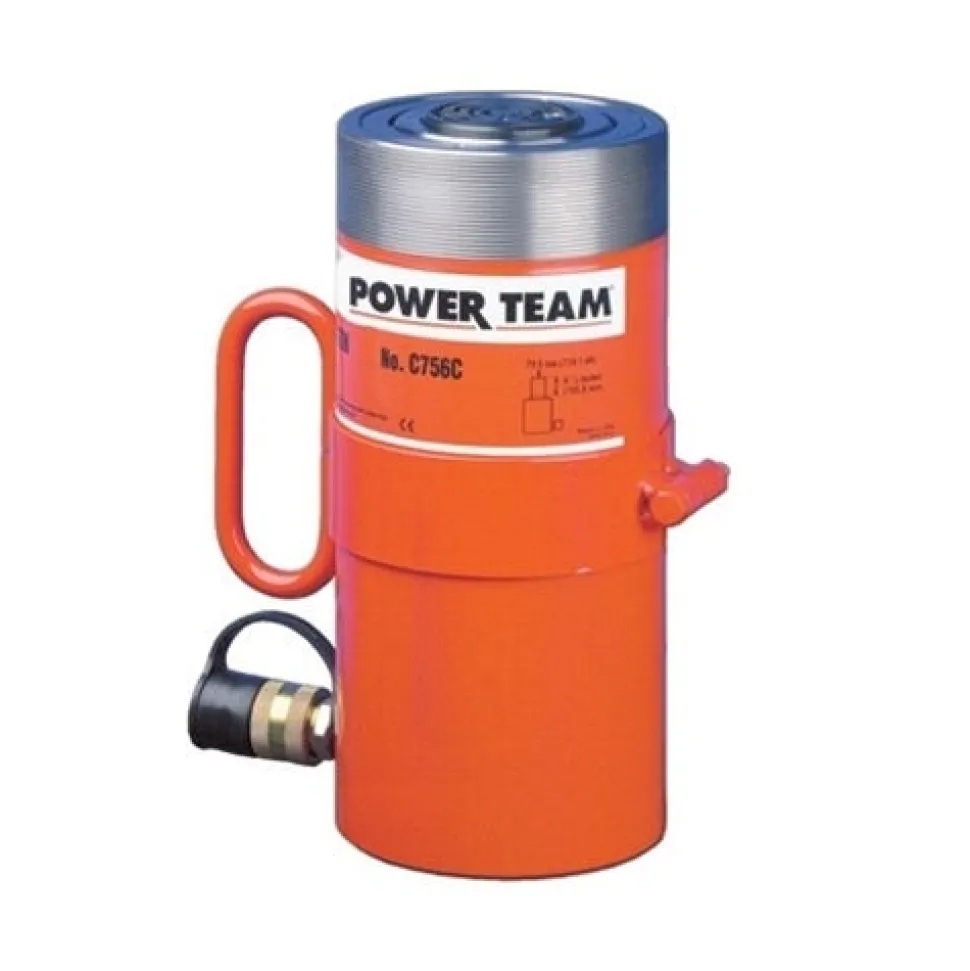

• ** Not Exact Picture

“
