Power Team 60 Ton Hydraulic 6″ Single Acting Cylinder Center Hole RH606

• Power Team
• IDEAL FOR PULLING AND PRESSING.
• Interchangeable piston head inserts provide versatility of application.
• 12; 20; 30; 60; 60 ton single-acting models feature threaded collar
• Withstands full indead-endin loads.
• Corrosion resistant standpipe has inPower Techin treatement
• All cylinders except RH120 are furnished with a 9796 3/8 NPT female half coupler
• Aluminum cylinder body and piston are featured on the RHA306 Cylinder
• Model RH203 and RHA306 do not feature the collar thread.

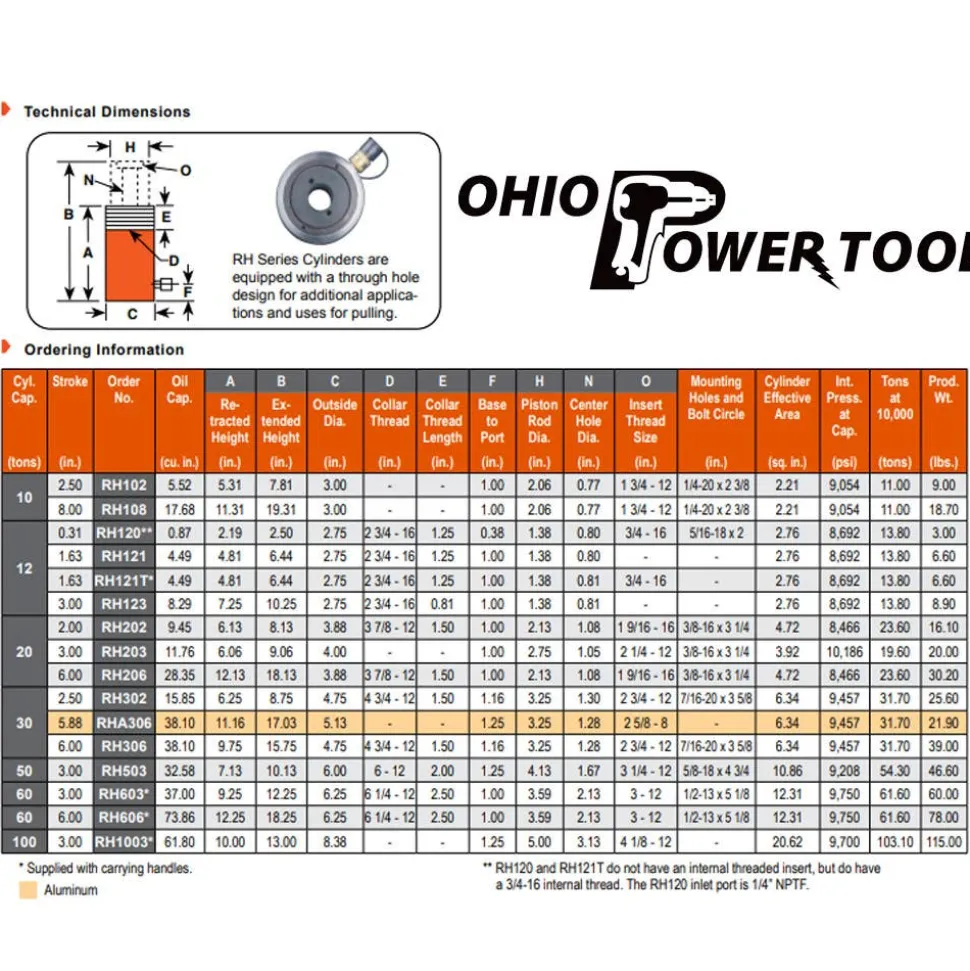

• Order No. : RH606*
• Cyl. Cap. (tons) : 60
• Stroke (in.) : 6
• Oil Cap. (cu. in.) : 73.86
• Mounting Holes and Bolt Circle (in.): 1/2-13×5 1/8
• Cylinder Effective Area (sq. in.): 12.31
• Internal Pressure at Cap. (psi): 9;750
• Tons at 10;000 psi (in.) : 61.6
• Weight (lbs.) : 78
• Re- tracted Height (in.): 12 1/4
• Ex- tended Height (in.): 18 1/4
• Outside Dia. (in.) : 6 1/4
• Collar Thread (in.) : 6 1/4-12
• Collar Thread Length (in.): 2 1/2
• Base to Port (in.): 1
• Piston Rod Dia. (in.): 3 19/32
• Center Hole Dia. (in.): 2 1/8
• Insert Thread Size (in.): 3-12

“
