Power Team 60 Ton Hydraulic 4″ Aluminum Double Acting Cylinder Center RHA604D

Power Team SPX

Power Team 60 ton hydraulic 4 aluminum double acting cylinder center hole RHA604D

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers.

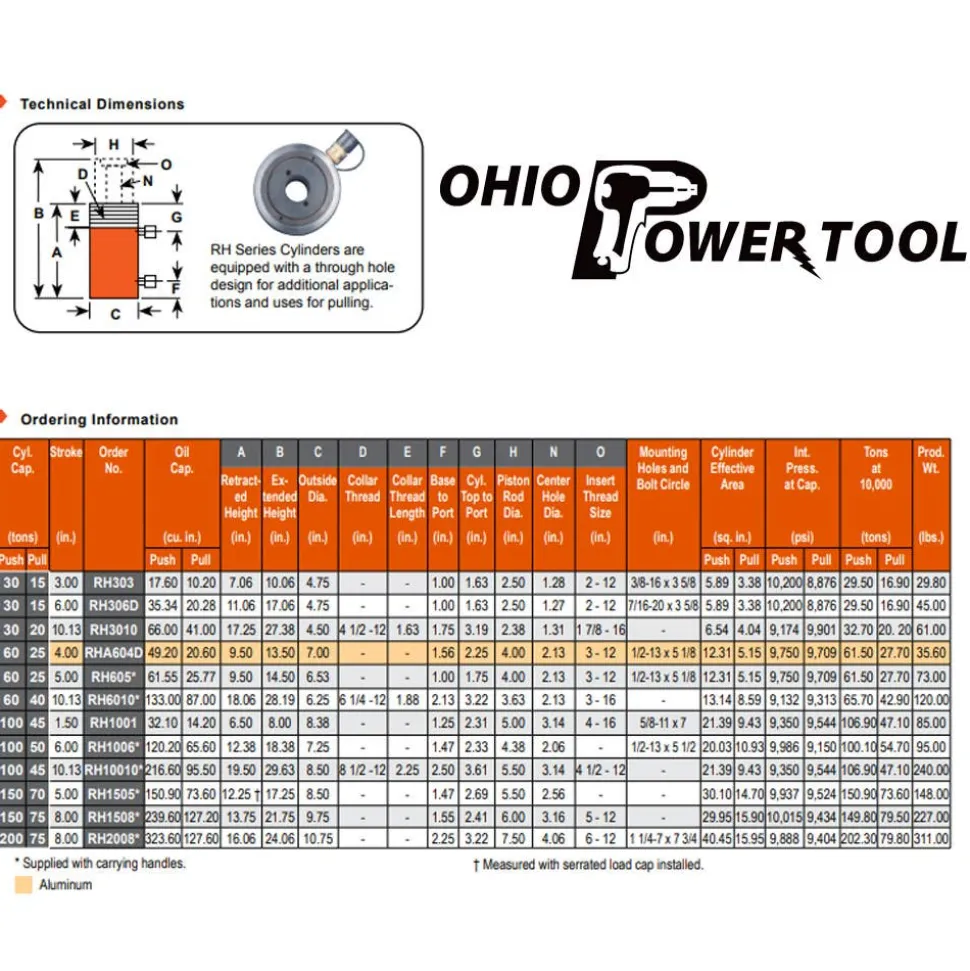

SPECIFICATIONS:

Stroke length:	4.000″
Piston rod diameter:	4.000″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	60 Ton
Pull capacity:	25 Ton
Oil capacity:	49.200″³
Pull/return oil capacity:	20.600³
Retracted height:	9.500″
Extended height:	13.500″
Effective area:	12.310″²
Pull cylindrical effective area:	5.150″²
Tons at 10;000 PSI:	61.50 Ton
Pull tons at 10;000 PSI:	27.70 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;709 PSI
Bore size:	3.960″
Base to port:	1.188″
Outside diameter:	7.000″
Center hole diameter:	2.125″
Insert thread size:	3-12
Cylinder top to diameter:	2.250″
Weight:	35.60lbs

“
