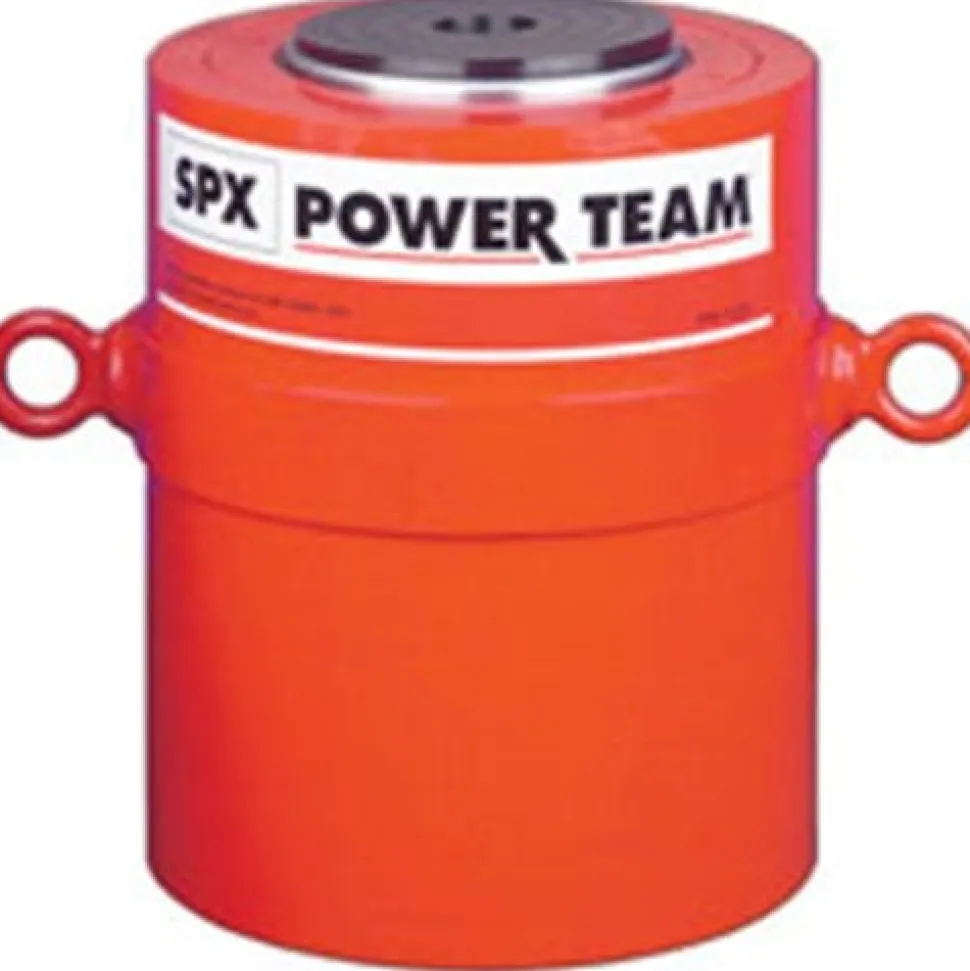

Power Team 565 Ton 6″ Stroke Hydraulic Return Cylinder R5656D

• Power Team
• HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
• Cylinders come standard with swivel caps to reduce the effects of off-center loading.
• Cylinders may be dead-ended without damage.
• Hard chrome plated; heat treated piston rod reduces wear on piston and gland nut.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.

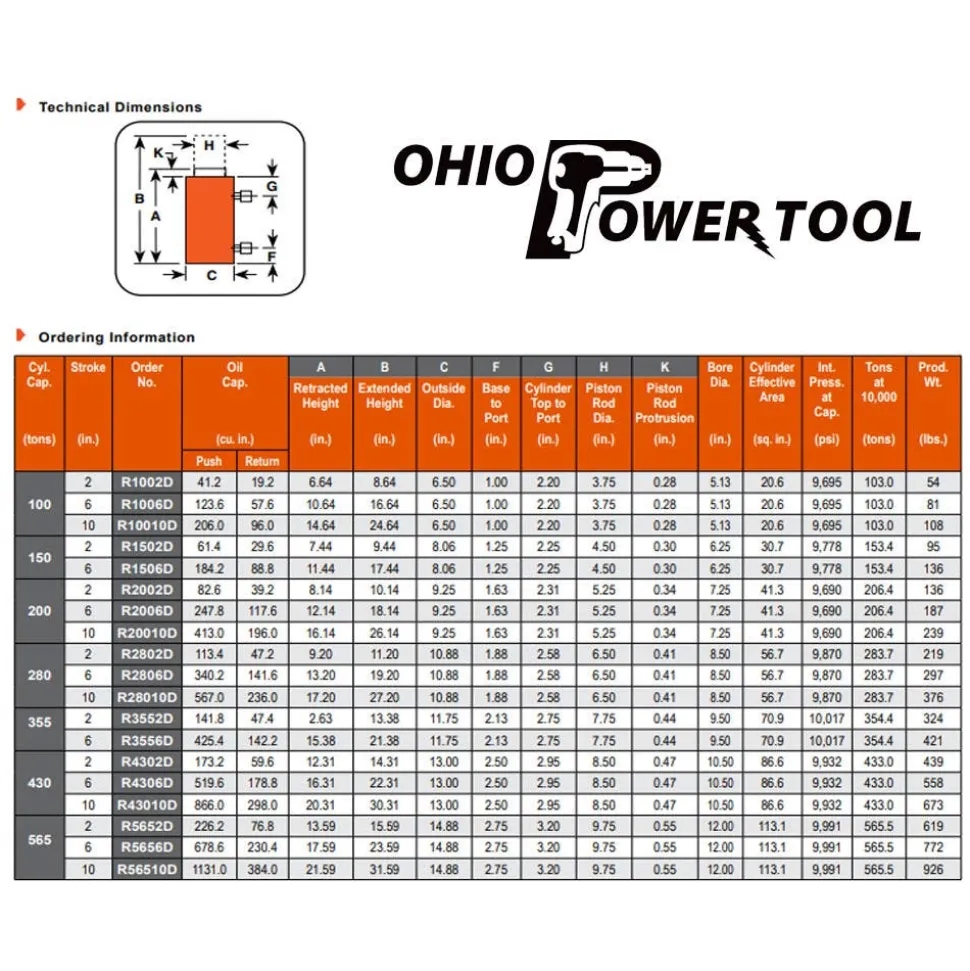

• Order No. : R5656D
• Cyl. Cap. (tons) : 565
• Stroke (in.) : 6
• Oil Capacity/Height (cu. in.) Push: 678.6
• Oil Capacity/Height (cu. in.) Return: 230.4
• Bore Area (in.) : 12
• Cylinder Effective Press. (sq. in.) Push: 113.1
• Internal Tons 10000 at Cap. (psi) Push: 9;991
• Tons at Wt. (psi) Push: 565.5
• Weight (lbs.) : 772
• Retracted Height (in.) : 17 19/32
• Extended Height (in.) : 23 19/32
• Outside Port (in.) : 14 7/8
• Base to Port (in.) : 2 3/4
• Cylinder Top to Dia. (in.) : 3 13/64
• Piston Rod Dia. (in.) : 9 3/4
• Piston Rod Protrusion (in.) : 35/64

“
