Power Team 55 Ton Hydraulic 6″ Single-Acting Locking Collar Cylinder R556L
Original price was: $2,492.00.$140.89Current price is: $140.89.
- Power Team
- POSITIVE MECHANICAL LOCK TO SUPPORT LOAD.
- Supports lifted load for extended periods of time with hydraulic pressure released.
- Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.

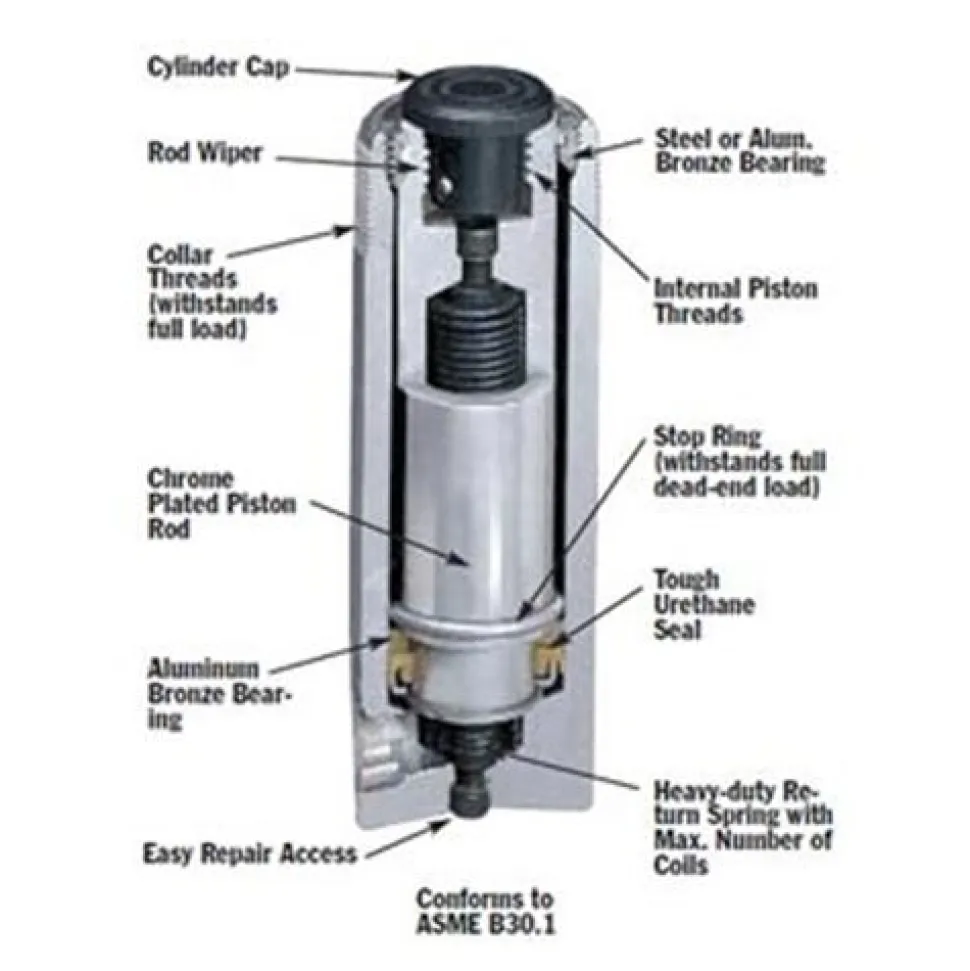

- All cylinders feature coated pistons to resist corrosion and abrasion.
- Order No. : R556L

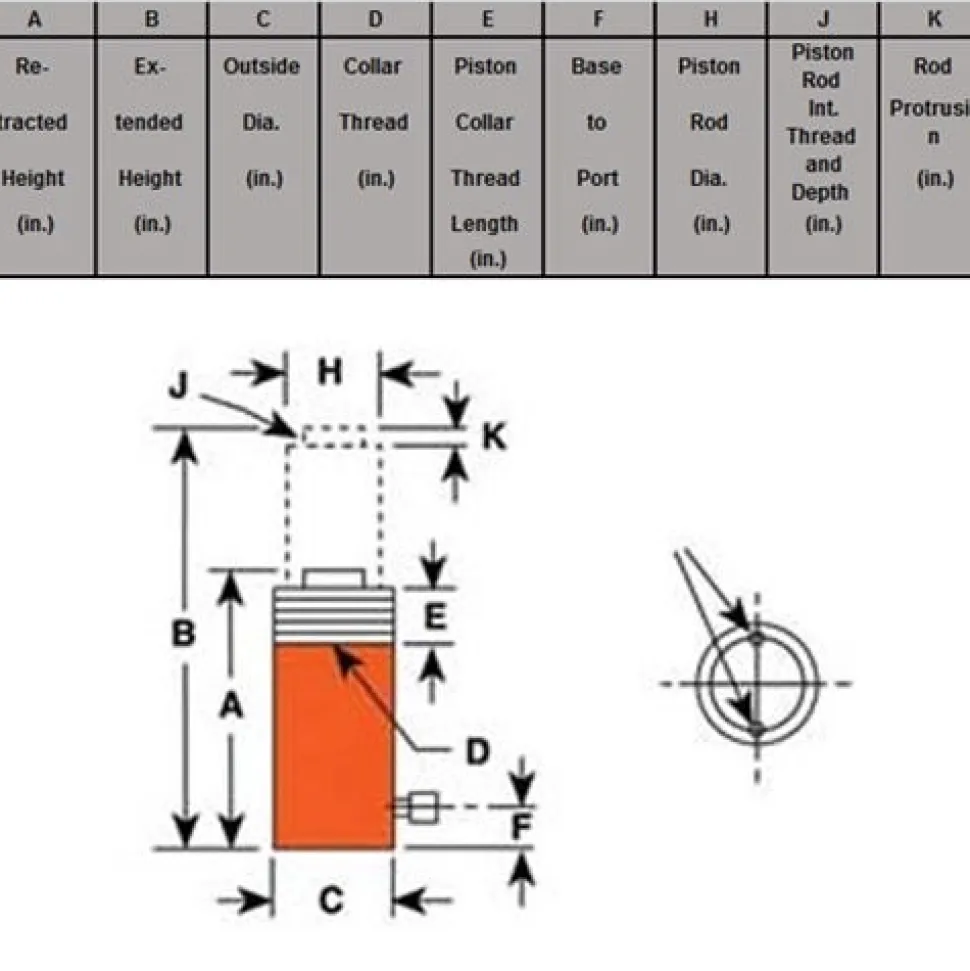

- Cyl. Cap. (tons.): 55
- Stroke (in.) : 6
- Oil Cap. (cu. in.): 66.3
- Bore Dia. (in.): 3 3/4
- Cylinder Effective Area (sq. in.) 11.04
- Internal Pressure at Cap. (psi) 9;964
- Tons at 10000 (psi): 55.2
- Weight (lbs.) : 58
- Retracted Ht. (in.): 10 3/8
- Extended Ht. (in.): 16 3/8
- Outside Dia. (in.): 4 15/16
- Base to Port (in.): 1
- Piston Rod Dia. (in.) 3 3/4
- Piston Rod Protrusion (in.): 1/8
- Nut Thickness (in.): 1 7/16
| OPT SKU | PTR556L |
|---|---|
| MPN | R556L |
| UPC/GTIN | 662536252720 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 6″ |
| Tonnage | 55-Ton |
| Shipping Weight | 65.00 |
