Power Team 55 Ton Hydraulic 18″ Double Acting Cylinder RD5518

Name: Power Team 55 Ton Hydraulic 18" Double Acting Cylinder RD5518
Brand: Power Team SPX
SKU: SKU0pfrHvWCG9
Availability: InStock

$130.89

Additional Details

Perfect for bridge lifting, building reconstruction, shipyard, utility and mining equipment maintenance.

Features

Each cylinder has two 9796 3/8″ NPTF female half couplers
Built-in safety relief valve prevents over-pressurization of the retract circuit
Feature mounting holes and collar threads

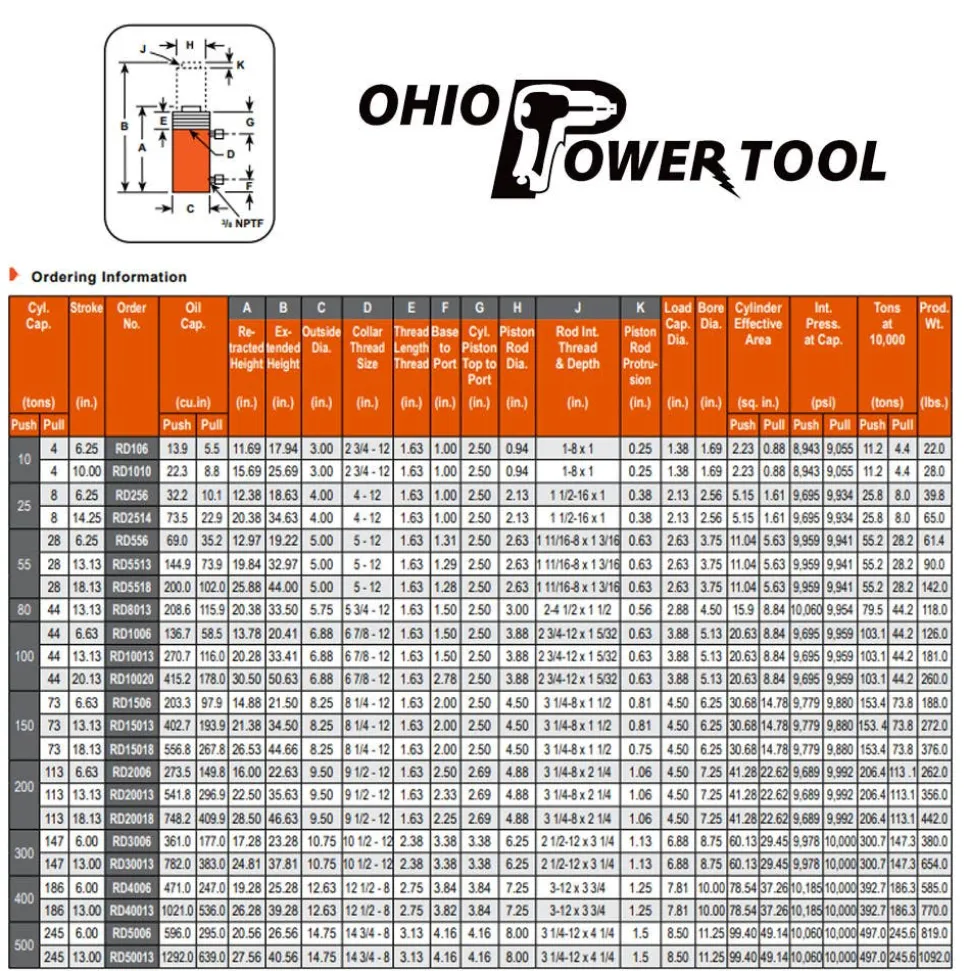

Manufacturer Specifications

Tons at 10,000 – Push	55.2 tons
Tons at 10,000 – Pull	28.2 tons
Internal Pressure at Capacity – Push	9,959 PSI
Internal Pressure at Capacity – Pull	9,941 PSI
Oil Capacity – Push	200 cu. in.
Oil Capacity – Pull	102 cu. in.
Effective Area – Push	11.04 sq. in.
Effective Area – Pull	5.63 sq. in.

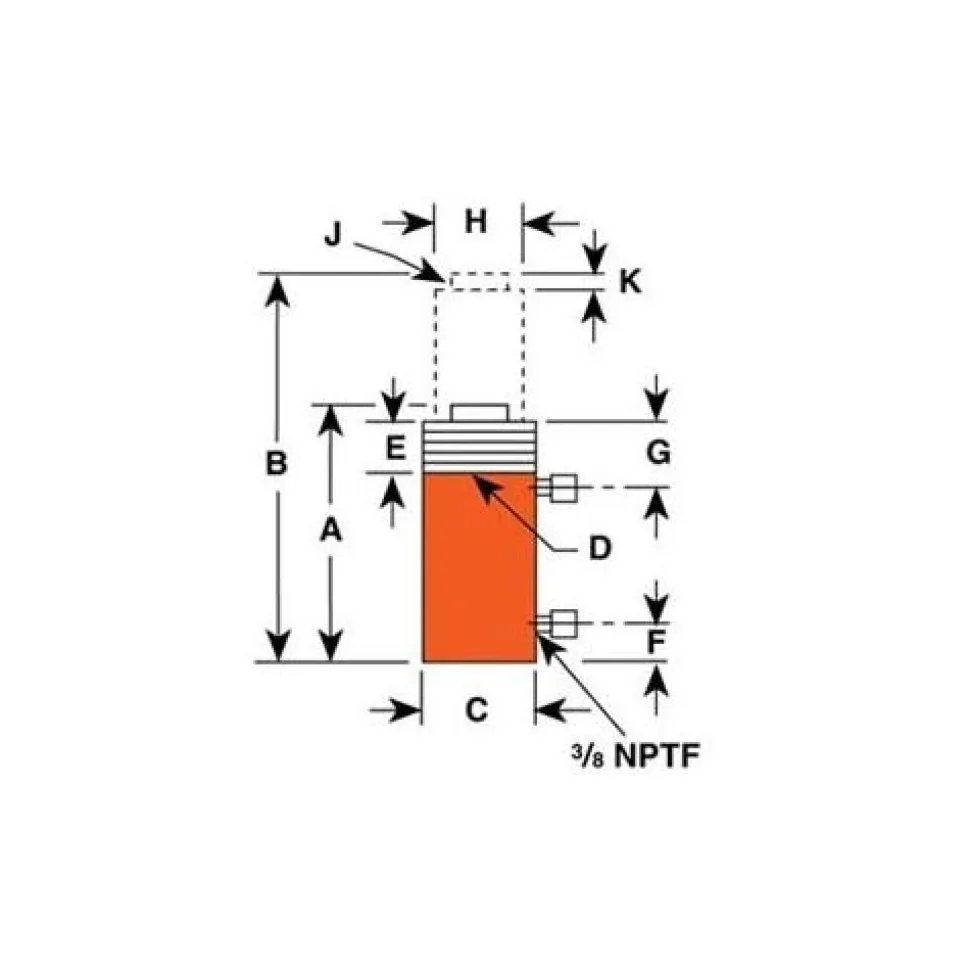

Bore Diameter	3.75 in.
Outside Diameter	5 in.
Retracted Height	25.88 in.
Extended Height	44 in.

Specifications

More Information
OPT SKU	PTRD5518
MPN	RD5518
UPC/GTIN	662536385626
Product Type	Cylinder Rams Double Acting
Google Category	Business & Industrial > Material Handling
Stroke	18″
Tonnage	55-Ton
Shipping Weight	156.00
