Power Team 5 Ton Hydraulic 9/16″ Low Profile Spring Return Cylinder RLS50

• Power Team
• IDEAL FOR CONFINED AREAS FROM 1 5/8 TO 4″ CLEARANCE.
• Cylinder body; piston and gland nut Power Tech treated for corrosion and abrasion resistance.
• Standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) minimize effects of offcenter loading.
• Unique heavy duty spring provides fast piston return.
• A 9796 3/8″ NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8″ coupler which is not angled). Oil ports are 3/8″ NPTF.
• Couplers on all cylinders; except RLS50; are angled upward for extra clearance.

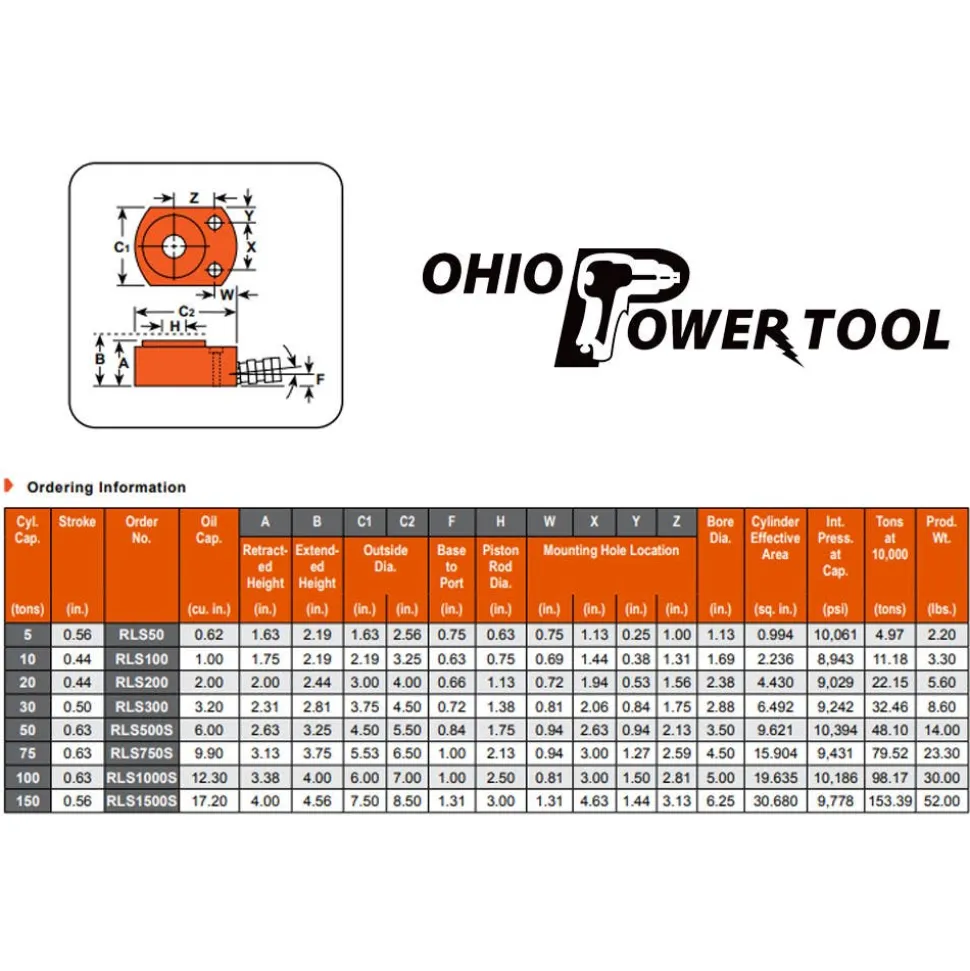

• Order No. : RLS50
• Cyl. Cap. (tons): 5
• Stroke (in.) : 9/16
• Oil Cap. (cu. in.): 0.62
• Bore Dia. (in.): 1 1/8
• Cyl. Eff. Area (sq. in.): 0.994
• Int. Press at Cap. (psi): 10;061
• Tons at 10000 (psi): 4.97
• Weight (lbs.) : 2.2
• Order No. : RLS50
• Retracted Height : 1 5/8
• Extended Height : 2 3/16
• Outside Dia. : 1 5/8 x 2 9/16
• Base to Port : 3/4
• Piston Rod Prod. Dia.: 5/8

“
