Power Team 5 Ton Hydraulic 3″ Single Acting Spring Return Cylinder C53C

• Power Team
• RUGGED; HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING

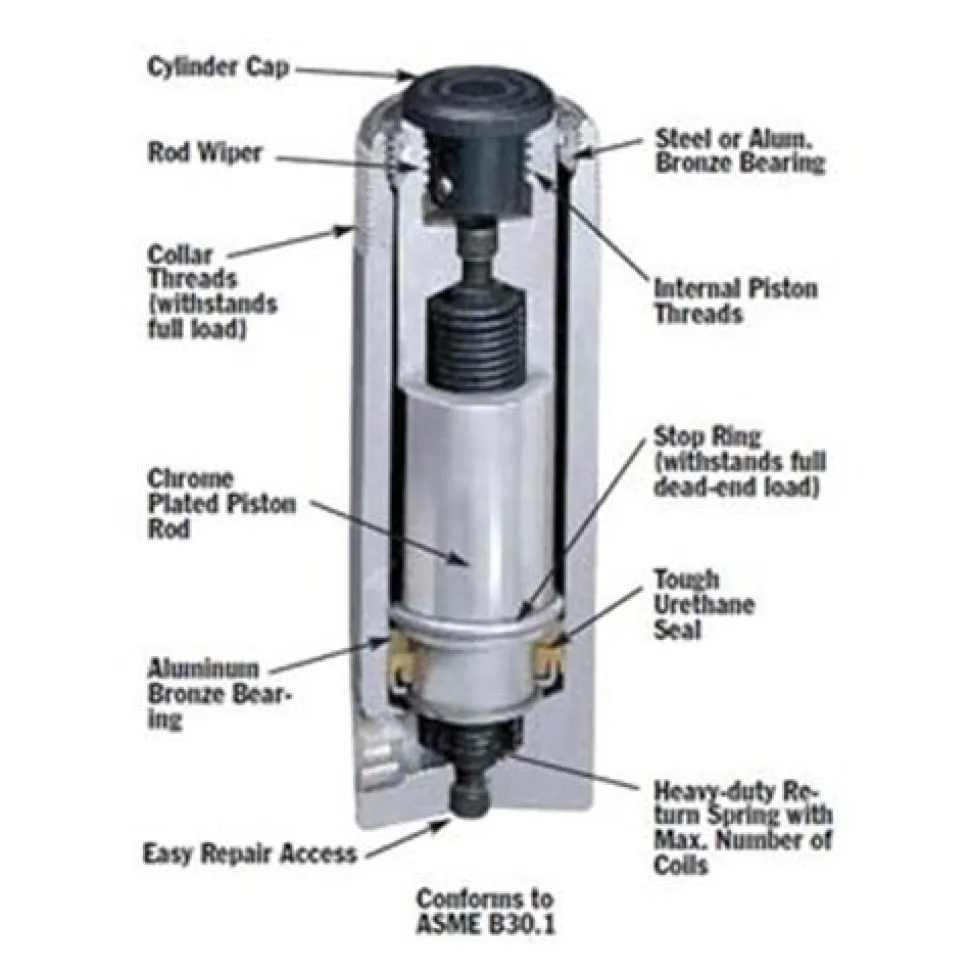

• Aluminum bronze bearing reduces wear caused by off-center loads.
• Maximum sized springs speed piston return and increase spring life.
• Solid steel cylinder body for durability.
• Chrome plated piston rod resists wear and corrosion.
• Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.
• Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
• A 3/8 NPTF female half coupler is standard.
• Order No.: C53C
• Cylinder Capacity (Tons): 5
• Stroke (in.): 3 1/4
• Oil Cap. (cu. In.): 3.2
• Bore Diameter (in.): 1 1/8
• Cylinder Effective Area (sq. in): 0.994
• Internal Pressure at Cap. (psi): 10061
• Tons at 10;000 psi (psi): 4.97
• Weight (lbs.): 3.26

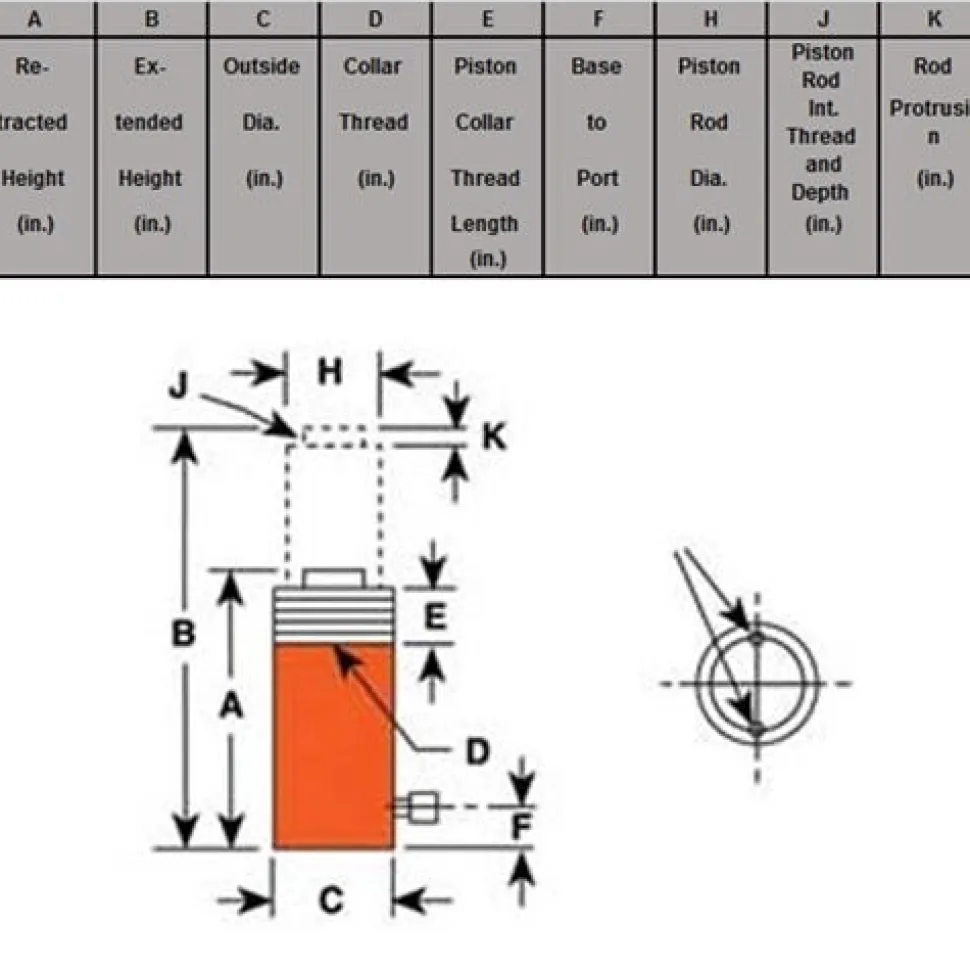

• Retracted Height (in.): 6 1/2
• Extended Height (in.): 9 3/4
• Outiside Diameter (in.): 1 1/2
• Collar Thread (in.): 1 1/2-16
• Piston Collar Thread Length (in.): 1 1/8
• Base to Port (in.): 3/4
• Piston Rod Diameter (in.): 1
• Piston Internal Thread and Depth (in.): 3/4-16 x 5/8
• Rod Protrusion (in.): 1/4

“
