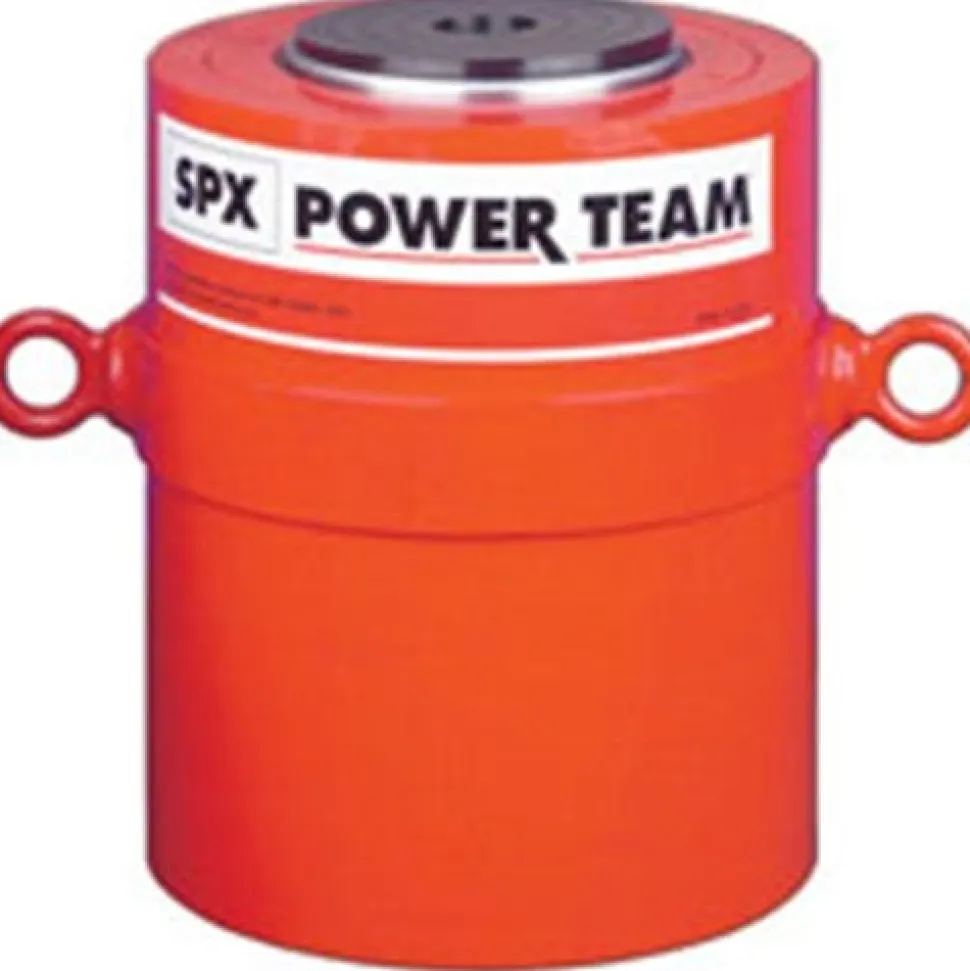

Power Team 430 Ton 2″ Stroke Hydraulic Return Cylinder R4302D

• Power Team
• Financing is available – Click here for details
• HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
• Cylinders come standard with swivel caps to reduce the effects of off-center loading.
• Cylinders may be dead-ended without damage.
• Hard chrome plated; heat treated piston rod reduces wear on piston and gland nut.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.

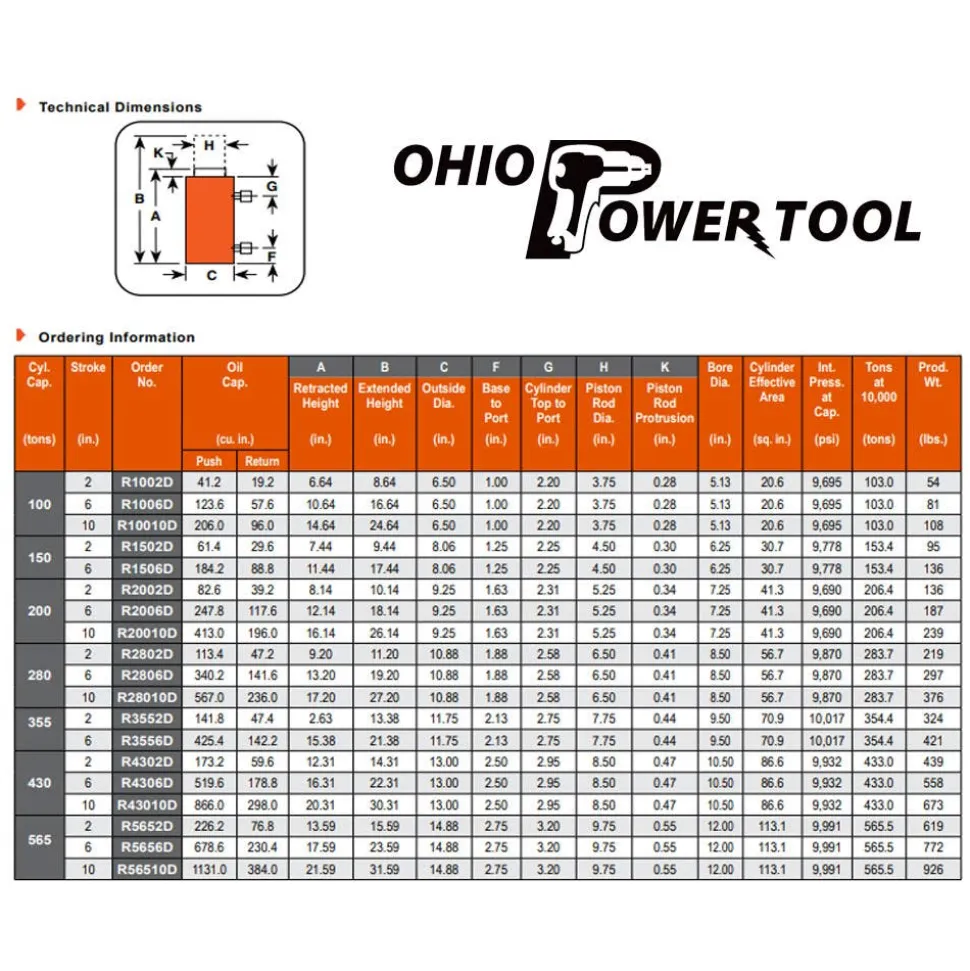

• Order No. : R4302D
• Cyl. Cap. (tons) : 430
• Stroke (in.) : 2
• Oil Capacity/Height (cu. in.) Push: 173.2
• Oil Capacity/Height (cu. in.) Return: 59.6
• Bore Area (in.) : 10 1/2
• Cylinder Effective Press. (sq. in.) Push: 86.6
• Internal Tons 10000 at Cap. (psi) Push: 9;932
• Tons at Wt. (psi) Push: 433
• Weight (lbs.) : 439
• Retracted Height (in.) : 12 5/16
• Extended Height (in.) : 14 5/16
• Outside Port (in.) : 13
• Base to Port (in.) : 2 1/2
• Cylinder Top to Dia. (in.) : 2 61/64
• Piston Rod Dia. (in.) : 8 1/2
• Piston Rod Protrusion (in.) : 15/32

“
