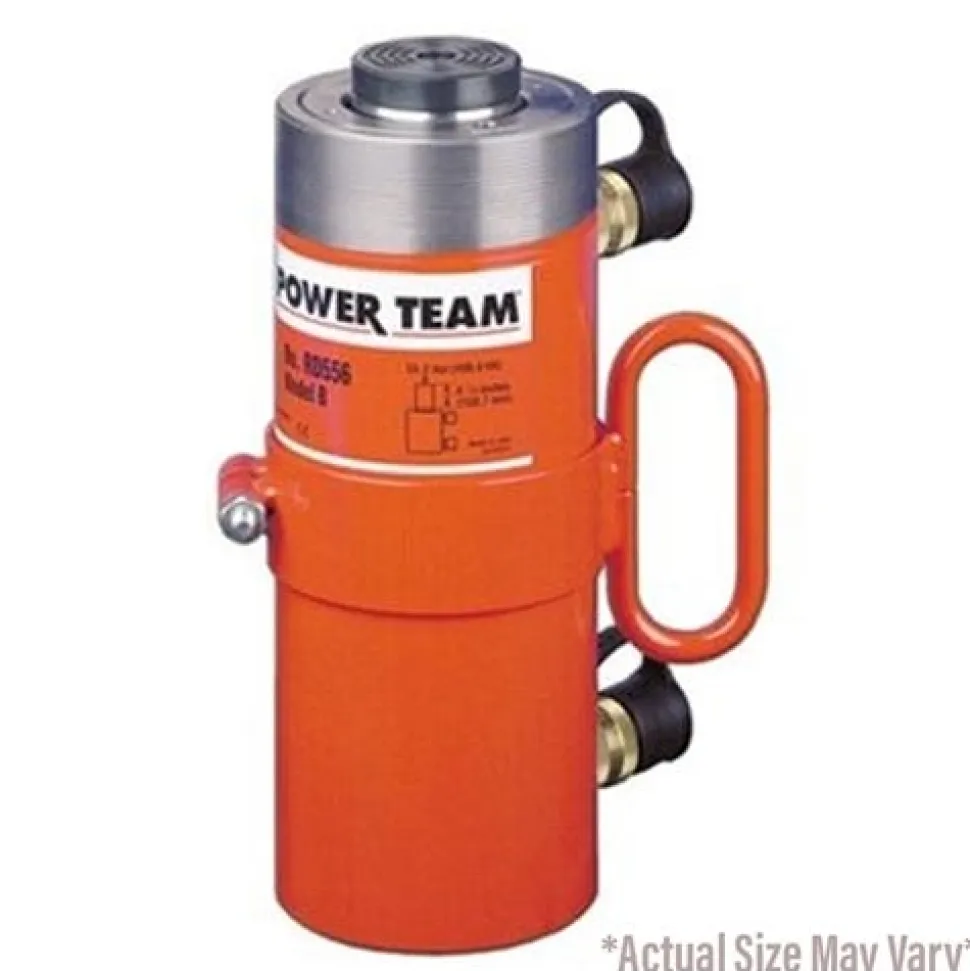

Power Team 400 Ton Hydraulic 13″ Double Acting Cylinder RD40013

• Power Team
• Financing is available – Click here for details
• HIGH TONNAGE PREMIUM DESIGN FOR HIGH CYCLE LIFE.
• Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance.
• Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion.
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage.
• Grooved ring pattern in load cap helps guard against load slippage.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Feature mounting holes and collar threads.

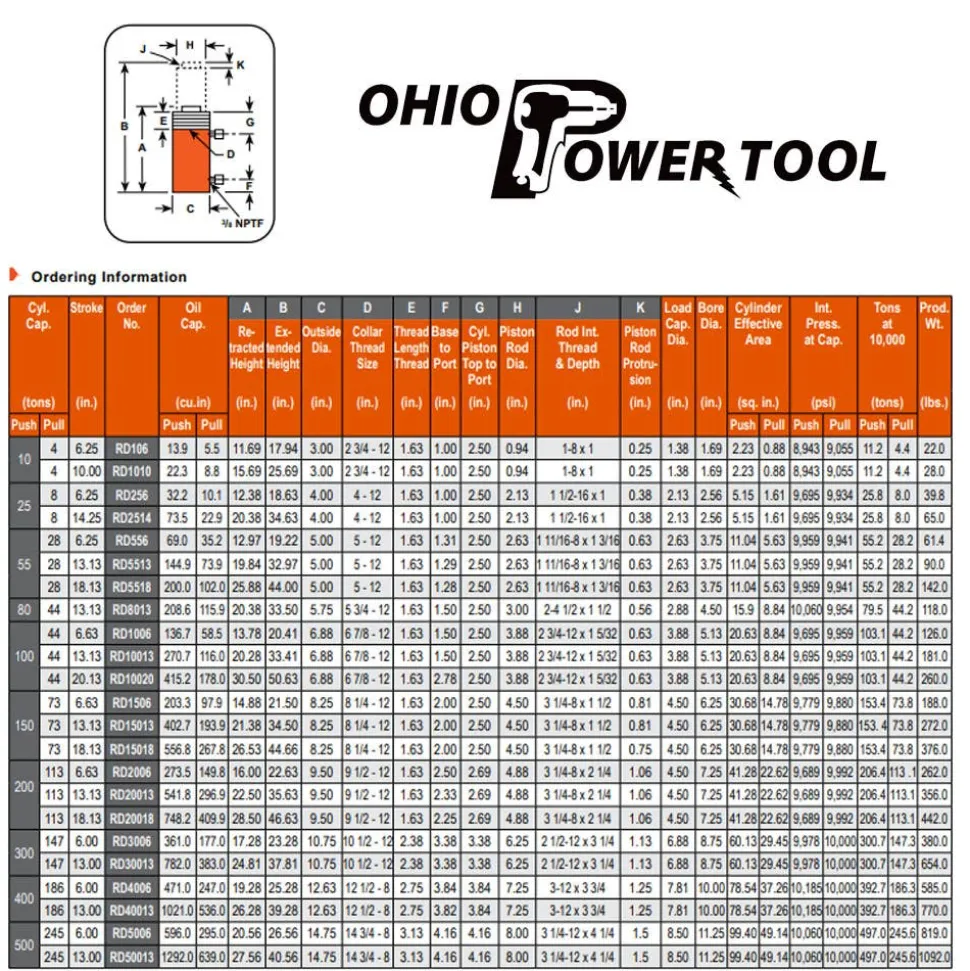

• Order No. : RD40013
• Cyl. Cap. (tons) Push: 400
• Cyl. Cap. (tons) Pull: 186
• Stroke (in.) : 13
• Oil Capacity (cu.in) Push: 1021
• Oil Capacity (cu.in) Pull: 536
• Load Cap Dia. (in.) : 7 13/16
• Bore Dia. (in.) : 10
• Cyl. Eff. Area (sq.in.) Push: 78.54
• Cyl. Eff. Area (sq.in.) Pull: 37.26
• Int. Press. at Cap. (psi) Push: 10;185
• Int. Press. at Cap. (psi) Pull: 10;000
• Tons at 10;000 psi Push: 392.7
• Tons at 10;000 psi Pull: 186.3
• Weight (lbs.) : 770

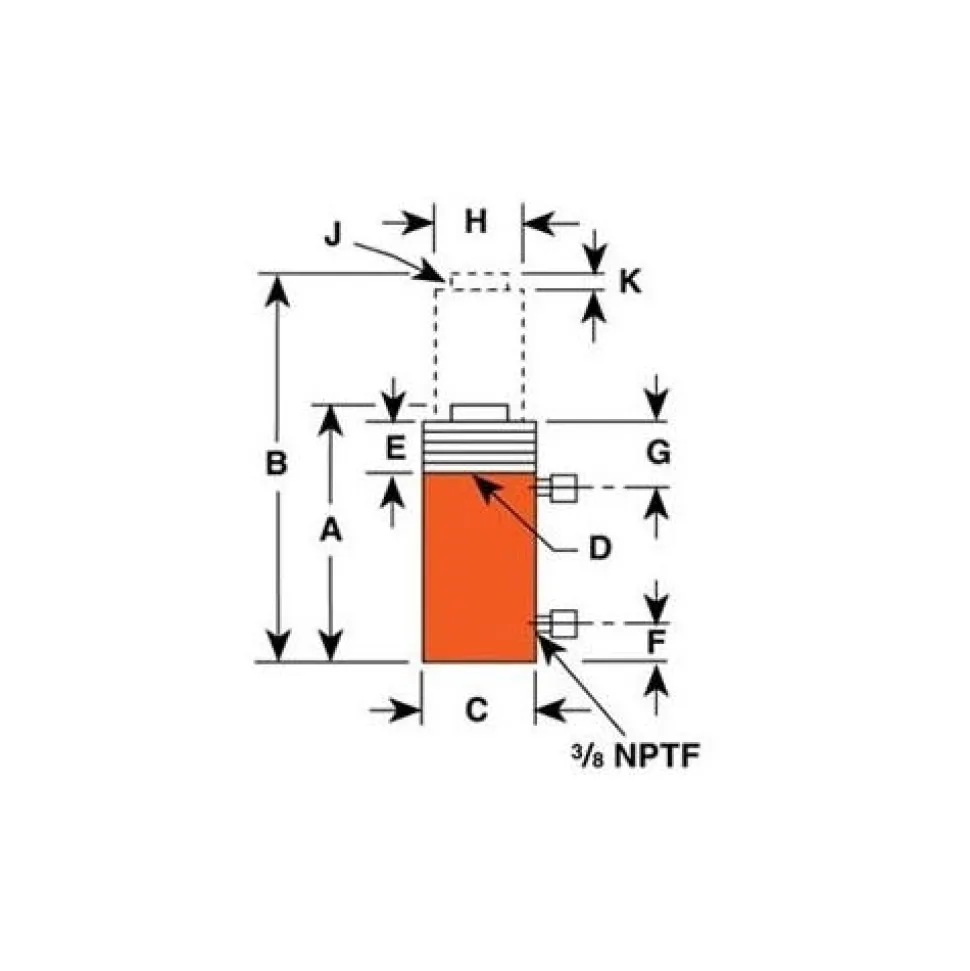

• Ret. Height (in.) : 26 9/32
• Ext. Height (in.) : 39 9/32
• Outside Dia. (in.) : 12 5/8
• Collar Thread Size (in.) : 12 1/2-8
• Thread Length Thread (in.) : 2 3/4
• Base to Port trusion (in.) : 3 9/11
• Cylinder Piston Top to Port (in.): 3 27/32
• Piston Rod Dia. Depth (in.) : 7 1/4
• Rod Int. and (in.) : 3-12×3 3/4
• Piston Rod Protrusion (in.) : 1 1/4

“
