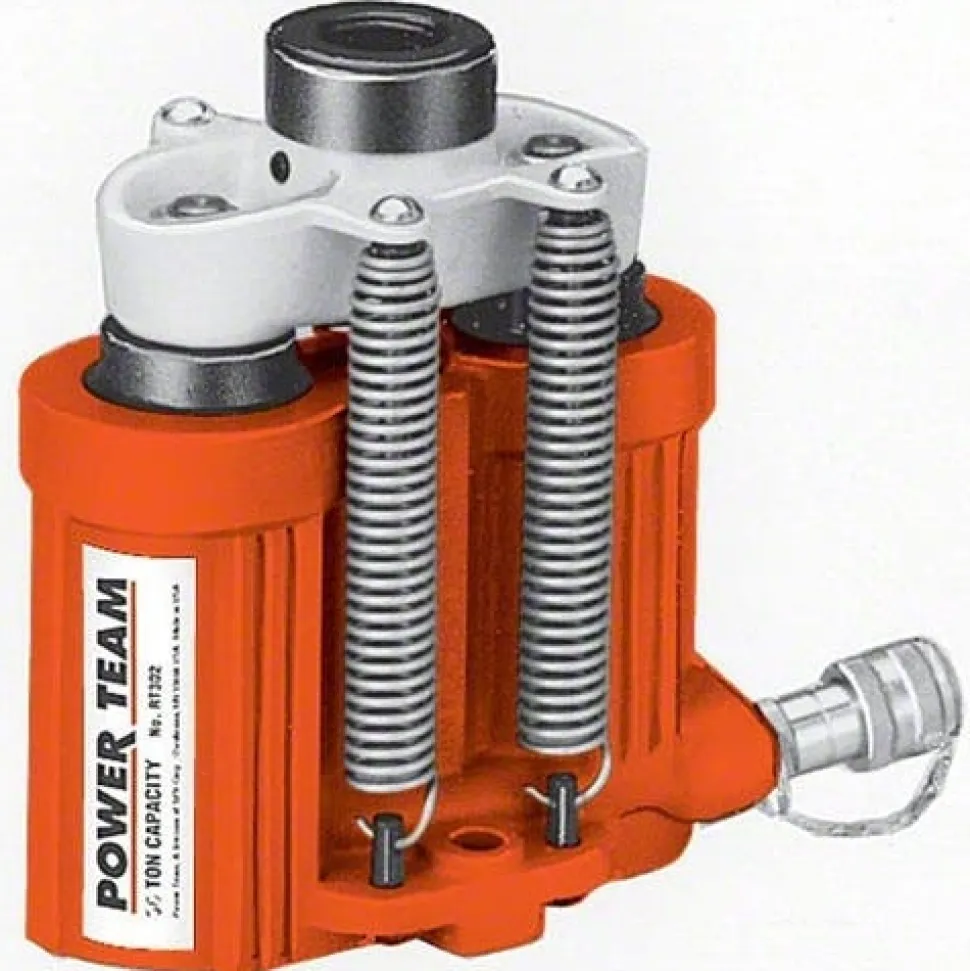

Power Team 30 Ton Hydraulic 2.5″ Dual Single Acting Cylinder Center Hole RT302

Power Team

30 Ton Hydraulic 2.5 Dual Single Acting Cylinder Center Hole RT302

FEATURES:

• Power Team
• IDEAL FOR PULLING AND PRESSING.
• A proven design; used throughout industry for over 45 years.
• Cylinders withstand full dead-end loads.
• Compact design; ideal for applications in which space is limited.
• Basic head can be changed from a tapped hole to plain hole by simply changing insert.
• Pistons have Power Tech treatment for corrosion and abrasion resistance.
• Order No. : RT302
• Cyl. Capacity (tons) Push: 30
• Stroke (in.) : 2 1/2
• Oil Cap. (cu. in.) Push: 15.7
• Oil Cap. (cu. in.) Return:
• Mounting Hole (in.) : 15/32
• Cyl. Eff. Area (sq. in.) : 6.28
• Int. Press at Cap. (psi) : 9;554
• Tons at 10;000 (psi) : 31.4
• Weight (lbs.) : 28.2
• Retracted Height (in.) : 8 7/16
• Extended Height (in.) : 10 15/16
• Outside Dia. (in.) : 4 1/4
• Outside Dia. (in.) : 7 1/2
• Load Cap Dia. (in.) : 2 1/4
• Load Cap Dia. (in.) : 1 1/4″7
• Center Hole Dia. (in.): 1 19/64
• Mounting Hole Location (in.): 1 13/16

“
