Power Team 30 Ton Hydraulic 10-1/8″ Double Acting Cylinder Center RH3010

Power Team SPX

Power Team 30 ton hydraulic 10-1/8 double acting cylinder center hole RH3010

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers. The 60 ton thru 200 ton steel models are equipped with removable carrying handles.

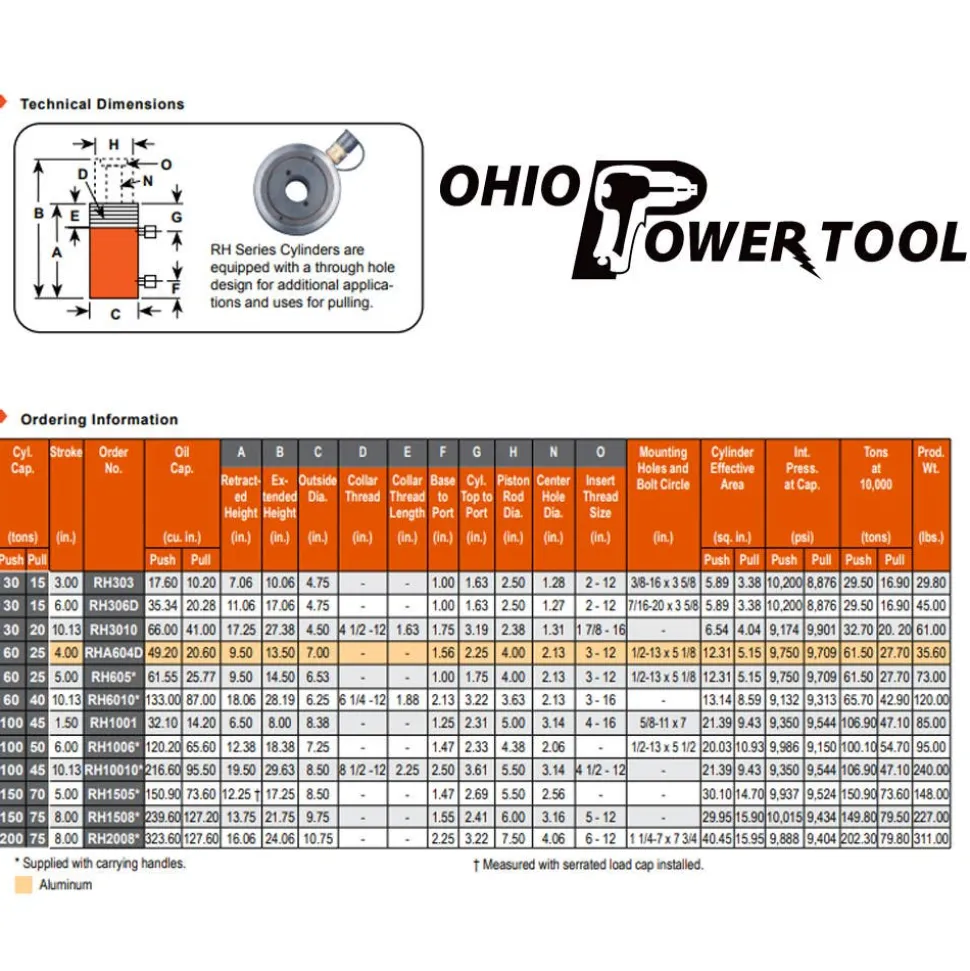

SPECIFICATIONS:

Stroke length:	10.125″
Piston rod diameter:	2.375″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	30 Ton
Pull capacity:	20 Ton
Oil capacity:	66.000″³
Pull/return oil capacity:	41.000³
Retracted height:	17.250″
Extended height:	27.375″
Effective area:	6.540″²
Pull cylindrical effective area:	4.040″²
Tons at 10;000 PSI:	32.70 Ton
Pull tons at 10;000 PSI:	20.20 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;901 PSI
Bore size:	2.886″
Base to port:	1.750″
Outside diameter:	4.500″
Center hole diameter:	1.313″
Insert thread size:	5-12
Collar thread:	4-1/2-12
Collar thread length:	1.625″
Cylinder top to diameter:	3.188″
Material:	Steel
Weight:	61.00lbs

“
