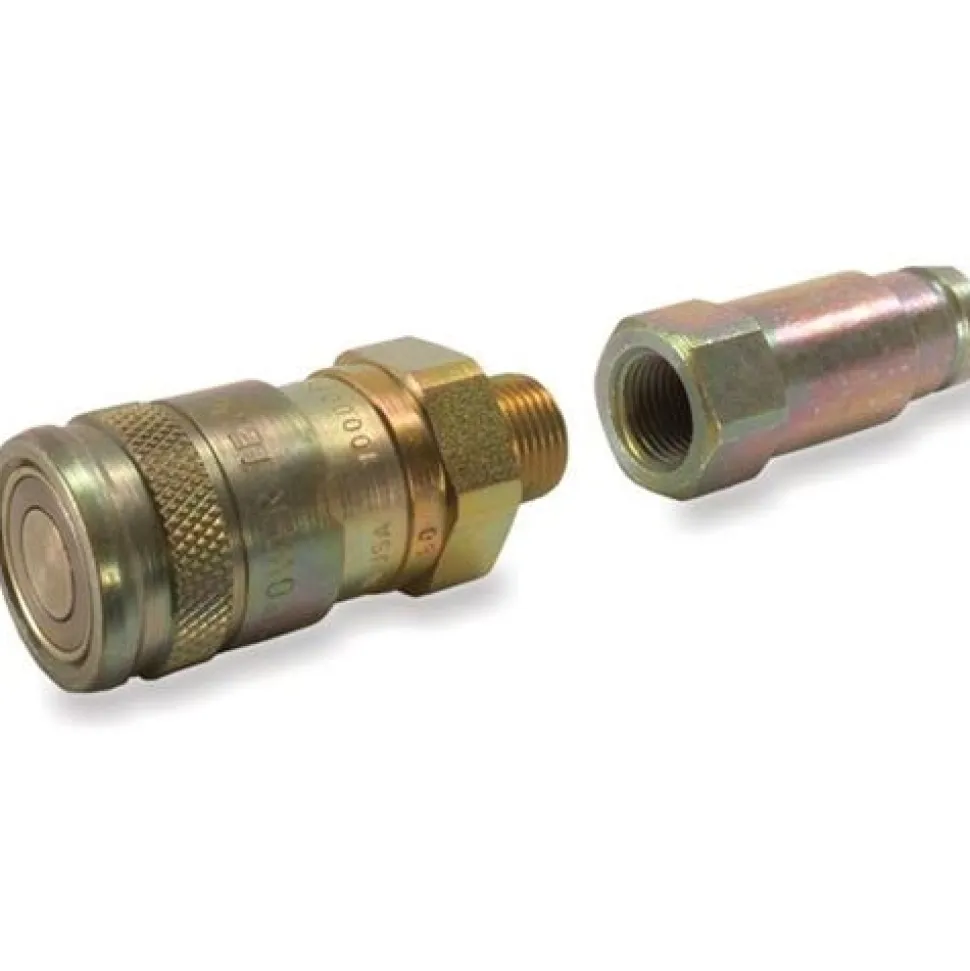

Power Team 3/8″ Hydraulic Quick Coupler Complete 9794

• Power Team SPX
• Threaded union for interchanging cylinders in seconds. Each half is valved with a a precision ball for a tight shutoff when disconnected.
• Designed for use up to 10;000 psi with hydraulic jacks; cylinders; etc.
• They are the threaded union type for interchanging cylinders in seconds.
• Each half is valved with a precision ball for a tight shutoff when disconnected.
• These couplers also permit the separation of cylinders or hose from pump when at 0 psi with minimal oil loss.
• Power Team recommends that the line pressure for connection / disconnection occurs ideally when the line is NOT pressurized when the 9794; 9792 and 9793 connector is in use.
• To Connect:
• Simply align the tip and body coaxially and smoothly push until the body sleeve slides forward; signaling connection. Rotate the sleeve 90 to engage the sleeve-lock to prevent accidential disconnection.
• To Disconnect:
• Align the notch in the body sleeve with the ball pressed into the outside surface of the body. Pull the sleeve back. The tip will eject from the body due to spring force. Manually pull the halves apart if they do not fully separate due to spring force alone. Disconnection under pressure must be avoided.

“
