Power Team 280 Ton Hydraulic 2" Single Acting Load Return Cylinder R2802C

Power Team 280 Ton Hydraulic 2″ Single Acting Load Return Cylinder R2802C

Original price was: $6,042.00.Current price is: $124.89.

SKU: SKUFiczknHGjN Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.

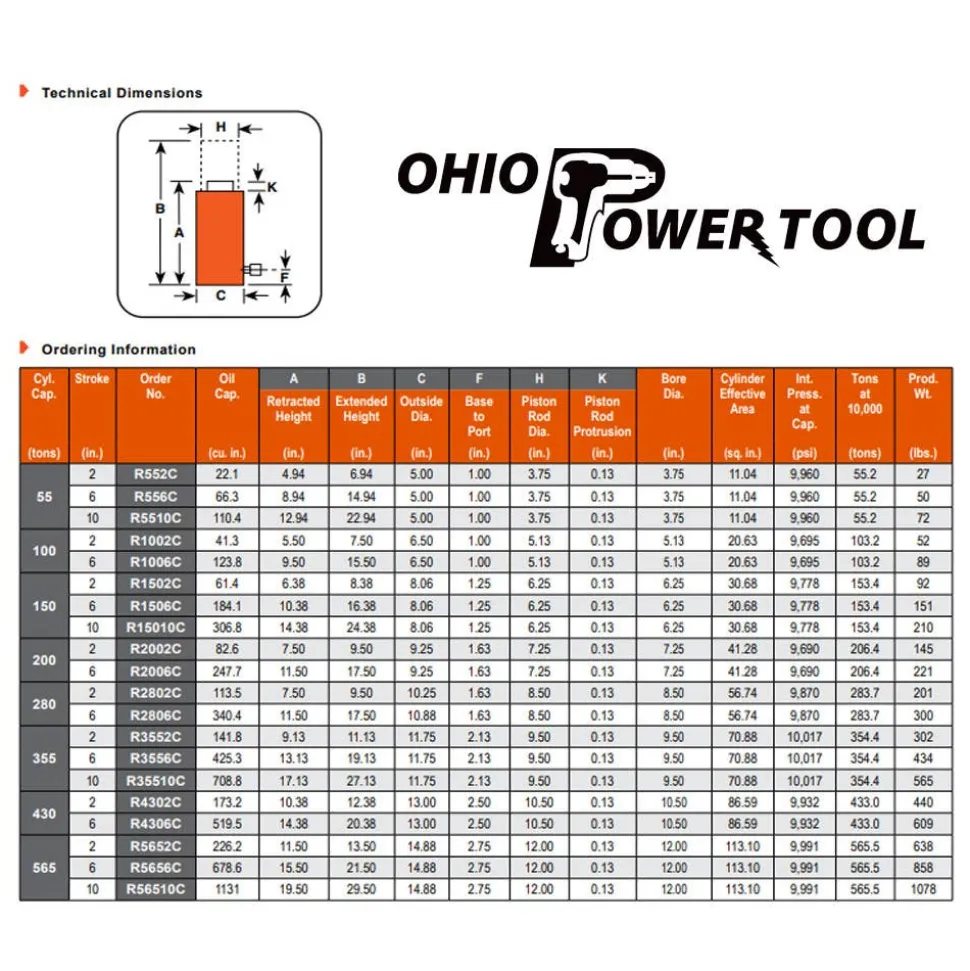

Order No. : R2802C
Cyl. Cap. (tons) : 280
Stroke (in.) : 2
Oil Cap. (cu. in.) : 113.5
Bore Dia. (in.) : 8 1/2
Cylinder Effective Area (sq. in.): 56.74
Internal Pressure at Cap. (psi): 9;870
Tons at 10000 (psi) : 283.7
Weight (lbs.) : 201
Retracted Height (in.) : 7 1/2
Extended Height (in.) : 9 1/2
Outside Dia. (in.) : 10 1/4
Base to Port (in.) : 1 5/8
Piston Rod Dia (in.): 8 1/2
Piston Rod Protrusion (in.): 1/8

Specifications

More Information
OPT SKU	PTR2802C
MPN	R2802C
UPC/GTIN	662536282260
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	2″
Tonnage	280-Ton
Shipping Weight	201.00
