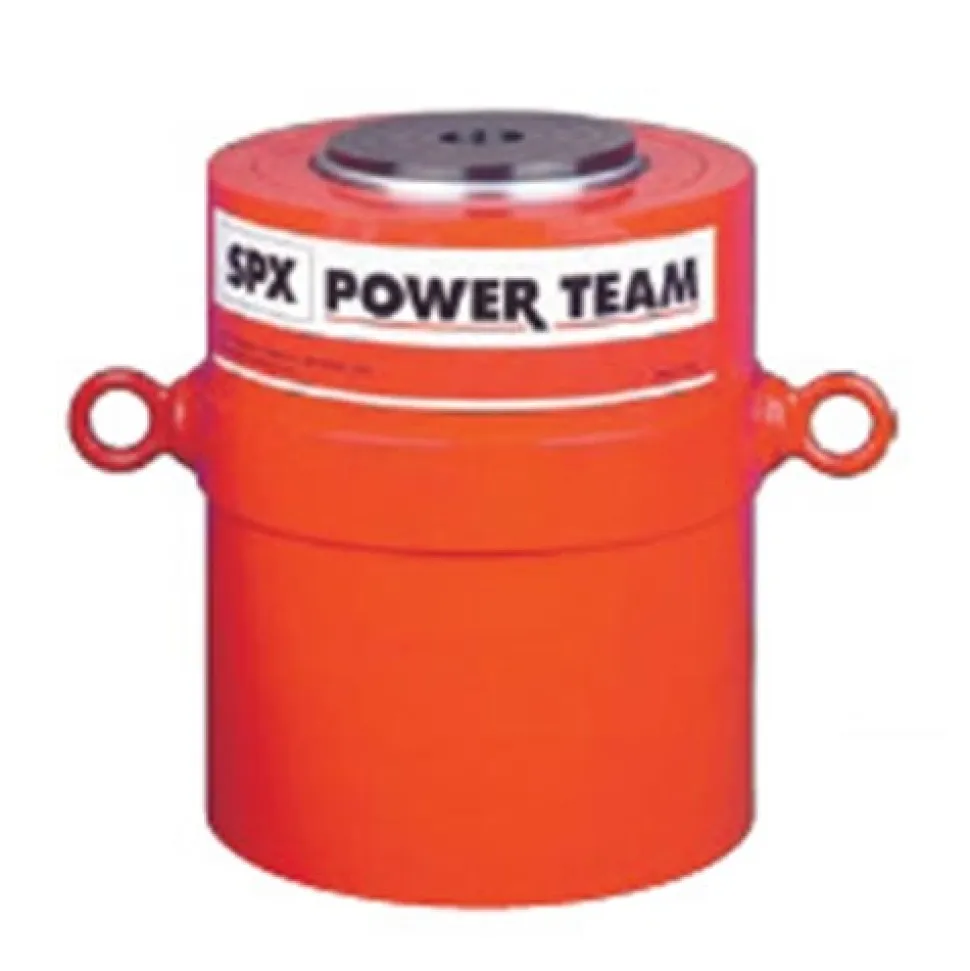

Power Team 280 Ton 6″ Stroke Hydraulic Return Cylinder R2806D

• Power Team
• Financing is available – Click here for details
• HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
• Cylinders come standard with swivel caps to reduce the effects of off-center loading.
• Cylinders may be dead-ended without damage.
• Hard chrome plated; heat treated piston rod reduces wear on piston and gland nut.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.

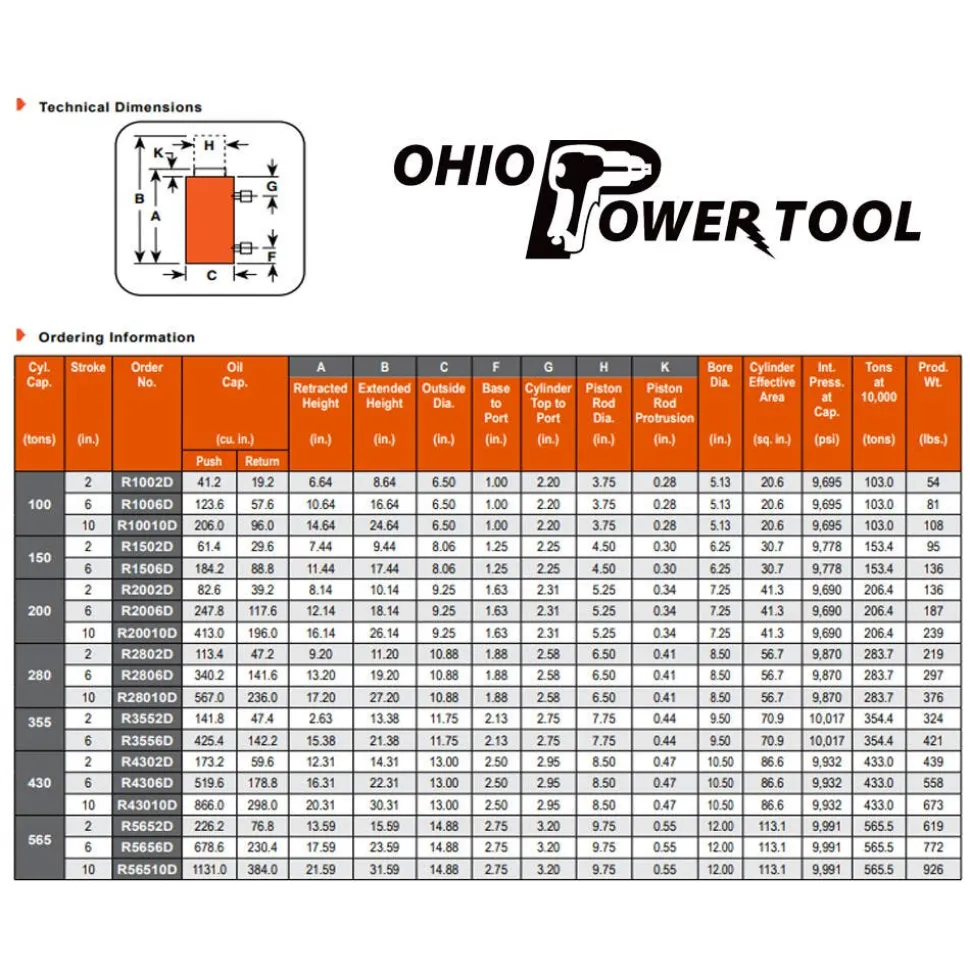

• Order No. : R2806D
• Cyl. Cap. (tons) : 280
• Stroke (in.) : 6
• Oil Capacity/Height (cu. in.) Push: 340.2
• Oil Capacity/Height (cu. in.) Return: 141.6
• Bore Area (in.) : 8 1/2
• Cylinder Effective Press. (sq. in.) Push: 56.7
• Internal Tons 10000 at Cap. (psi) Push: 9;870
• Tons at Wt. (psi) Push: 283.7
• Weight (lbs.) : 297
• Retracted Height (in.) : 13 13/64
• Extended Height (in.) : 19 13/64
• Outside Port (in.) : 10 7/8
• Base to Port (in.) : 1 7/8
• Cylinder Top to Dia. (in.) : 2 37/64
• Piston Rod Dia. (in.) : 6 1/2
• Piston Rod Protrusion (in.) : 13/32

“
