Power Team 25 Ton Hydraulic 6″ Double Acting Cylinder RD256

• Power Team
• HIGH TONNAGE PREMIUM DESIGN FOR HIGH CYCLE LIFE.
• Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance.
• Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion.
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage.
• Grooved ring pattern in load cap helps guard against load slippage.
• Each cylinder has two 9796 3/8 NPTF female half couplers.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Feature mounting holes and collar threads.

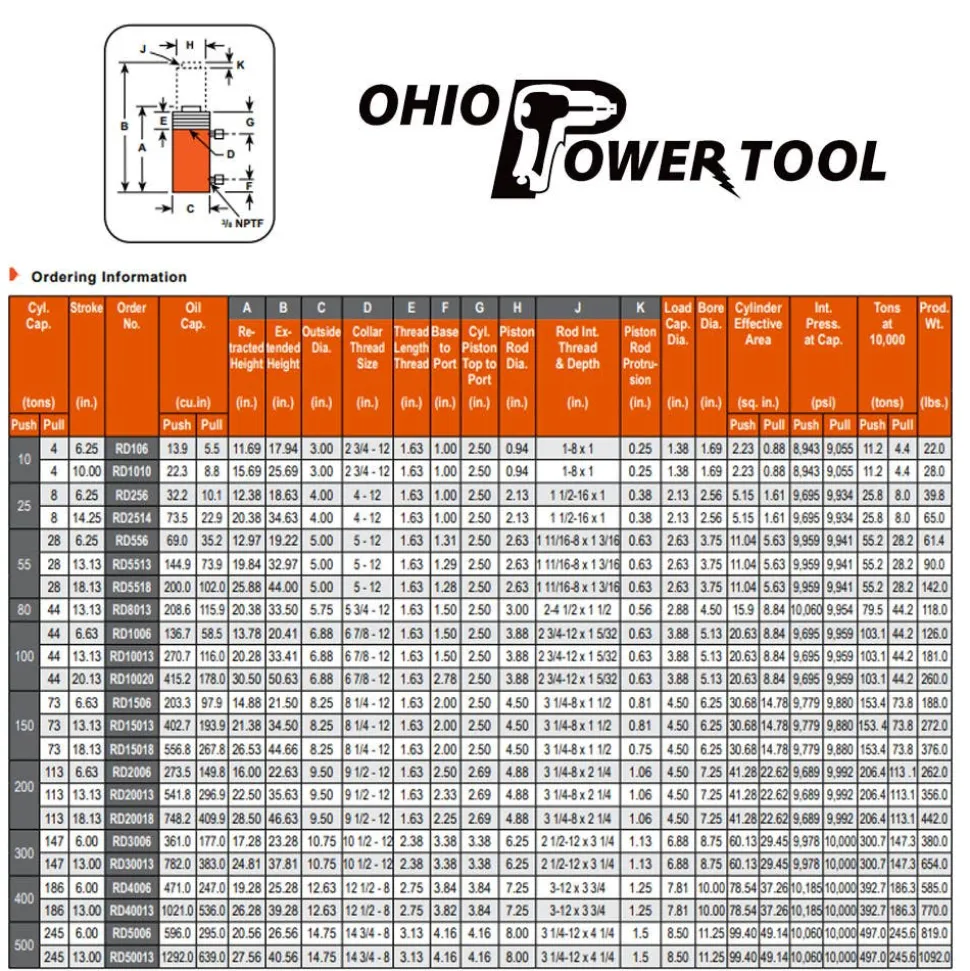

• Order No. : RD256
• Cyl. Cap. (tons) Push: 25
• Cyl. Cap. (tons) Pull: 8
• Stroke (in.) : 6 1/4
• Oil Capacity (cu.in) Push: 32.2
• Oil Capacity (cu.in) Pull: 10.1
• Load Cap Dia. (in.) : 2 1/8
• Bore Dia. (in.) : 2 9/16
• Cyl. Eff. Area (sq.in.) Push: 5.15
• Cyl. Eff. Area (sq.in.) Pull: 1.61
• Int. Press. at Cap. (psi) Push: 9;695
• Int. Press. at Cap. (psi) Pull: 9;934
• Tons at 10;000 psi Push: 25.8
• Tons at 10;000 psi Pull: 8
• Weight (lbs.) : 39.8

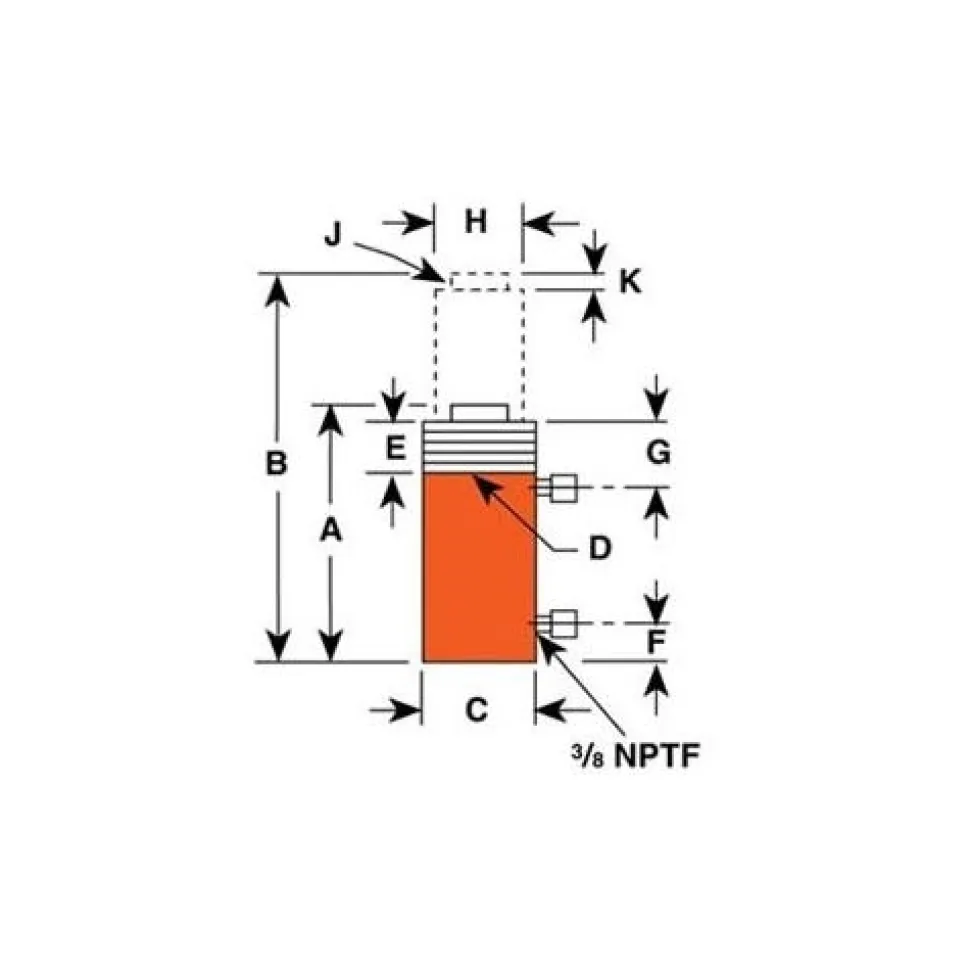

• Ret. Height (in.) : 12 3/8
• Ext. Height (in.) : 18 5/8
• Outside Dia. (in.) : 4
• Collar Thread Size (in.) : 4-12
• Thread Length Thread (in.) : 1 5/8
• Base to Port trusion (in.) : 1
• Cylinder Piston Top to Port (in.): 2 1/2
• Piston Rod Dia. Depth (in.) : 2 1/8
• Rod Int. and (in.) : 1 1/2-16×1
• Piston Rod Protrusion (in.) : 3/8

“
