Power Team 25 Ton Hydraulic 14″ Double Acting Cylinder RD2514
Original price was: $3,256.00.$124.99Current price is: $124.99.
Additional Details
Perfect for bridge lifting, building reconstruction, shipyard, utility and mining equipment maintenance. High tonnage premium design for high cycle life.
Features
- Aluminum bronze overlay bearings provide long life
- Chrome plated piston rod resist corrosion
- Load cap snaps out to expose internal piston rod threads for pulling applications. Threads withstand full tonnage
- Grooved ring pattern in load cap helps guard against load slippage
- Each cylinder has two 9796 3/8″ NPTF female half couplers
- Built-in safety relief valve prevents over-pressurization of the retract circuit
- Feature mounting holes and collar threads

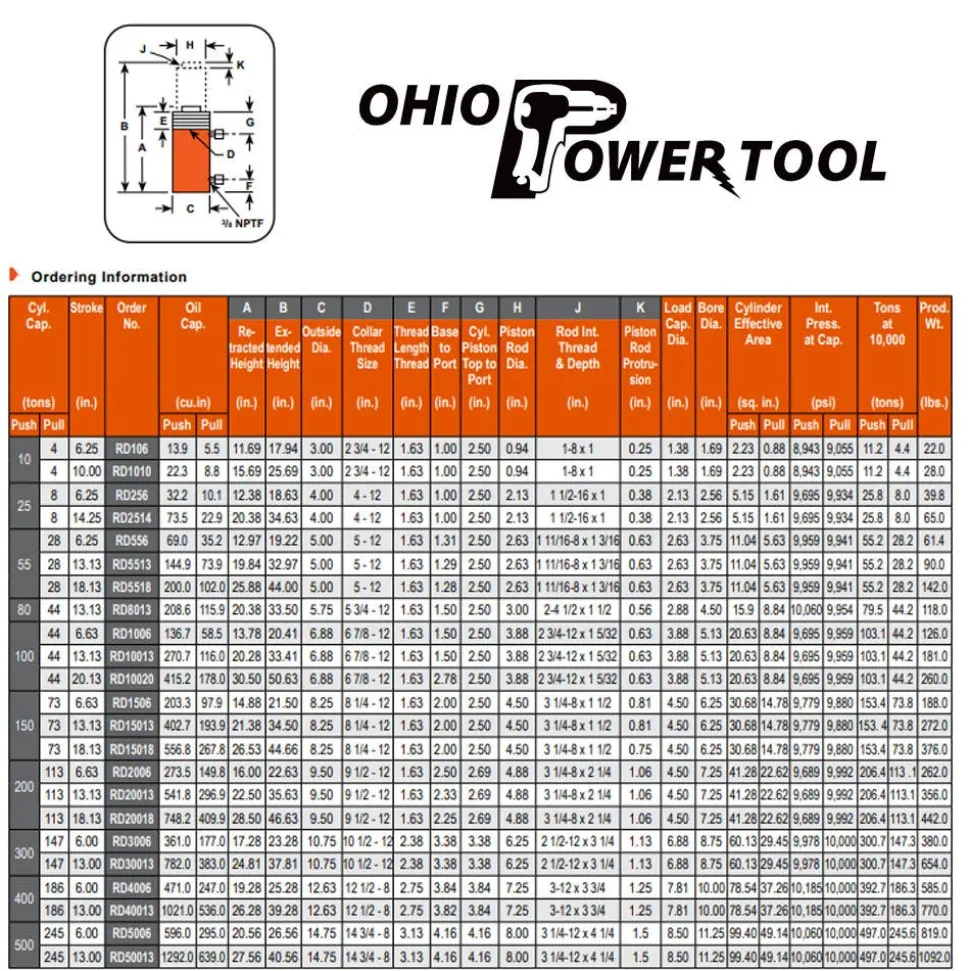

Manufacturer Specifications
| Tons at 10,000 – Push | 25.8 tons |
|---|---|
| Tons at 10,000 – Pull | 8.0 tons |
| Internal Pressure at Capacity – Push | 9,695 PSI |
| Internal Pressure at Capacity – Pull | 9,934 PSI |
| Oil Capacity – Push | 73.5 cu. in. |
| Oil Capacity – Pull | 22.9 cu. in. |
| Effective Area – Push | 5.15 sq. in. |
| Effective Area – Pull | 1.61 sq. in. |
| Bore Diameter | 2.56 in. |
| Outside Diameter | 4 in. |
| Retracted Height | 20.38 in. |
| Extended Height | 34.63 in. |
Specifications
| OPT SKU | PTRD2514 |
|---|---|
| MPN | RD2514 |
| UPC/GTIN | 662536002813 |
| Product Type | Cylinder Rams Double Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 14-1/4″ |
| Tonnage | 25-Ton |
| Shipping Weight | 78.00 |
