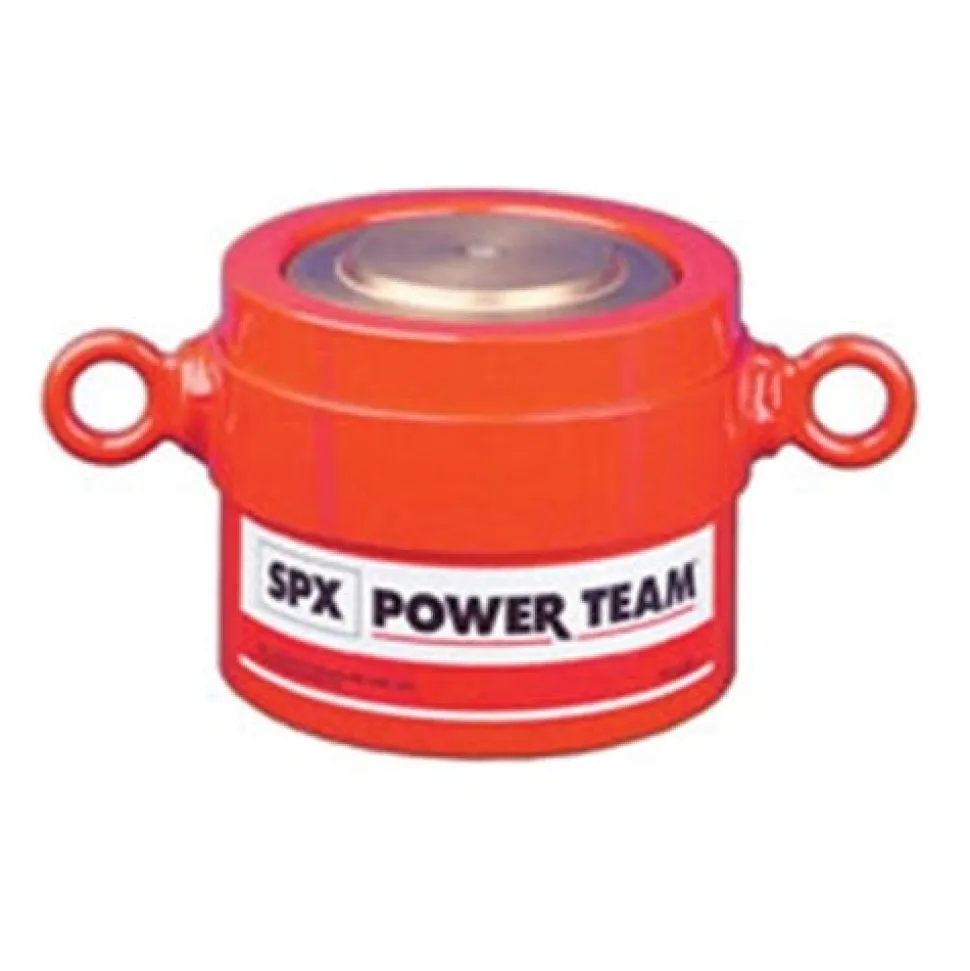

Power Team 200 Ton Hydraulic 2" Single Acting Load Return Cylinder R2002C

Power Team 200 Ton Hydraulic 2″ Single Acting Load Return Cylinder R2002C

Original price was: $4,546.00.Current price is: $120.89.

SKU: SKUAK5E9N5NFT Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.

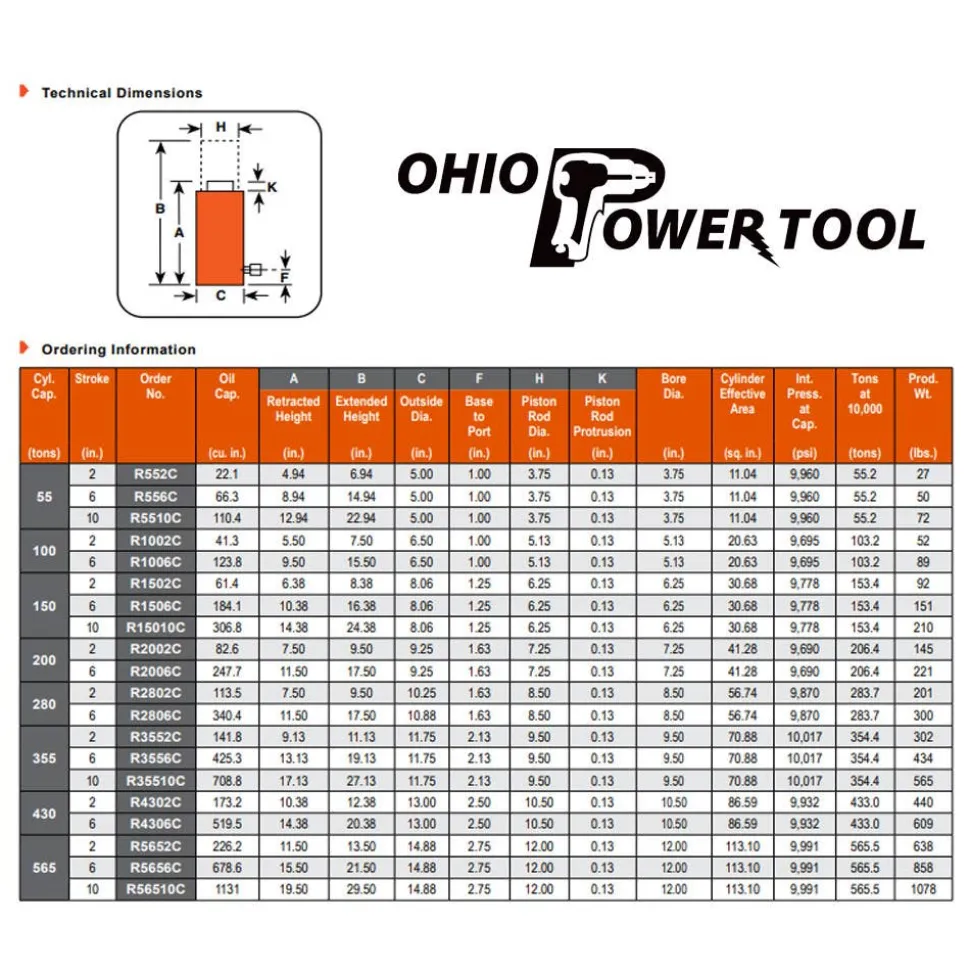

Order No. : R2002C
Cyl. Cap. (tons) : 200
Stroke (in.) : 2
Oil Cap. (cu. in.) : 82.6
Bore Dia. (in.) : 7 1/4
Cylinder Effective Area (sq. in.): 41.28
Internal Pressure at Cap. (psi): 9;690
Tons at 10000 (psi) : 206.4
Weight (lbs.) : 145
Retracted Height (in.) : 7 1/2
Extended Height (in.) : 9 1/2
Outside Dia. (in.) : 9 1/4
Base to Port (in.) : 1 5/8
Piston Rod Dia (in.): 7 1/4
Piston Rod Protrusion (in.): 1/8

Specifications

More Information
OPT SKU	PTR2002C
MPN	R2002C
UPC/GTIN	662536282239
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	2″
Tonnage	200-Ton
Shipping Weight	157.00
