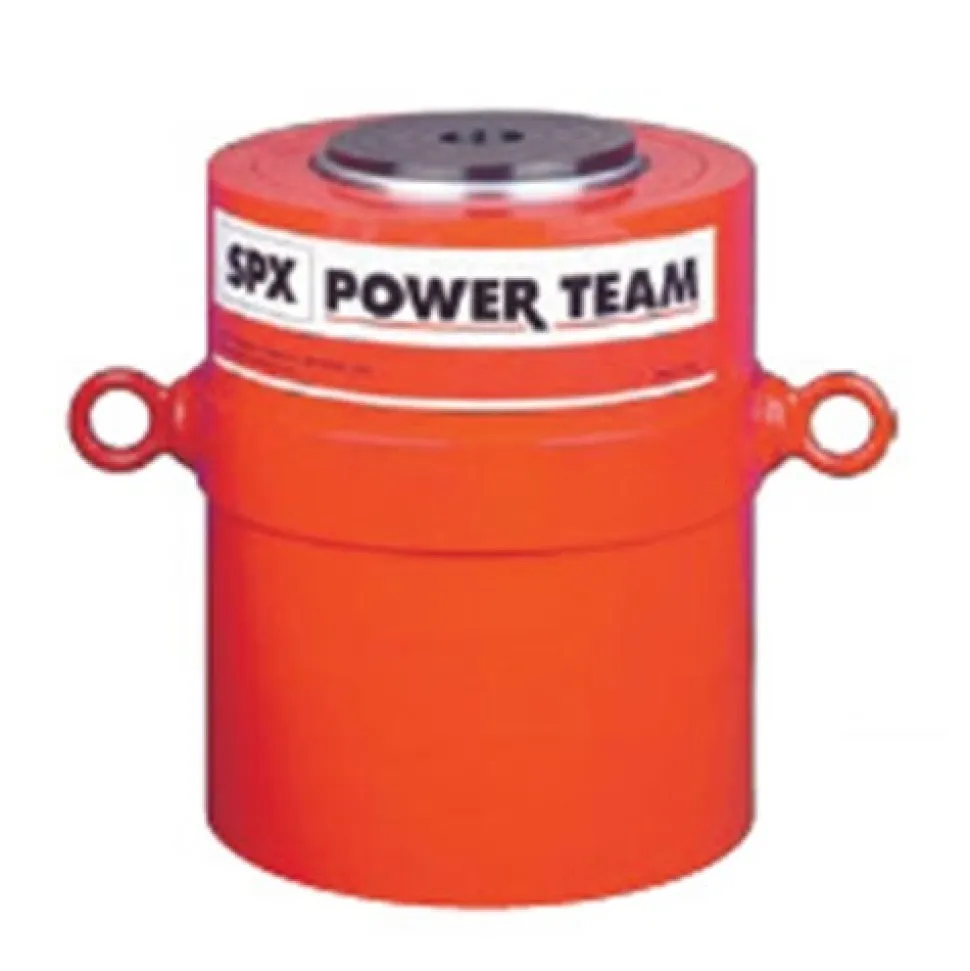

Power Team 200 Ton 10″ Stroke Hydraulic Return Cylinder R20010D

• Power Team
• Financing is available – click here for details
• HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
• Cylinders come standard with swivel caps to reduce the effects of off-center loading.
• Cylinders may be dead-ended without damage.
• Hard chrome plated; heat treated piston rod reduces wear on piston and gland nut.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.

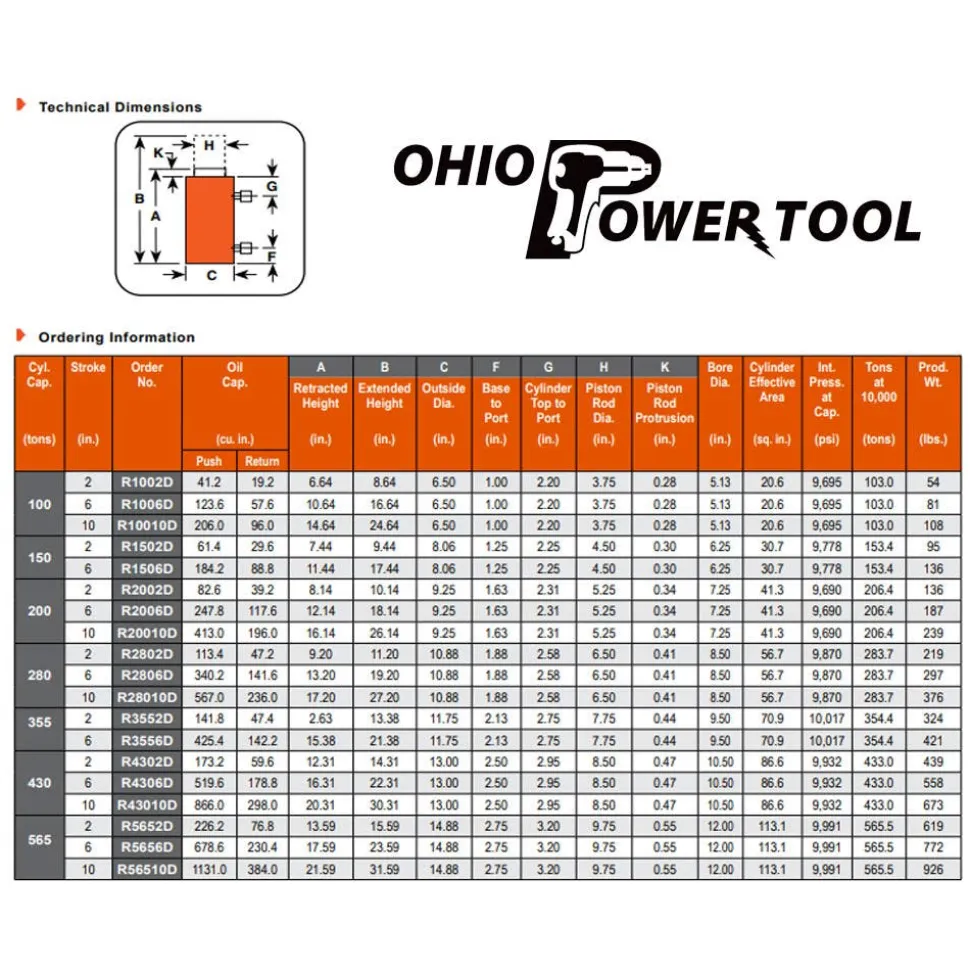

• Order No. : R20010D
• Cyl. Cap. (tons) : 200
• Stroke (in.) : 10
• Oil Capacity/Height (cu. in.) Push: 413
• Oil Capacity/Height (cu. in.) Return: 196
• Bore Area (in.) : 7 1/4
• Cylinder Effective Press. (sq. in.) Push: 41.3
• Internal Tons 10000 at Cap. (psi) Push: 9;690
• Tons at Wt. (psi) Push: 206.4
• Weight (lbs.) : 239
• Retracted Height (in.) : 16 9/64
• Extended Height (in.) : 26 9/64
• Outside Port (in.) : 9 1/4
• Base to Port (in.) : 1 5/8
• Cylinder Top to Dia. (in.) : 2 5/16
• Piston Rod Dia. (in.) : 5 1/4
• Piston Rod Protrusion (in.) : 11/32

“
